• Model NO.：ZHC
• Wire Scope：54.6-70mm2
• Body Material：Aluminum Alloy
• Cable Clamp Material：Nylon Plus Fiber Glass
• IEC Standard：NFC33-041
• Loading Capacity：1.5kn
• Transport Package：20PCS,Carton
• Specification：CE
• Trademark：ZHC
• Origin：China
• HS Code：85369090
• Production Capacity：200000PCS,Month

Basic Info.

Model NO. ZHC Wire Scope 54.6-70mm2 Body Material Aluminum Alloy Cable Clamp Material Nylon Plus Fiber Glass IEC Standard NFC33-041 Loading Capacity 1.5kn Transport Package 20PCS/Carton Specification CE Trademark ZHC Origin China HS Code 85369090 Production Capacity 200000PCS/Month

Product Description

Features of  Neutral Transmission Overhead Line Dead End  Strain Wedge Clamp

Material: High strength aluminum allloy, nylon plus fiber glass, stainless steel

Material: High strength aluminum allloy, nylon plus fiber glass, stainless steel

Product property: They are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp. They are in accordance with NFC 33-041

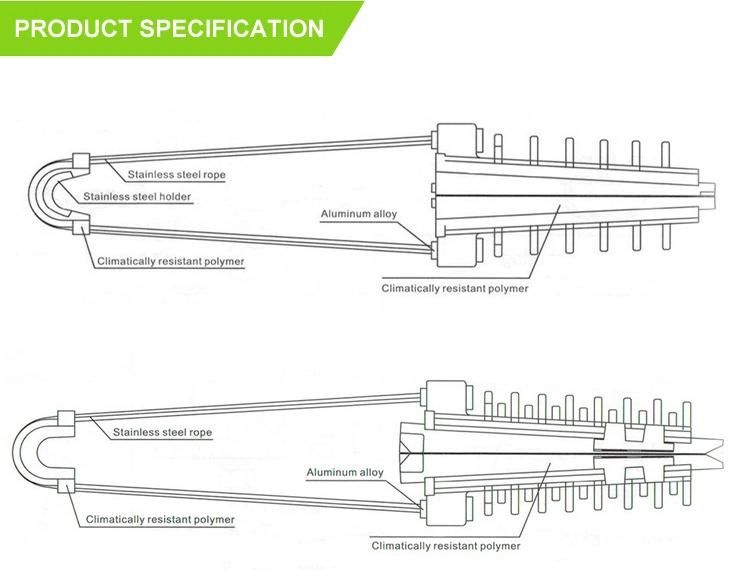

Drawings of  Neutral Transmission Overhead Line Dead End  Strain Wedge Clamp

Code	Material	Cross Section (mm2)	Breaking Load	Standard
PAM-06	Aluminum Alloy	16-20mm2	800N	NFC33041
PAM-07	Aluminum Alloy	16-25mm2	800N	NFC33041
PAM-08	Aluminum Alloy	16-25mm2	1KN	NFC33041
DR1500	Aluminum Alloy	54.6-70mm2	1.5KN	NFC33041
DR1600	Aluminum Alloy	54.6-70mm2	1.2KN	NFC33041
JBG-1	Aluminum Alloy	54.6-70mm2	1.2KN	NFC33041
STA	Nylon + Fibre glass	1x10/1x16 mm2	300N	NFC33041
STB	Nylon + Fibre glass	2x16/2x25mm2	300N	NFC33041
STC	Nylon + Fibre glass	4x16/4x25mm2	300N	NFC33041
STD	Nylon + Fibre glass	1x16/1x70mm2	300N	NFC33041
LA1	Nylon + Fibre glass	4x16/4x25mm2	300N	NFC33041
LA2	Nylon + Fibre glass	2x6/ 2x16mm2	300N	NFC33041
DCR-1	Nylon + Fibre glass	2x4/4x25mm2	300N	NFC33041
DCR-2	Nylon + Fibre glass	2x4/4x25mm2	300N	NFC33041
2.1	Nylon + Fibre glass	16-25mm2	300N	NFC33041
PA1500	Nylon + Fibre glass	25-50mm2	800N	NFC33041
PA2000	Nylon + Fibre glass	54.6-70mm2	800N	NFC33041
NES-B1	Mild Steel	4x16-50mm2	1.5KN	NFC33041
NES-B2	Mild Steel	4x25-120mm2	1.5KN	NFC33041
NES-B3	Mild Steel	4x25-120mm2	1.5KN	NFC33041
NES-B4	Mild Steel	4x95-150mm2	1.5KN	NFC33041
ZC116	Aluminum Alloy	4X25-35mm2	1.5KN	NFC33041
ZC117	Aluminum Alloy	4x50-120mm2	1.5KN	NFC33041
ZC118	Aluminum Alloy	4x50-120mm2	1.5KN	NFC33041
ZC157	Aluminum Alloy	2x16-35mm2	1.5KN	NFC33041
ZC158	Aluminum Alloy	4x16-35mm2	1.5KN	NFC33041
ZC160	Aluminum Alloy	2x16-35mm2	1.5KN	NFC33041
ZC161	Aluminum Alloy	4x16-35mm2	1.5KN	NFC33041

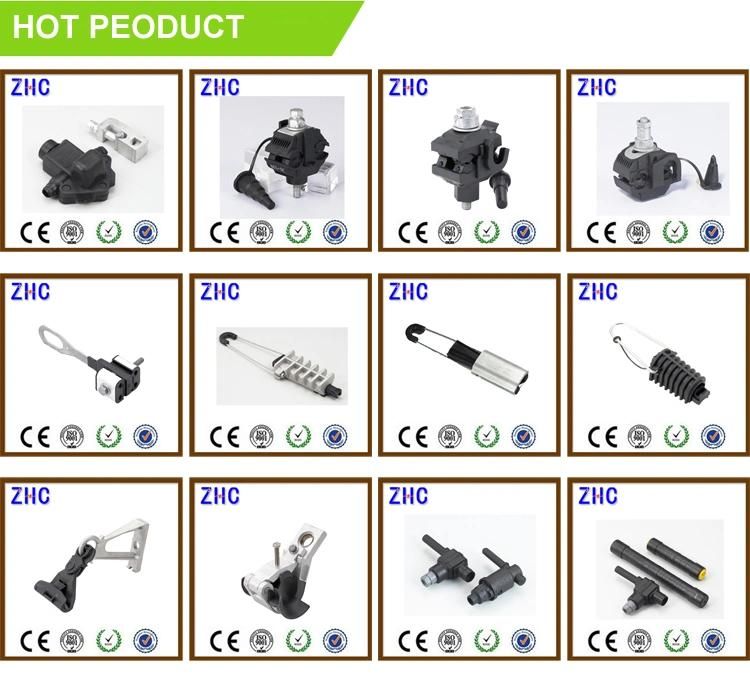

Similar  of  Neutral Transmission Overhead Line Dead End  Strain Wedge Clamp

Packing  of  Neutral Transmission Overhead Line Dead End  Strain Wedge Clamp

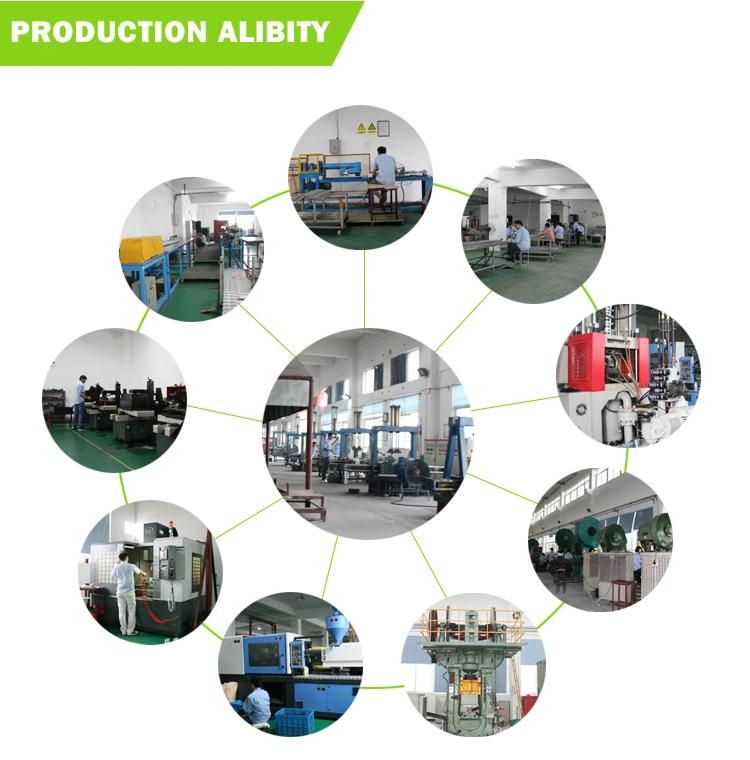

Product Ability  of  Neutral Transmission Overhead Line Dead End Strain Wedge Clamp

Certificate  of  Neutral Transmission Overhead Line Dead End Strain Wedge Clamp
