• Model NO.：GL-1049
• Color：Black
• Size：19 Intchs
• Connector Port：RJ45 Socket
• Transport Package：White Box
• Trademark：OEM
• Origin：China
• HS Code：8517709000
• Production Capacity：20000 Piece,Pieces , Month

Basic Info.

Model NO. GL-1049 Color Black Size 19 Intchs Connector Port RJ45 Socket Transport Package White Box Trademark OEM Origin China HS Code 8517709000 Production Capacity 20000 Piece/Pieces / Month

Product Description

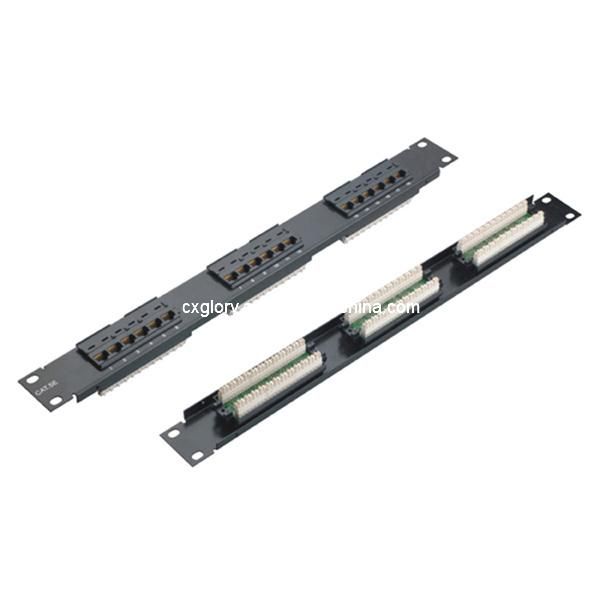

AMP TYPE 18 Port Cat. 5e Patch Panel:
1) Adopt Snap-in way to install; Its module disposition has higher flexibility
and suitability ; The window of the label is furnished with removable label
one, help users manage.
2) Cover material: pc UL94-VO.
3) Movable contact: Copper alloy.
4) Insulation Resistance: 10 MΩ min.; 1000V 60Hz, 1 Min.
5) Contact Resistance: initial 20 MΩ typical.
6) Operating Temperature Rang: -10 to 60
7) Scope of application:24-26AWG
8) Insertion Life: 700 cycles min
9) Plug/jack Contact Force:100g min.
10) Humidity:5 to 93%(noncondensing)
11) The Patch Panels are availble with 6/12/16/18 /24/48 ports
12) width:8.26cm(19 inch)
