• Model NO.：GL-4005
• IDC Body：Anti-Burn PC UL94V-0
• Connector Port：RJ45 Socket
• IDC Contact Pin：Gold-Plating
• Transport Package：White Box
• Trademark：OEM
• Origin：China
• HS Code：8517709000
• Production Capacity：20000 Piece,Pieces , Month

Basic Info.

Model NO. GL-4005 IDC Body Anti-Burn PC UL94V-0 Connector Port RJ45 Socket IDC Contact Pin Gold-Plating Transport Package White Box Trademark OEM Origin China HS Code 8517709000 Production Capacity 20000 Piece/Pieces / Month

Product Description

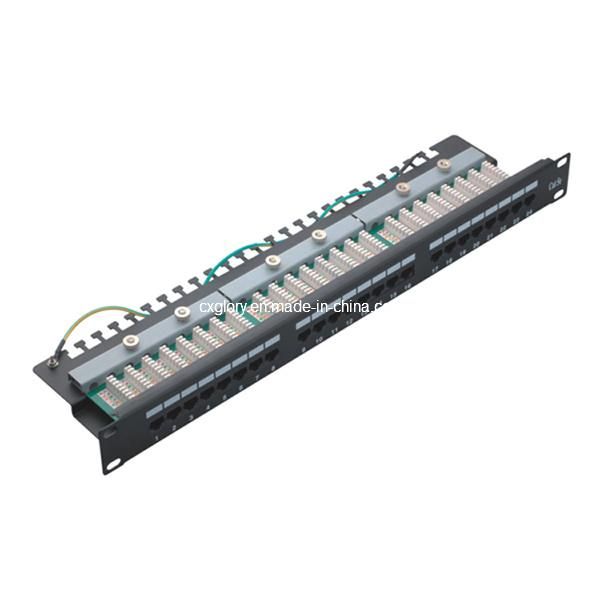

24 Port STP Patch Panel
A: Cat. 5e   B: CAT. 6
1.24 port STP Patch Panel
2. Design to mount to any standard 19" rack or cabinet.
3. Space saving, high-density 1U (24 port ).
4. L IDC contract material: Phosphor bronze with tin plating over nickel.
5.110& krone punch down tools are available.
6. Sturdy Aluminum Plate around RJ 45 Jacks
7. Phosphor bronze with 5-50 micro inches gold plated.
8. Available with T568 A. T568 B wiring pattern and meeting the requirement of Cat 5e standard.
9. Color Coded TIA/EIA 568A (international) and 568b (AT&T Standard) Wiring For Easy Installation
10. Termination accepts 22, 24 26 AWG (0.64, 0.5 and 0.4 )solid wires
11. Meet or exceed the requirement of ANSI /TIA/EIA 568B. 2
12. Metal sheet: Corrosion resistant streets.
13. Plastic: Fire self ¨ Cextinguish high impact plastic.
