• Model NO.：SHBDM-1
• Work Temperature：Static:-40 ~80
• Application：Oil and Gas, Petrochemical, Marine ,Drilling
• Transport Package：Export Standard
• Specification：M20-M80
• Trademark：GWIEC
• Origin：Zhejiang
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. SHBDM-1 Work Temperature Static:-40 ~80 Application Oil and Gas, Petrochemical, Marine ,Drilling Transport Package Export Standard Specification M20-M80 Trademark GWIEC Origin Zhejiang Production Capacity 1000PCS/Day

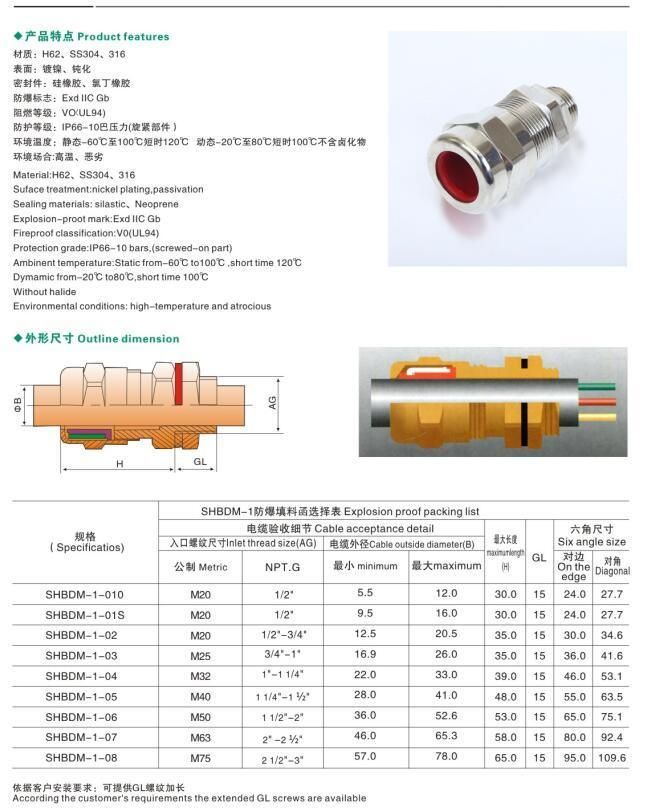

Product Description

Harsh and hazardous environments demand exceptional strength. We supply fully rangs of Indoor and outdoor Explosion proof Hazardous Cable Glands ,for Flameproof and Increase Safety,  Industrial,explosion proof,general purpose.

Cable type: Non-armoured cable,
           Armoured/braided cable with inner and outer sheath/
           Armoured/braided cable with inner lead sheath and outer sheath
           Armoured/braided cable with inner (optional) and outer sheath

Sealing/Ingress Protection:
           Outer cable sheath seal          IP66/67/68 Deluge
           Two outer cable sheath seals      IP66/67/68 Deluge
           Inner(diaphragm) and outer cable sheath seals    IP66/67/68 Deluge
           Inner and outer cable sheath seals  IP66/67/68 (Deluge option)
           Inner lead sheath seal/electrical bond and outer cable sheath seal (Deluge option)

Material: Brass  stainless steel

 Application: Drilling/Downstream oil and gas/Industrial and manufactring/Marine/Midstream oil and gas/mining/Pharmaceutical/power generation/Renewable energy/upstream oil and gas/water and wastewater


Ex-mark: Ex e II C ( V≤2000cm3)

Intended use: Can be used in zone 1 and zone 2
                       Can be used in zone 21 and zone 22
Ambient temperature use: -40°C≤Ta≤80°C
Degree of protection: IP66
Material: nickel plated brass
