Optical Fiber Distribution Frame 24 Fibers with Pigtail, Adapter (SC PC type) Full Load ODF, IP66, ISO SGS Certification

Qingdao Powtech Electronics Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Shape：Square
  • Color：White
  • Fire Rating：High
  • Material：PC+ABS
  • Type：Non Self-Adhesive

Base Info

  • Model NO.：ODF-024+WX+SPQ
  • Adapter Port：FC,LC,Sc
  • Size：310*235*100mm
  • Wall Type：16 Core
  • Customized：Customized
  • Condition：New
  • Transport Package：Export Carton Package or as Per Customer′s Request
  • Specification：CE, RoHS, SGS, ISO
  • Trademark：Powtech
  • Origin：China
  • HS Code：8543709990
  • Production Capacity：2000PCS,Month

Description

Basic Info.

Model NO. ODF-024+WX+SPQ Adapter Port FC/LC/Sc Size 310*235*100mm Wall Type 16 Core Customized Customized Condition New Transport Package Export Carton Package or as Per Customer′s Request Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 8543709990 Production Capacity 2000PCS/Month

Product Description

ODF Optical Fiber Distribution Frame 24 Fibers With Pigtail,Adapter(SC/PC type) IP66,ISO,SGS Certification
Optical Fiber Distribution Frame 24 Fibers with Pigtail, Adapter (SC PC type) Full Load ODF, IP66, ISO SGS Certification
Optical Fiber Distribution Frame 24 Fibers with Pigtail, Adapter (SC PC type) Full Load ODF, IP66, ISO SGS Certification
Optical Fiber Distribution Frame 24 Fibers with Pigtail, Adapter (SC PC type) Full Load ODF, IP66, ISO SGS Certification
Optical Fiber Distribution Frame 24 Fibers with Pigtail, Adapter (SC PC type) Full Load ODF, IP66, ISO SGS Certification
Optical Fiber Distribution Frame 24 Fibers with Pigtail, Adapter (SC PC type) Full Load ODF, IP66, ISO SGS Certification
Description:

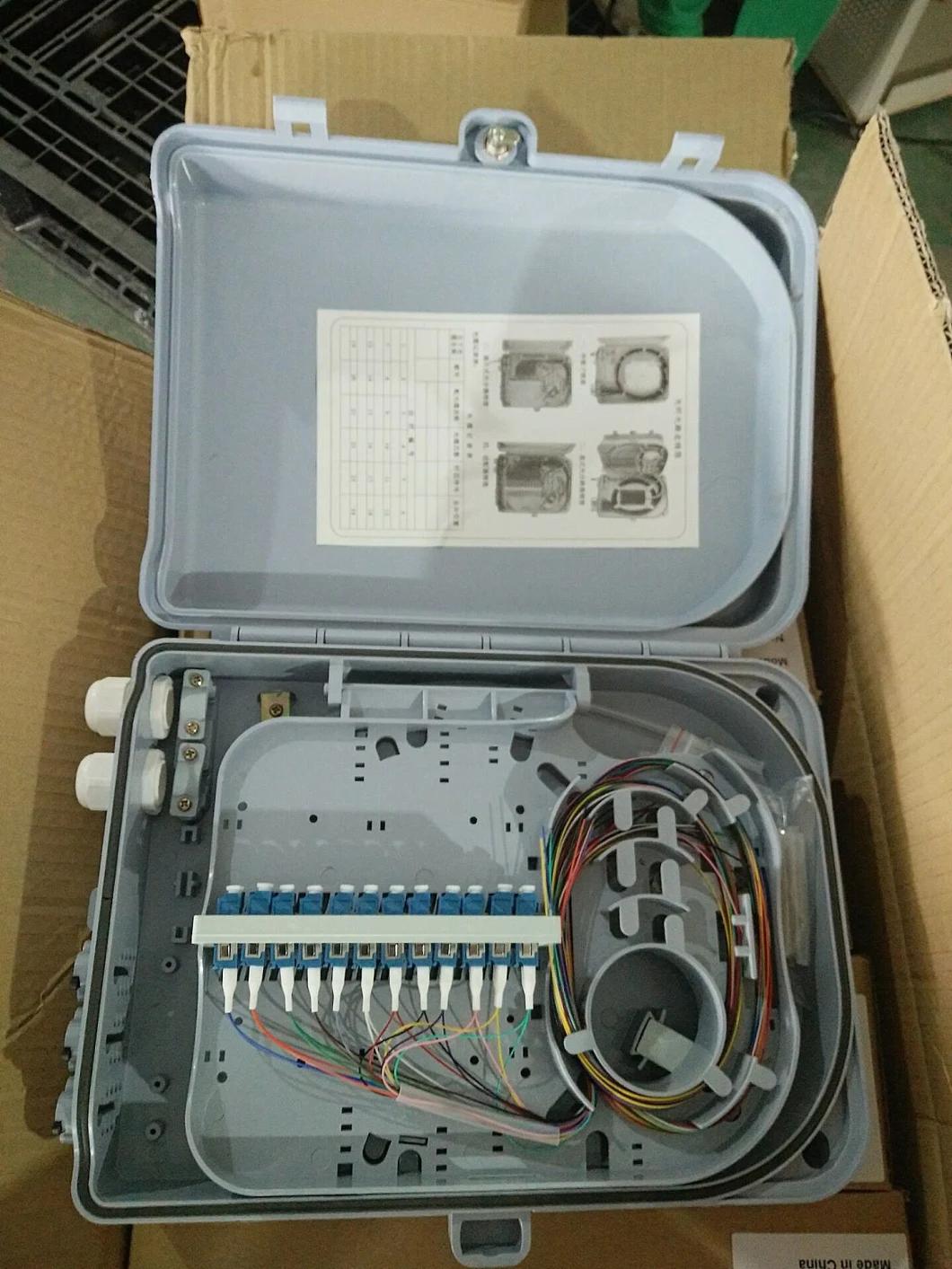

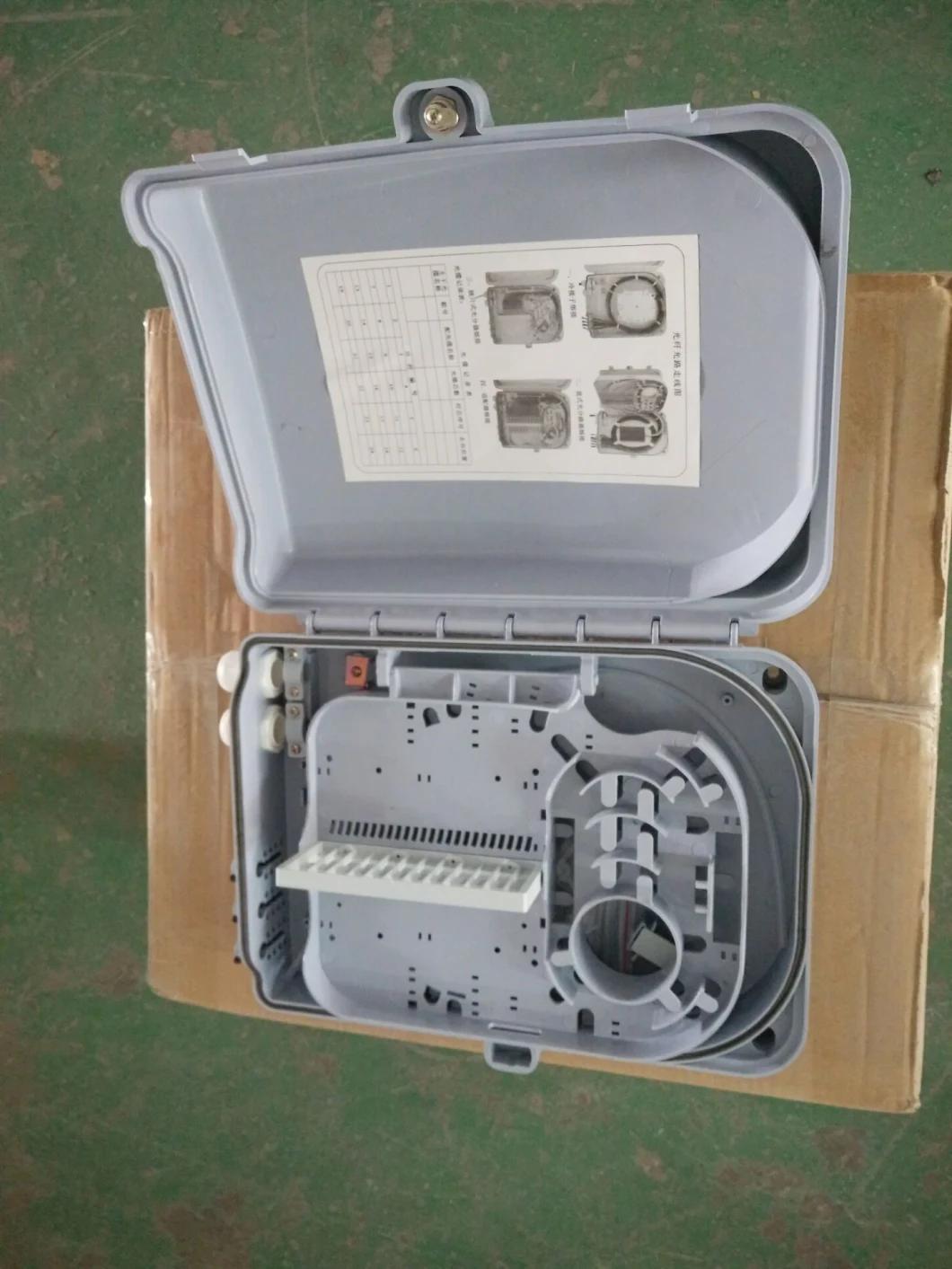

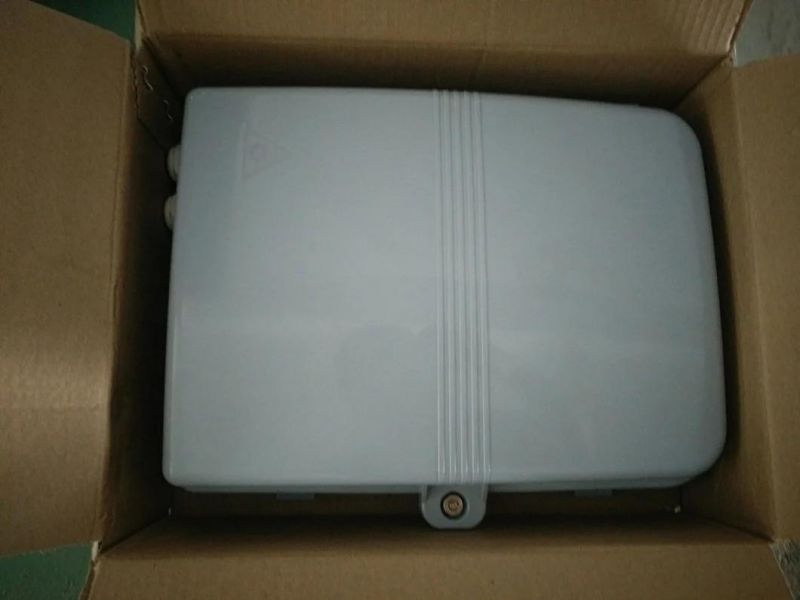

The fiber optic distribution box is widely used as a termination point for the feeder cable to connect with drop cable.The fiber splicing, splitting, distribution can be implemented in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features:
1.Complete close structure
2.The material of this box is PC + ABS which can prove more than 10 years working life and wet-proof, water-proof, dust-proof, anti-aging and the protection level is up to IP65.
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution in one.
4. Cable, pigtail, patch cords are running through own path without disturbing each other, cassette type  SC/LC/PLC adapter installation, easy maintenance.
5.Distribution panel can be filled up, feeder cable can be place in a cup-joint way, easy for maintenance and installation.
6.Cabinet can be installed by the way of wall-mounted suitable for both indoor and outdoor uses.

Specification:
1. Enviromental requirement
Working temperature:-40ºC~+85ºC Relative humidity:≤85%(+30ºC)
Atmosphere pressure:70Kpa~106Kpa

2. Main technical datas:
Insert loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Life of insertion and extraction: >1000 times

3. Thunder-proof technical datas:
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MΩ/500V(DC); Insulation resistance≥2x104MΩ/500V.
The withstand voltage between grounding device and cabinet is no less than 3000V (DC)/min, no puncture, no flash-over, U≥3000V.

Technical data sheet:
Modulo NoODFA-16L
Dimension310*235*100mm
InstallationWall/ Pole mounting
IP RateIP65
Cable EntriesWater-proof connector/ Supporting uncout(With branch holes)
No.of Adapter&Splitter16pc SC adapter/16pc double LC/1pc 1*16 drawer PLC
/1pc2*8 drawer PLC
Certificate:
Optical Fiber Distribution Frame 24 Fibers with Pigtail, Adapter (SC PC type) Full Load ODF, IP66, ISO SGS Certification
Why choose us?
1. Strict quality control system (ISO, SGS, IEC certified)

2. Factory direct-sales, lower purchasing cost

3. Professional and Efficiency (one-stop professional solution for your project to save your time and cost)

4. Experienced workers team, advanced technicians, sophisticated equipment

5. Small trial order/OEM product/artwork is acceptable

6. ADSS/OPGW cable, cable accessories supplier for 20 years from China, ISO certificated

FAQ

Q1: Can u provide us with samples?
Powtech answer: Yes, we can provide 1-2 pieces free samples, but u should pay express cost or u provide us with express account number.

Q2: If we need customized/OEM product, can u supply?
Powtech answer: Yes, customized/ OEM product/ artwork is available for us. Professional designers, advanced technicians and mold modifications department ensure that we will make the exact model for u accordingly.

Q3: If u can accept small trial order?
Powtech answer: Yes, small trial order can be available also, but u should pay 100% T/T down payment before production.

Q4: What payment terms available for u?
Powtech answer: If order amount less than 10000 USD, 100% T/T; if amount more than 10000 USD, 30% T/T in advance plus 70% T/T before shipment. U can place an order via Alibaba website, which is also very safe and has payment protection for you.

Q5: Can u offer discount ?
Powtech answer: Yes, discount available on large order. The larger the order, the more discount we will offer.

Q6: What is ur delivery time?
Powtech answer: Usually, delivery will be made within 2 weeks after down payment. If order very large, one month we will need. Please note, delivery time is production, shipping time not included. If you want to know, we can help u consult shipping company for details.
