ADSS Cable Helical Spiral Vibration Damper
Qingdao Powtech Electronics Co., Ltd.- Name：Spiral Vibration Damper
- Cable Diameter(mm：4.40-19.30
- Transport Package：Wooden Packing
- Specification：CE
- Trademark：Powtech
- Origin：China
Base Info
- Model NO.：FTL-11
- HS Code：73089000
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. FTL-11 HS Code 73089000 Production Capacity 10000PCS/MonthProduct Description

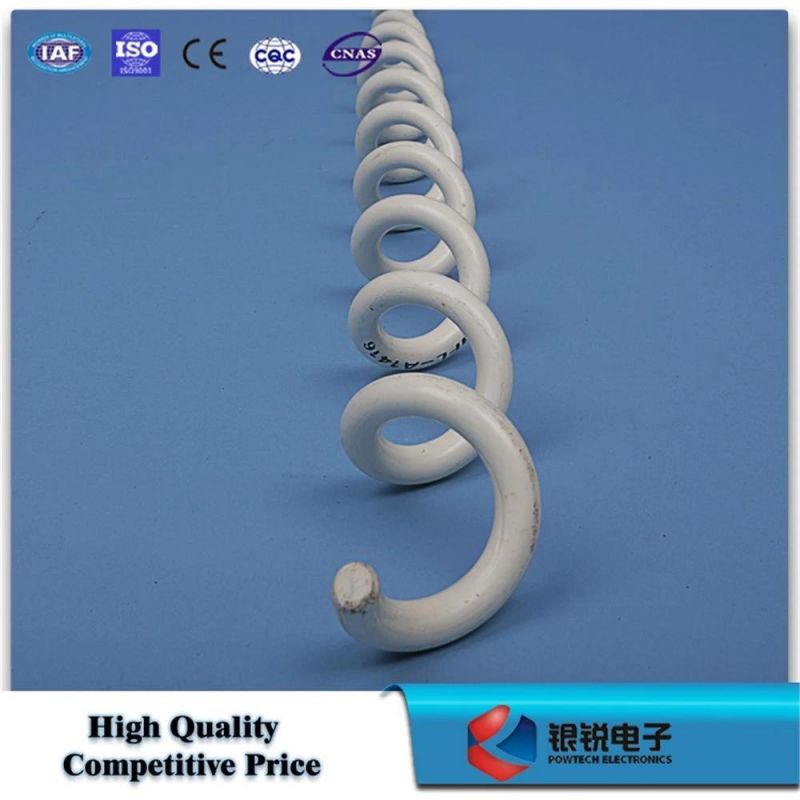

ADSS Cable Helical Spiral Vibration Damper
Description:
Spiral vibration damper is made of high-strength, antigenic and high-elasticity PVC plastic, easy to install and operate. It's an interference type damper to attenuate vibration amplitude by impact with its damping section and especially designed for ADSS cable and OPGW cable of diameter less than 12mm.
Technical Data sheet:
| Model | Cable Diameter(mm) | PVC wire(mm) | Total Length(mm) | Gripping Length(mm) | Weight(kg) |
| FTL-6 | 4.40-6.30 | 12.8 | 1160 | 150-200 | 0.24 |
| FTL-8 | 6.35-8.30 | 12.8 | 1240 | 170-220 | 0.26 |
| FTL-11 | 8.30-11.70 | 12.8 | 1300 | 250-300 | 0.28 |
| FTL-14 | 11.71-14.30 | 12.8 | 1350 | 250-300 | 0.30 |
| FTL-16 | 14.31-19.30 | 15.8 | 1640 | 330-350 | 0.63 |

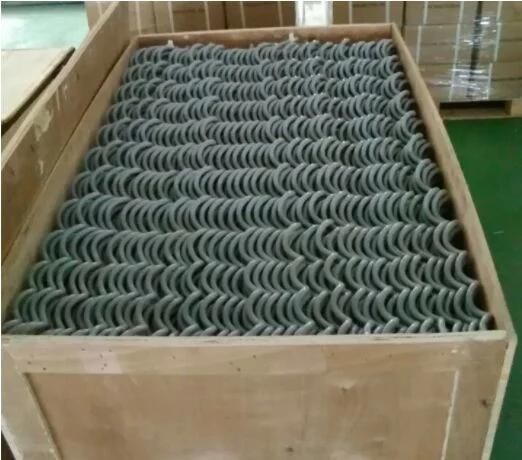

Package&Shipment:
