O Type Suspension Sets for ADSS Cable 100~200m Span
Qingdao Powtech Electronics Co., Ltd.- Certification：RoHS, ISO, CE
- Color：Black
- Surface Treatment：Galvanised
- Usage：Electrical Appliance, Overhead Fiber Cable
- Material：Galvanized Steel Wire
- Type：O Type
Base Info
- Model NO.：AQXY
- Customize：Yes
- Transport Package：Export Packing
- Specification：SGS
- Trademark：Powtech
- Origin：China
- HS Code：7326
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. AQXY Customize Yes Transport Package Export Packing Specification SGS Trademark Powtech Origin China HS Code 7326 Production Capacity 10000PCS/MonthProduct Description
Special Design O Type Suspension Sets for ADSS cable 100~200m Span

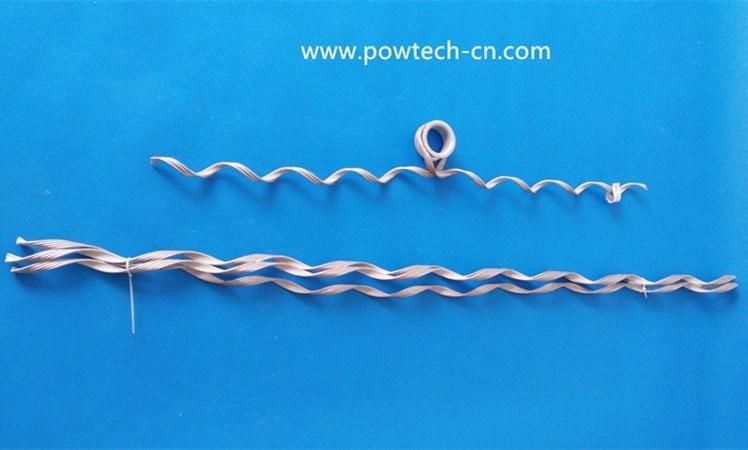

Configuration:
1. O-shaped ring

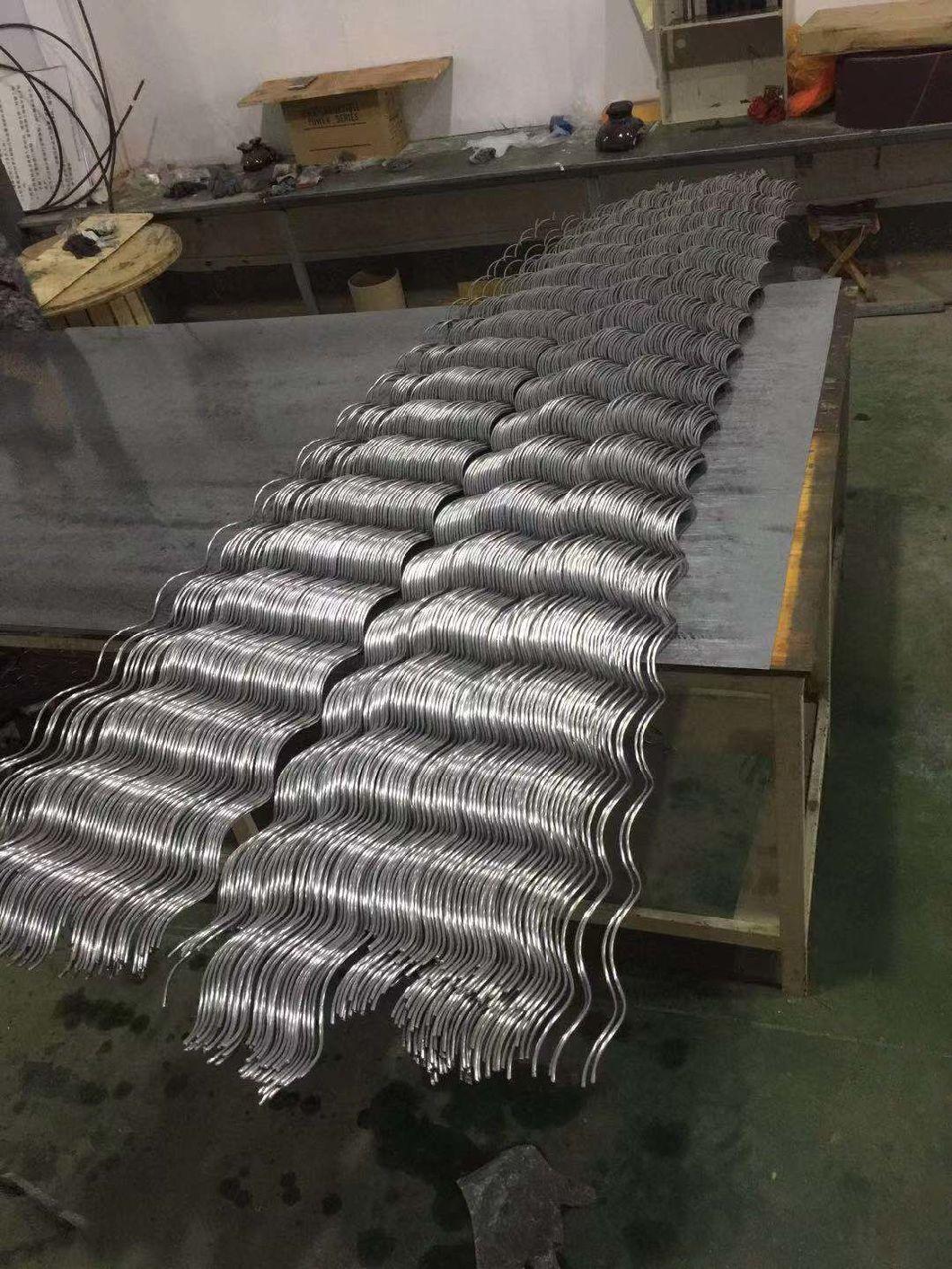

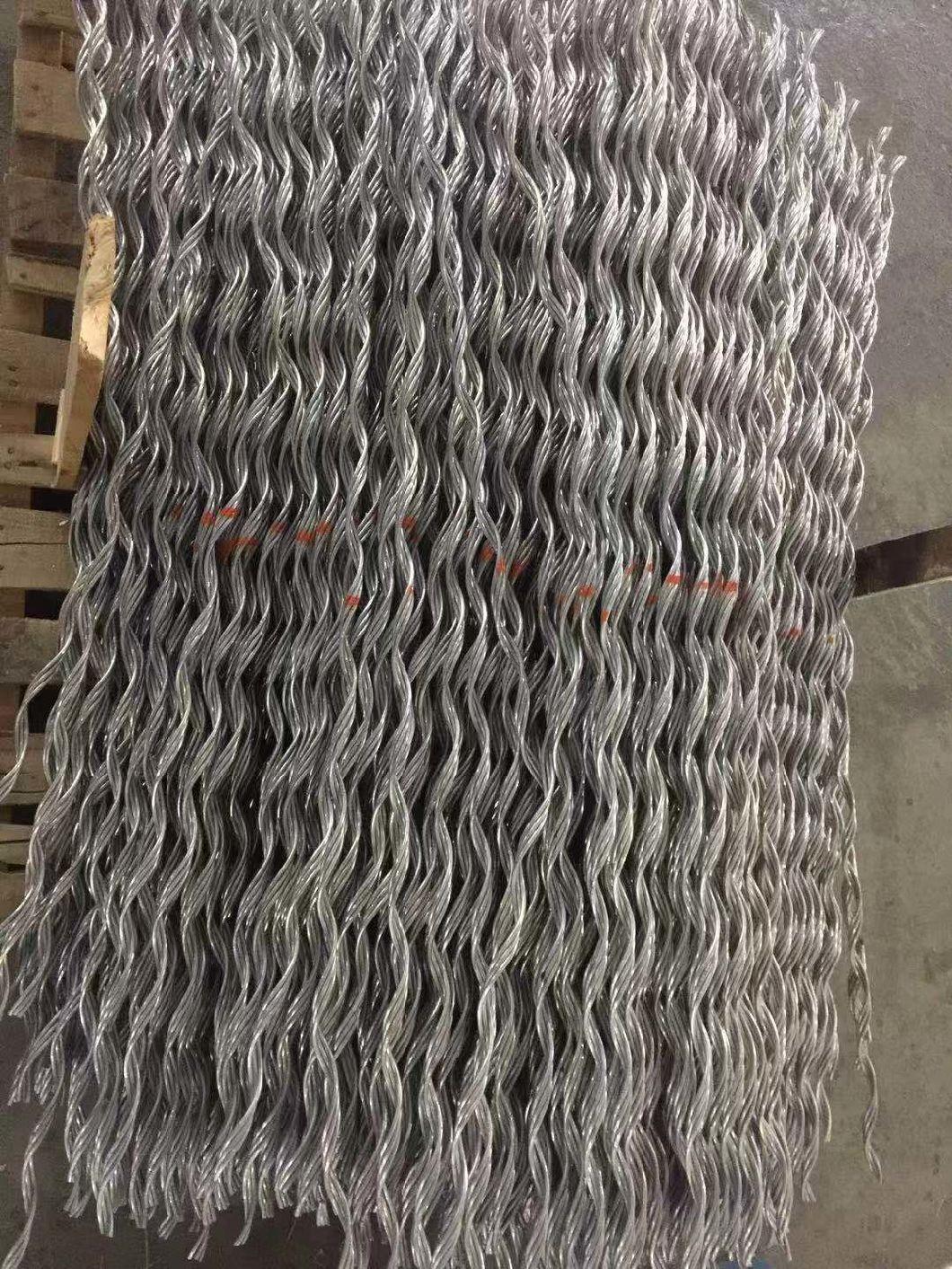

2. Reinforcing rod
3. Dead-end rod
Features:
The simple suspension sets are designed to connect ADSS cable to pole/tower in straight line. They feature in handiness, ease with certain load capacity to resist moving.
Application:
(1) The span should be less than 200m
(2) The poles/towers with corner angle less than 15degree
(3) It's mainly designed for ADSS cable which are constructed on the same poles with 10KV electric power for the city zones.
Technical Data Sheet:
Maximum Tension Strength: ≥20kN
Slip strength: ≥5kNRecommended span length: 100~200m
| Model | Cable Diameter(mm) | Preformed Dead End Length(mm) | Reinforcing Rods Length(mm) |
| AQXY-100-* * | 9.4~15.0 | 800 | 1000 |
| AQXY-100-* * | 15.1~18.5 | 800 | 1200 |
| AQXY-200-* * | 9.4~15.0 | 1000 | 1200 |
