Cable Accessories / ADSS Suspension Clamp 100m Span
Qingdao Powtech Electronics Co., Ltd.- Certification：RoHS, ISO
- Color：White
- Surface Treatment：Galvanised
- Usage：Electrical Appliance
- Material：Aluminum Alloy
- Type：Suspension Clamp
Base Info
- Model NO.：AQXM
- Transport Package：Wooden Case
- Specification：CE, RoHS, SGS, ISO
- Trademark：Powtech
- Origin：China
- HS Code：76109090
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. AQXM Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 76109090 Production Capacity 10000PCS/MonthProduct Description
ADSS Suspension Clamp 100m SpanDescription:
The aluminium suspension clamp is designed to gently, but firmly support ADSS cable. The AQXM suspension clamp features the following : band mount design, hinged keeper, single-bolt clamping, and stackability for multi-cable installations.
Configuration:
| S.No | Description | Qty | Material |
| 1 | Keeper | 1 | Aluminium alloy |
| 2 | Cushion inserts | 1 | Synthetic rubber |
| 3 | Captured bolt & washer | 1 | Stainless Steel |
| 4 | Lock nut | 1 | Stainless Steel |
Data sheet:
| Model | Max span length | RTS | Weight(kg) |
| AQXM200 | 200m | 40KN | 1.1 |

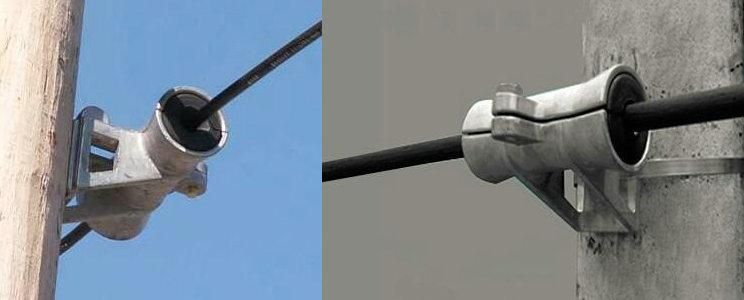

Installation:

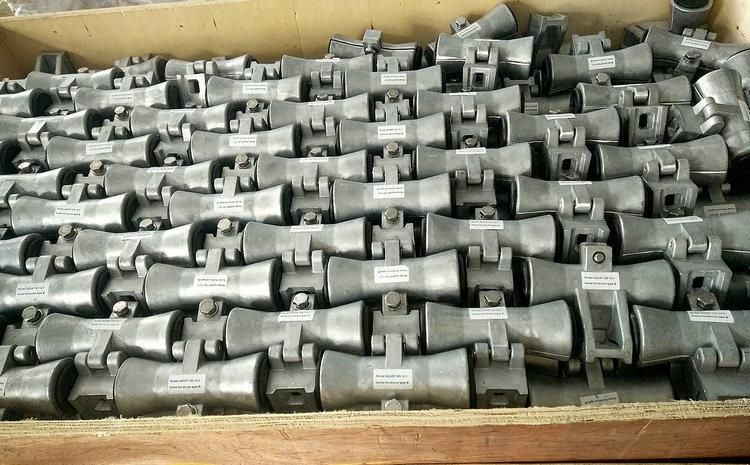

Package:
