• Model NO.：JBS
• Specification：CE, RoHS, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：85389000
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. JBS Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 85389000 Production Capacity 5000PCS/Month

Product Description

Waterproof Dome Fiber Optical Splice Closure, Joint Box




Description:

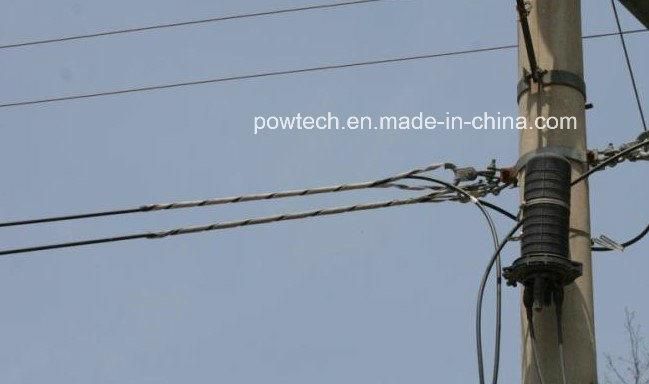

Purpose: Aerial, direct-burying, wall-mounting, Pipeline laying way
Weight: 3kg(Erect type)
Material: PC
Dimension (mm): 51*22CM (H*D)
Cables Entry & Exit: 3Entry 3Exit
Cable Diameter (mm): Φ 7-Φ 25
Sealing Structure: Heat shrinkable Sealing
Max Capacity of Core: 144 cores
Components: Seal tape 1PC, Insulation tape 1PC, Nylon tie 4PCS, optical cable heat shrinkable sleeve 24PCS, mental hook 1SET, seal fittings 1PC umeral bar 1PC, retaining ring 6PCS
Environmental temperature: -40º C to +85º C
Atmospheric pressure: 70106KPa
Optic property: The spare fiber coiled in the fiber emplacing device; The fiber connector won't attenuate during the FOSC installation operation period.
Seal Performance: After the closures are sealed, then pressurized up to 100KPa± 5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance: The closures are pressurized up to 100KPa± 5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Insulation resistance: ≥ 2X104MΩ
Span-life: 30 years.

Application:
It is widely used for communication, network system, cabled T. V. Of CATV, the fiber optic cable by network
Uses and properties:
It is belonged to open structure airproof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables
Suitable for single core fiber optic cable and ribbon fiber optic cable

Technical Specifications:

Model	Fiber capacity	Cable entrance	Net weight (kg)	Material	Installation
JBS02012-P	12 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS02024-P	24 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS02048-P	48 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS02096-P	96 fibers	2ports	2	PC (Polycarbonate)	Pole
JBS03012-P	12 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS03024-P	24 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS03048-P	48 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS03096-P	96 fibers	3ports	2	PC (Polycarbonate)	Pole
JBS04012-P	12 fibers	4ports	2	PC (Polycarbonate)	Pole
JBS04024-P	24 fibers	4ports	2	PC (Polycarbonate)	Pole
JBS04048-P	48 fibers	4ports	2	PC (Polycarbonate)	Pole
JBS04096-P	96 fibers	4ports	2	PC (Polycarbonate)	Pole

Application:
It is widely used for communication, network system, cabled T. V. Of CATV, the fiber optic cable by network
Uses and properties:
It is belonged to open structure airproof tie-in system of machine pressure.
It is used for the protective connection between two or more optical cables
Suitable for single core fiber optic cable and ribbon fiber optic cable

Installation Guide:
