• Model NO.：AQXY
• Armor Rod Material：Galvanized Steel or Aluminum
• Transport Package：Export Packing
• Specification：SGS
• Trademark：Powtech
• Origin：China
• HS Code：7326
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. AQXY Armor Rod Material Galvanized Steel or Aluminum Transport Package Export Packing Specification SGS Trademark Powtech Origin China HS Code 7326 Production Capacity 10000PCS/Month

Product Description

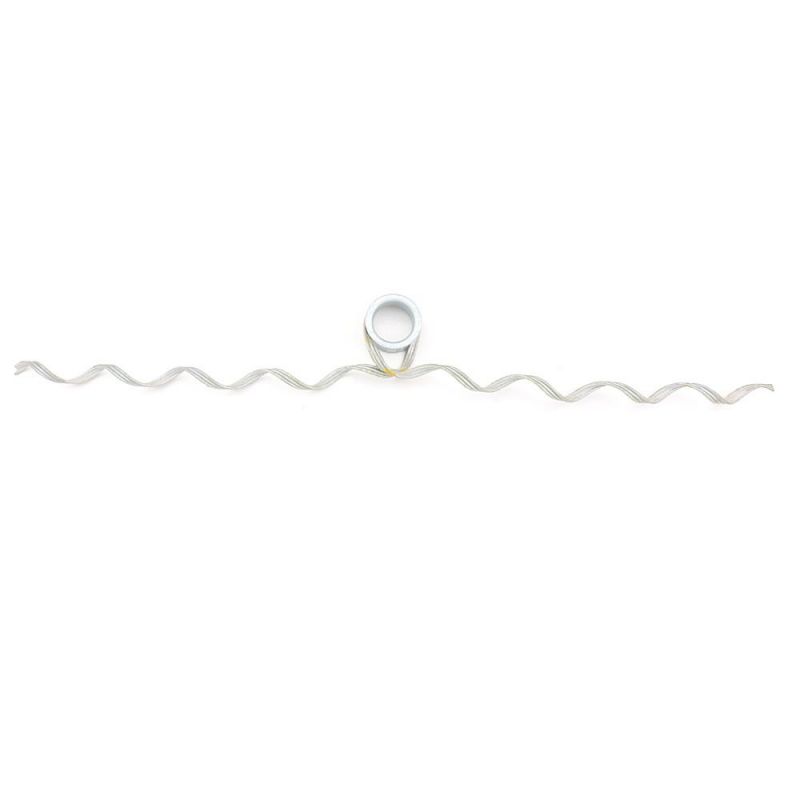

Special Design O Type Suspension Sets  for ADSS cable 100~200m Span


Configuration:
1. O-shaped ring
2. Reinforcing rod
3. Dead-end rod

Features:
The simple suspension sets are designed to connect ADSS cable to pole/tower in straight line. They feature in handiness, ease with certain load capacity to resist moving.

Application:
(1) The span should be less than 200m
(2) The poles/towers with corner angle less than 15degree
(3) It's mainly designed for ADSS cable which are constructed on the same poles with 10KV electric power for the city zones.

Technical Data Sheet:
Maximum Tension Strength: ≥20kN
Slip strength: ≥5kNRecommended span length: 100~200m

Model	Cable Diameter(mm)	Preformed Dead End Length(mm)	Reinforcing Rods Length(mm)
AQXY-100-* *	9.4~15.0	800	1000
AQXY-100-* *	15.1~18.5	800	1200
AQXY-200-* *	9.4~15.0	1000	1200
