ADSS Cable Line Accessories / Preformed Dead End Tension Sets
Qingdao Powtech Electronics Co., Ltd.- Feature：Preformed
- Material：Aluminium Clad Steel
- Usage：Heavy Duty Clamp
- Structure：Preformed Dead End
- Condition：New
- Brand：Optelec
Base Info
- Model NO.：ANZ
- Transport Package：Plywood Case
- Specification：Standard, RoHS, SGS
- Trademark：POWTECH
- Origin：Qingdao, China
- HS Code：73269090
- Production Capacity：20000PCS,Month
Description
Basic Info.
Model NO. ANZ Transport Package Plywood Case Specification Standard, RoHS, SGS Trademark POWTECH Origin Qingdao, China HS Code 73269090 Production Capacity 20000PCS/MonthProduct Description
ADSS Cable Line Accessories / Preformed Dead End Tension Sets
ADSS line fittings include:
(1) ADSS Suspensions sets
(2) ADSS tension sets
(3) Spiral vibration damper
(4) joint box/ splice closure
(5) ODF / terminal box
RTS (Rated Tensile Strength): 10kN, 15kN, 20kN, 40kN, 50kN, 60kN, 70kN, 80kN
Description:
The ADSS line fittings are applied on the pole & tower for ADSS and OPGW. They are designed to reduce the static stress at the support point of optical cable, as well as to minimize the wind induced cable motion such as Aeolian vibration, galloping and wind sway. They use a combination of structural double rods to reinforce and resilient cable inserts for reducing cable-bending stress. There is no other stress concentration, so that the optical fiber doesn't produce extra loss on the cable. Its grip strength is 10% ~20% of the cable RTS.
Main Features:
(1) Large holding area and uniform stress distribution
(2) Flexible unit
(3) Excellent anti-fatigue capability
(4) High efficiency
(5) Tiny power loss
(6) Easy installation, no special tool required

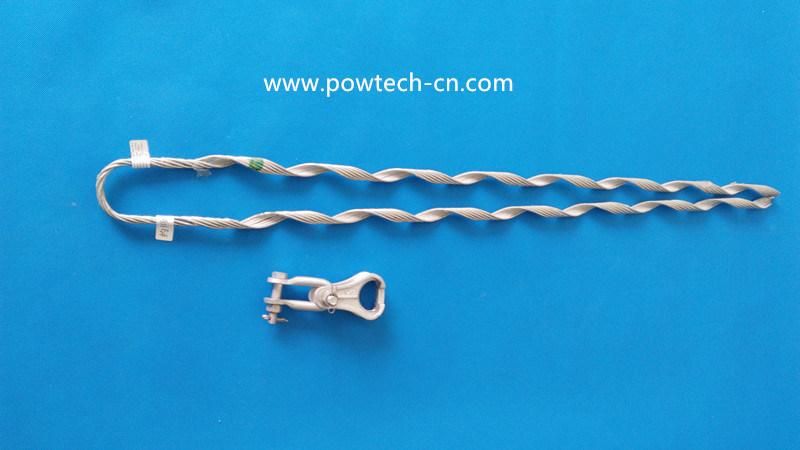

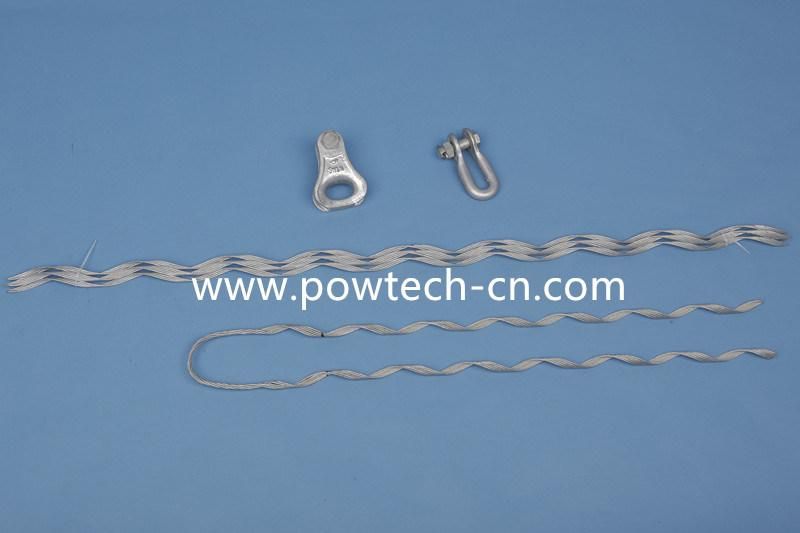

ADSS tension sets configuration:
U-shaped clamp,clevis thimble, external rod, inner rod, gripping bolt, nut, etc
Detailed Images:

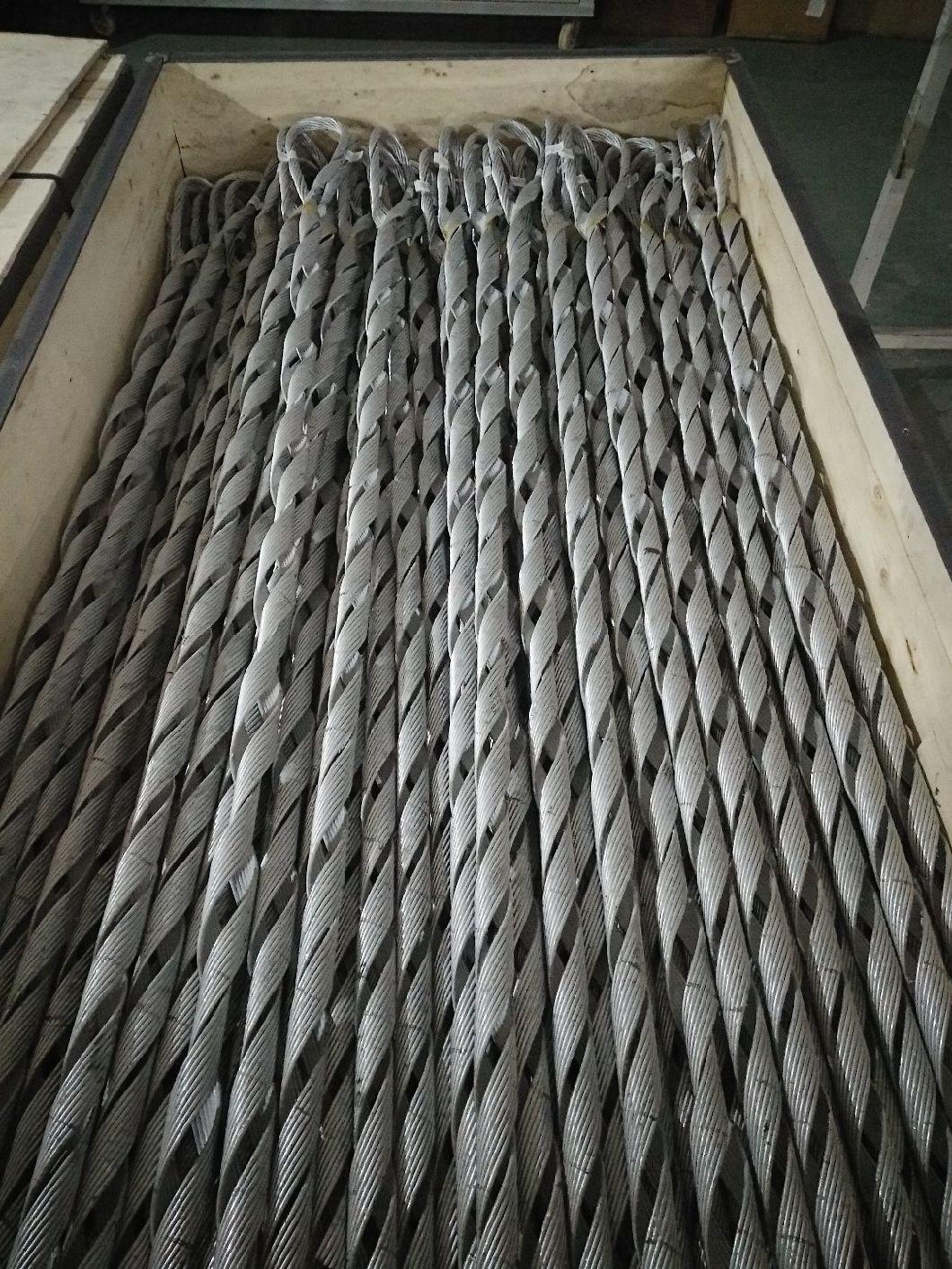

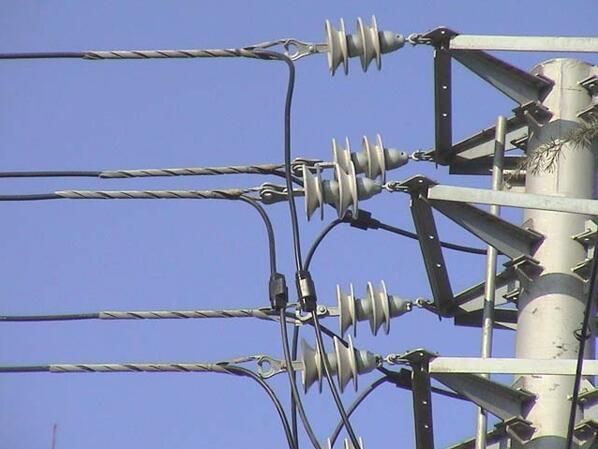

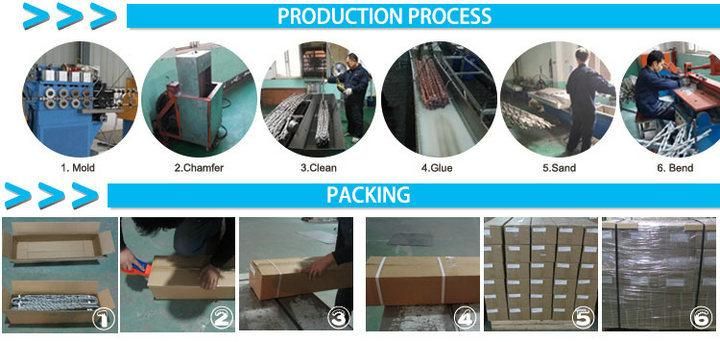

Application:
(1)Poles/towers with span length 50m ~ 800m, and line angle of less than 30 degree.
Technical Specifications:
| Product Model | Cable Diameter(mm) | Inner Armor Rod(mm) | Outer Armor Rod(mm) | Clevis Thimble | Extension Link | Anchor Shackle |
| ANZ-200-10.0 | 9.0-10.0 | 1000 | 700 | TC-04 | PD-7 | U-7 |
| ANZ-200-11.1 | 10.1-11.1 | 1000 | 700 | TC-04 | PD-7 | U-7 |
| ANZ-200-12.2 | 11.2-12.2 | 1000 | 700 | TC-04 | PD-7 | U-7 |
| ANZ-200-13.3 | 12.3-13.3 | 1000 | 700 | TC-04 | PD-7 | U-7 |
| ANZ-200-14.40 | 13.4-14.4 | 1000 | 700 | TC-04 | PD-7 | U-7 |
| ANZ-200-15.50 | 14.5-15.5 | 1000 | 700 | TC-04 | PD-7 | U-7 |
| ANZ-200-16.60 | 15.6-16.6 | 1000 | 700 | TC-04 | PD-7 | U-7 |
| ANZ-200-17.70 | 16.7-17.7 | 1000 | 700 | TC-04 | PD-7 | U-7 |
| ANZ-20018.80 | 17.8-18.8 | 1000 | 700 | TC-04 | PD-7 | U-7 |
