Wraparound   Heat Shrinkable Cable Repair Sleeve with Heat Reactive Paint
Union Polymer Material Co., Ltd.- Certification：UL
- Color：Black
- Material：Rubber
- Shrink Ratio：3:1
- Operating Temperature：-25~90°c
- Halogen Free：RoHS Compliant
Base Info
- Model NO.：R1
- Abrasion Resistant：Corrosion Resistant
- Cable Repair：Cable Sealing
- Semi-Rigid Outer Layer：Adhesive Lined
- Shrink Temperation：135 °c
- Insulation Repair：Repair Damaged Cable Jacketing
- Max. Length：1.5 Meters
- Raychem/Tyco：Crsm
- Transport Package：Neutral Packaging
- Trademark：UPM
- Origin：Dalian China
- HS Code：854720
Description
R1 Wraparound Heat Shrinkable Cable Repair SleeveFeatures Semi-rigid out layer, adhesive lined,moisture-proof Operating temperature: -25~90ºC Emergency cable repair and sealing system Shrink temperature: 135ºC Abrasion and corrosion resistant Halogen free Steel channel enables permanent closure system RoHS compliant Quickly fitted in breakage,insulating and air-tight repairTechnical DataPropertyTest method Values PhysicalTensile strengthASTM D2671 ≥14 MPa Breakdown elongationASTM D2671 ≥ 350% Aging (150ºC /168hrs)Tensile strengthASTM D2671 ≥12 MPaBreakdown elongationASTM D2671 ≥300% Density ASTM D7921.1~1.2 Low temperature flexibility(-25 ºC/4hrs)ASTM D2671No cracking Hardness (Shore D)ASTM D224040~50 HD Heat shock (200 ºC/4hrs)ASTM D2671No cracking ,no flow Water absorption ASTM D570 ≤0.5%ElectricalVolume resistivityASTM D257 ≥1013 Ω.cm Dielectric strengthASTM D267115 KV/mm Dielectric constant IEC 250 ≤ 5.0Chemical Fungus resistance ASTM G21No growthDimensionsReference As supplied After recoveredStandard length UPM R1(mm)(mm)mR1-36/1036101R1-50/1550151R1-60/1860181R1-70/2270221R1-80/2580251 R1-100/30100301 R1-135/38135381 R1-164/42164421 R1-185/55185551 R1-200/60200601 R1-220/65220651 Typical application Specifically designed to quickly repair damaged cable jacketing, providing sealing, insulation and protection of odd-shaped electrical objects where tubing insulation materials are not applicable.Ordering Standard color : Black Standard length is 1m/pc. Customized lengths (Lmax=1.5m/pc) are available. Standard packaging by pieces Please specify specification, customized length, quantity when orderingCross referenceRaychem/ Tyco : CRSM
UPM history

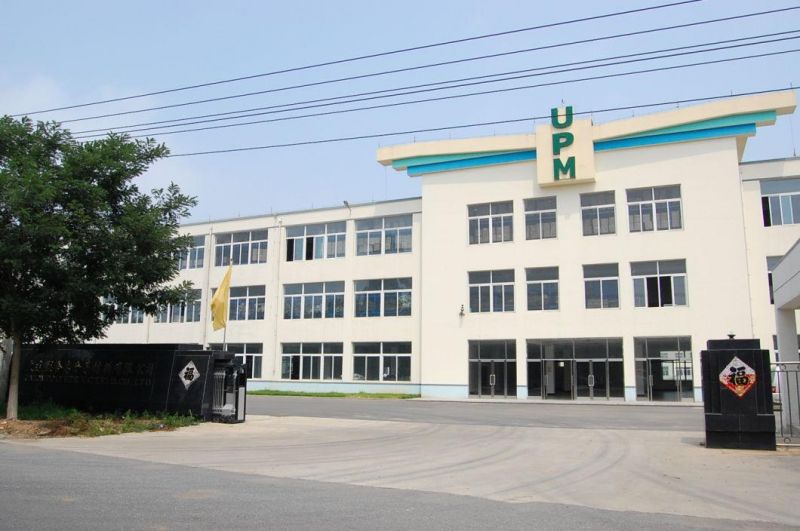

In 2002, UPM was established in Dalian, China to manufacture heat shrink materials.
In 2003,UPM began selling products for shipyard and the high voltage switchgear cabinet industry.
In 2005, UPM became an approved global supplier to Siemens for High Voltage Switchgear .
In 2006, UPM began selling products to the automotive industry.
In 2007, UPM began producing heat shrink connectors, CE approved.
In 2008, UPM expanded the product line to include power cable accessories.
In 2009, UPM began producing products for the telecommunications industry.
In 2010, UPM expanded the production capability to include a variety of Moulded parts.
In 2011, UPM expanded their manufacturing expertise to include triple-layer co-extrusion products.
In 2012, UPM brought in more automated machineries used in extrusion, co-extrusion, expansion and splicing processes.
In 2013, UPM received UL486D certification for the S3(h ) and S3(nh) product lines.
In 2014, UPM began to sell triple layer tube for cable joint
In 2015, Co-extrusion tube with adhesive tube sold well.
In 2016, More products got UL 224 approval.
More news coming up... Let's shrink the world together. Let's choose Union Polymer.

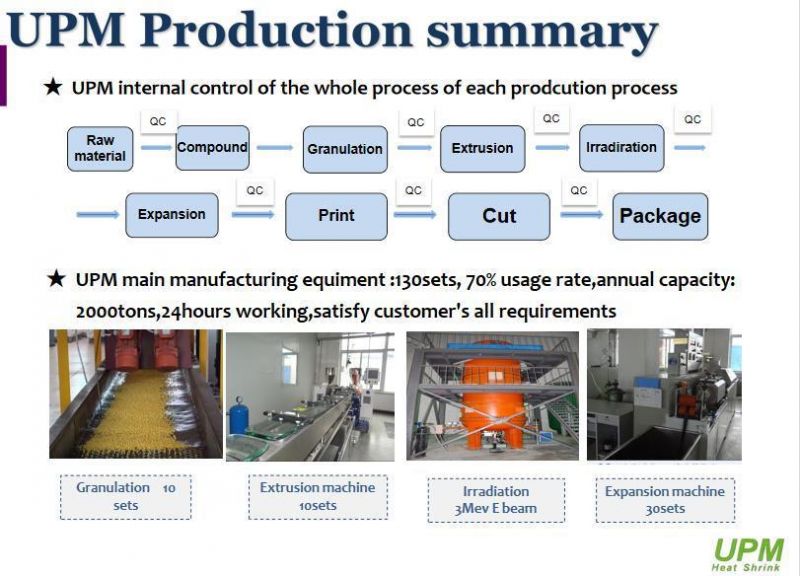

Since its founding, UPM has distinguished itself with excellent product quality, comprehensive customized after-sales service, and timely delivery. Strong R&D and innovation are the core components for the sustainable growth of UPM. UPM's manufacturing plant is now 3 times larger than the original facility. The in-house 3MeV Dynamitron (3MeV E-Beam) equipment enables UPM to maintain quality control over the entire supply chain from formulation, compounding & granulation, extrusion, cross-linked radiation, expansion, adhesive application, slicing, printing, and packaging. New products are continuously being added to our product line to meet customer needs.
