2′′ Depth Two Gang 3*3/4 Holes Aluminum Weatherproof Gray Outlet Box
TOPELE ENTERPRISE CO., LTD.- Color：Gray
- IP Rating：IP65
- Surface Treatment：State-of-The-Art Powder Coat Finish
- Application：for Use in Branch Wiring
- Material：Aluminum
- Certification：UL
Base Info
- Model NO.：TGB
- Hole Size：1,2′′,3,4′′,1′′
- Transport Package：Sealed Bag + Carton Box + Packing Belt
- Trademark：TOPELE
- Origin：China
- HS Code：7307110000
- Production Capacity：100000 PCS Per Month
Description
Basic Info.
Model NO. TGB Hole Size 1/2′′,3/4′′,1′′ Transport Package Sealed Bag + Carton Box + Packing Belt Trademark TOPELE Origin China HS Code 7307110000 Production Capacity 100000 PCS Per MonthProduct Description
2'' Depth Two Gang 3*3/4''Holes Aluminum Weatherproof Gray Outlet Box
Basic details:
| Material: | Aluminum Die Cast |
| Finish: | State-of-the-art powder coat finish |

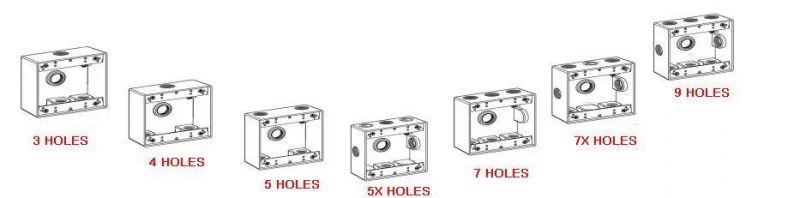

| Type: | 3 / 4 / 5 / 5x / 7 / 7x / 9 Holes |
| Box Size: | 4''*4'' ---Two Gang |
| Hole Size: | 1/2'',3/4'',1'' |
| Color: | Gray |
| Protection Level: | IP65 |
Usage: | Used as a weatherproof junction box or as a housing for receptacles, switches and GFCI in branch circuit wiring in wet, damp or dry locations. |
| Brand Name: | TOPELE |

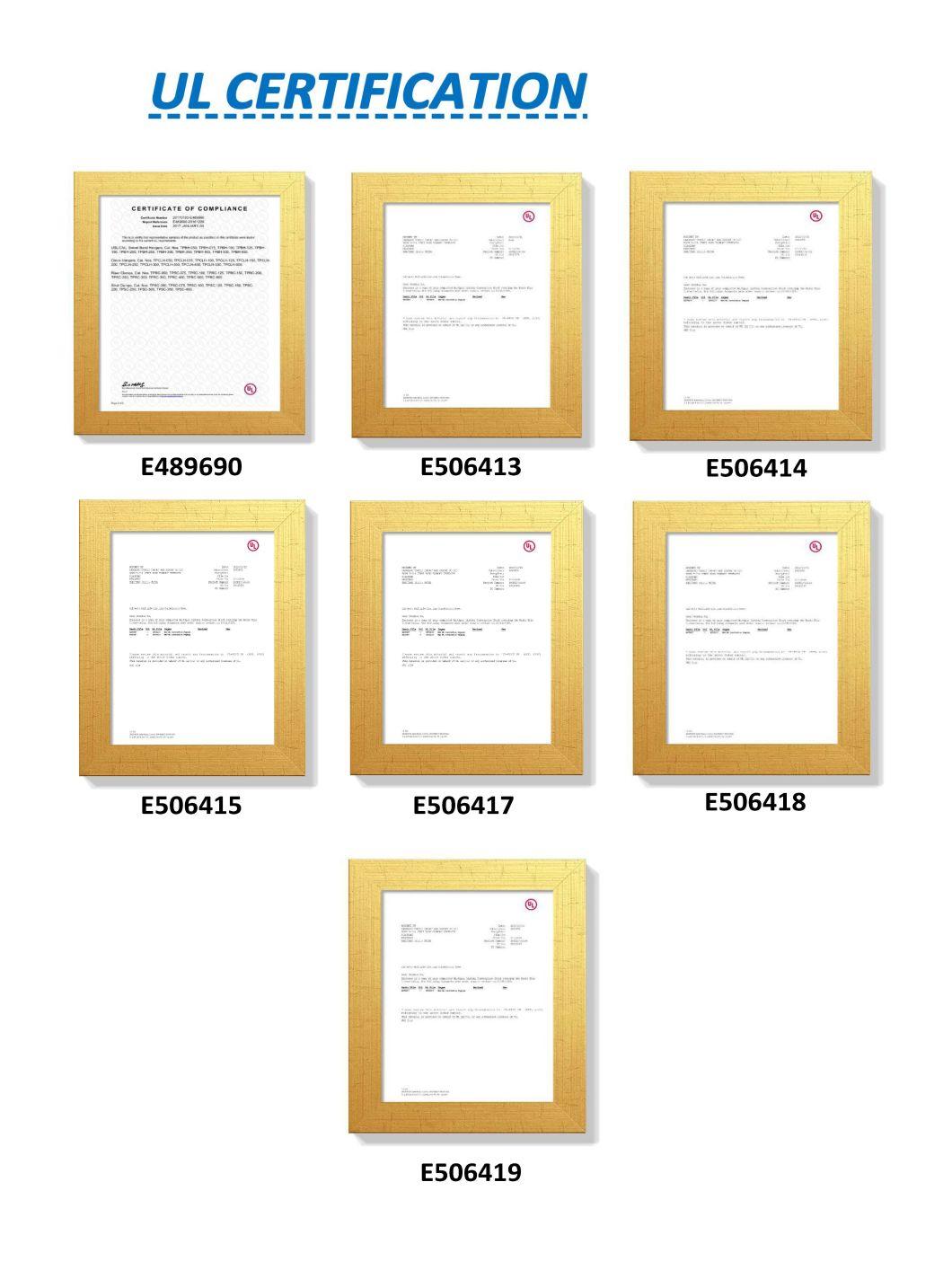

| Standard: | UL No.E506419 |
Specifications:
| Item No. | Trade Size | Width(Inch) | Length(Inch) | Depth(Inch) | Max.Capacity |
| TGB50-3 | 1/2''x3 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500m |
| TGB75-3 | 3/4''x3 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB50-4 | 1/2''x4 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB75-4 | 3/4''x4 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB50-5 | 1/2''x5 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB75-5 | 3/4''x5 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB100-5 | 1''x5 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB50-5X | 1/2''x5 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB75-5X | 3/4''x5 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB100-5X | 1''x5 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB50-7 | 1/2''x7 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB75-7 | 3/4''x7 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB50-7X | 1/2''x7 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB75-7X | 3/4''x7 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB50-9 | 1/2''x9 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| TGB75-9 | 3/4''x9 | 4.530 | 4.530 | 2.160 | 30.5cu in / 500ml |
| DTB50-5 | 1/2''x5 | 4.530 | 4.530 | 2.625 | 37.3cu in / 611ml |
| DTB75-5 | 3/4''x5 | 4.530 | 4.530 | 2.625 | 37.3cu in / 611ml |
| DTB100-5 | 1''x5 | 4.530 | 4.530 | 2.625 | 37.3cu in / 611ml |
| DTB50-5X | 1/2''X5 | 4.530 | 4.530 | 2.625 | 37.3cu in / 611ml |
| DTB75-5X | 3/4''X5 | 4.530 | 4.530 | 2.625 | 37.3cu in / 611ml |
| DTB100-5X | 1''X5 | 4.530 | 4.530 | 2.625 | 37.3cu in / 611ml |
| DTB50-7X | 1/2''x7 | 4.530 | 4.530 | 2.625 | 37.3cu in / 611ml |
| DTB75-7X | 3/4''x7 | 4.530 | 4.530 | 2.625 | 37.3cu in / 611ml |
| DTB100-7X | 1''x7 | 4.530 | 4.530 | 2.625 | 37.3xu in / 611ml |
Note: Boxes supplied with 2 closure plugs,1 green grounding screw amd 2 mounting lugs with self-tapping screws.
TOPELE Watherproof Outlet Box are made of rugged, seamless die-cast construction which will not allow entry of moisture. It have safety performance,good impact resistance, static load strength, insulation, * Non-toxic *, anti-aging properties, corrosion resistance, fire retardant properties.
(1)Strong package:
1.Sealed bag + Carton box + Packing belt
2.Small box + Carton box + Packing belt
3.Sealed bag + Carton box + Wrap film + Tray + Packing belt

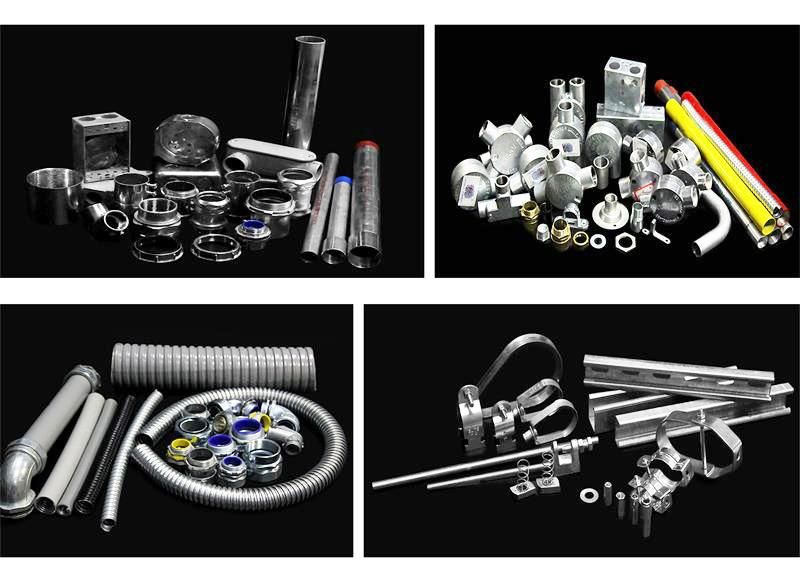

A Range Of Products:
