Stainless Steel Wire Mesh Cable Tray
Qingdao Powtech Electronics Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Hole：with Hole
- Feature：Antimagnetic, Light Weight, Dustproof, Corrosion Resistance
- Surface Treatment：Hot Galvanizing
- Material：Steel, Q235, SS304, SS316, FRP
- Type：Cable Tray
Base Info
- Model NO.：WB
- Profile：Cablofil
- Length：2.44mm,3m,6m
- Surface：Hot Dipped Galvanized, Electro Zinc Plated
- Certificate：SGS, IEC, Ce, ISO
- Transport Package：Standard Package or as Per Customer′s Request
- Specification：CE, RoHS, SGS
- Trademark：Powtech
- Origin：China
- HS Code：7308
- Production Capacity：5 * 40hq Container
Description
600mm
Wire mesh cable trays are constructed with a 50mm x 100mm mesh configuration. Diameters of wires are 5.0mm.
Installation Notice:
Bends, Risers, T Junctions, Crosses & Reducers can be made from wire mesh cable tray straight sections flexibly in projects. Trays shall be supported at a maximum span of 2.5m by trapeze, wall,
floor or channel mounting methods and will not exceed maximum loads as specified by the manufacturer. Wire mesh cable tray systems can be safely employed in places where the temperature ranges between -40° C and +150° C without any change to their characteristics.
Application:
WIre mesh cable tray are mainly used for low voltage, telecommunication, and fiber optic cables supported on short spans.
Cablofil cable tray Features & Advantages:
All sharp ends are cut off to protect cables. Weight loading capacity is 27% stronger than traditional cable trays and cable ladders.

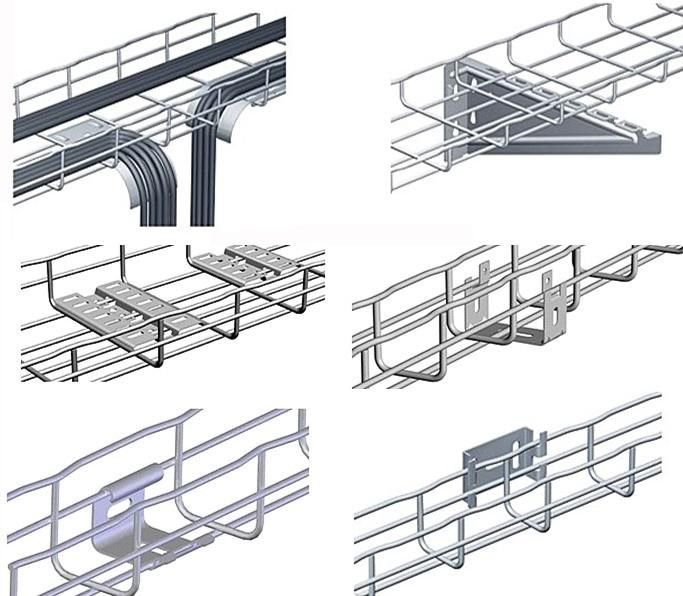

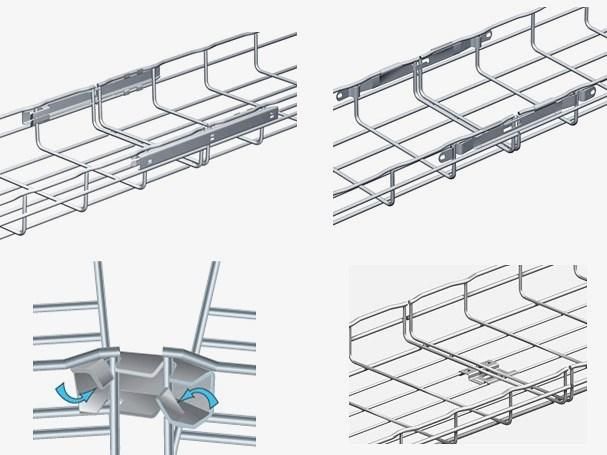

Installation Guide:

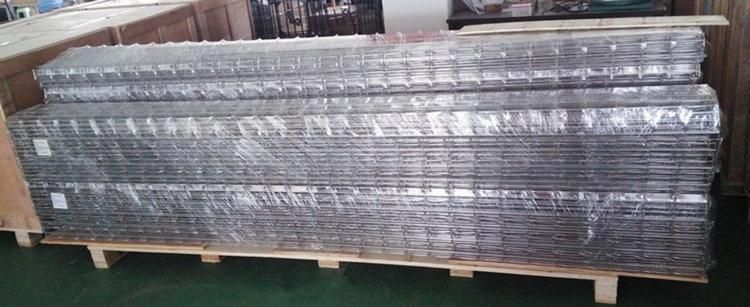

Packing&Shipping:
