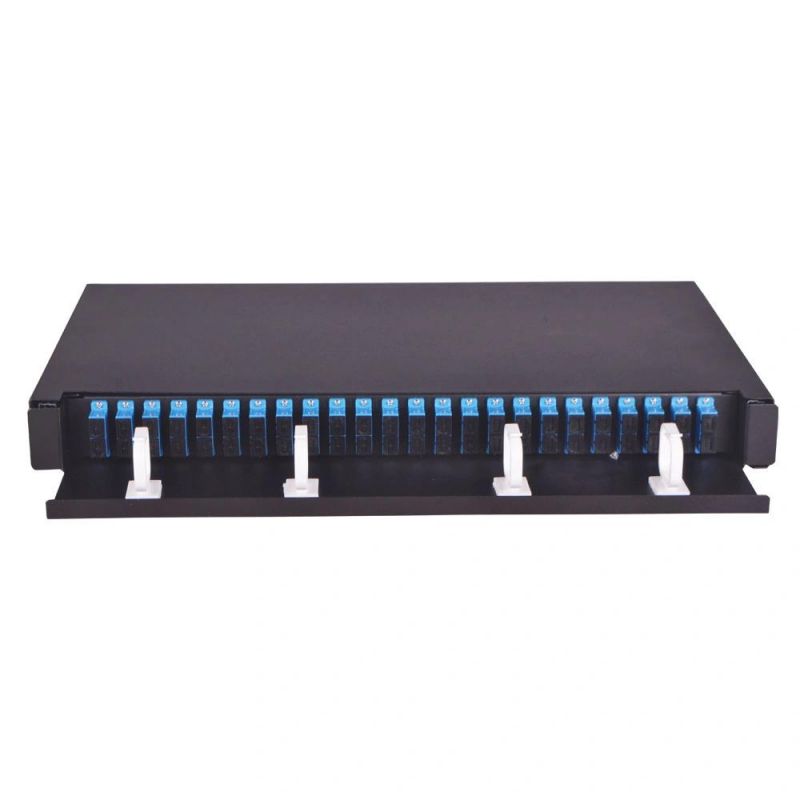

24 Core Wall Mount Optical Distribution Box Fiber Optic ODF
Hangzhou Softel Optic Co., Ltd.- Usage:Fiber
- Type:Optical Fiber Distribution Box
Base Info
- Model NO.:FOD-B
- ODF:Fiber Optic ODF
- Application:Hfc, Data Network, FTTX
- Capacity:12-96 Fiber
- Material:Steel
- Delivery:7 Working Days
- Brand:Softel or OEM
- Size:19 Inch Rack
- Warranty:12 Months
- Transport Package:Paper Box
- Specification:A Class
- Trademark:Softel
- Origin:China
- HS Code:85176229
- Production Capacity:1000 Set Per Week
- Package size per unit product:48.00cm * 34.00cm * 8.00cm
- Gross weight per unit product:6.000kg
Description
Basic Info.
Model NO. FOD-B ODF Fiber Optic ODF Application Hfc, Data Network, FTTX Capacity 12-96 Fiber Material Steel Delivery 7 Working Days Brand Softel or OEM Size 19 Inch Rack Warranty 12 Months Transport Package Paper Box Specification A Class Trademark Softel Origin China HS Code 85176229 Production Capacity 1000 Set Per WeekPackaging & Delivery
Package size per unit product 48.00cm * 34.00cm * 8.00cm Gross weight per unit product 6.000kgProduct Description
Rack mount fiber optic odfDescriptions:
19" standard mounting with static electric plastic sprayed, nice appearance;
Can be used for ribbon & bunch fiber cables;
Could install FC, SC, ST or FC (duplex) adapter;
Flexible adapter panel is used, making the box more universal for different types of adapters and greatly increase the exchangeability;
Clear fiber route, pigtails could be coiled and stored on the tray;
Symmetrical side panels, unique design of inlaid structure for fibers, which makes the inlet of fibers more flexible and convenient;
The depth of installation could be adjusted, and installation and maintenance will be flexible, convenient and universal
Steel core fixed device could be provided according to users' requirement
Its capacity is up to 96 fibers
ODF Features:
1.1.5mm steel sheet for strong housing
2. Slim 1 Unit Mounting Height

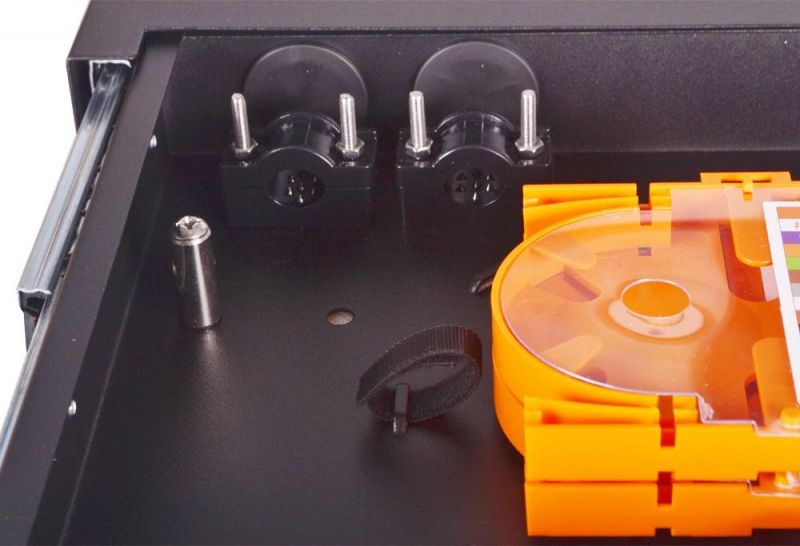

3. Ball bearing slid rails with positive stop

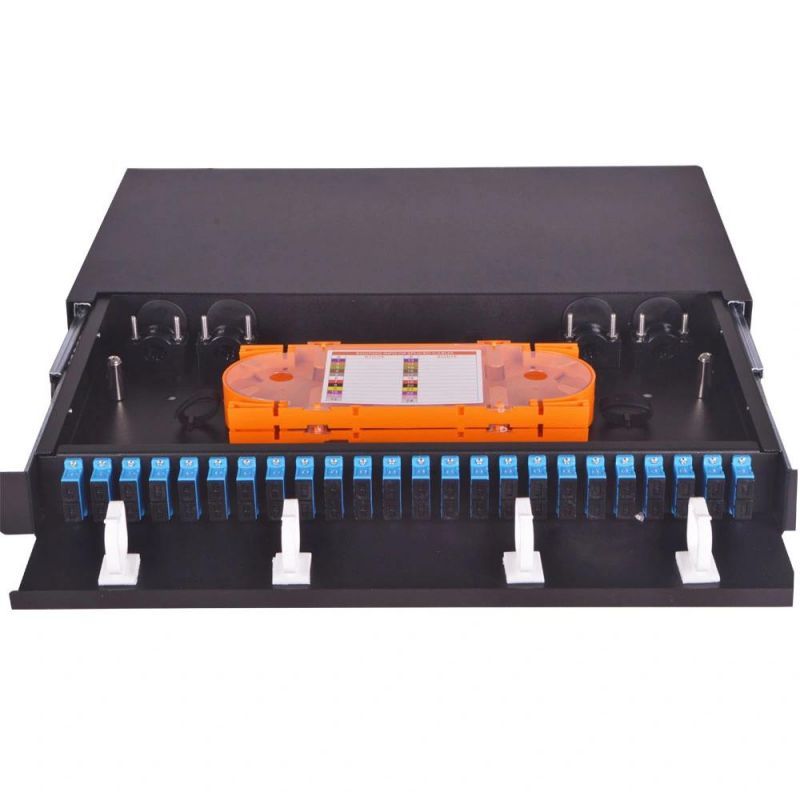

4. Sliding design is easy to work for patching the connectors
5. Hinged front panel is easy to be turned over & be fixed by snap-in locker
6. Front-mounted cable saddles for jumper management
7. Can manage both splices and terminations
8. Preassembled shelves in multiple configurations
9. Can includes adapter panels for up to 72 144SC terminations

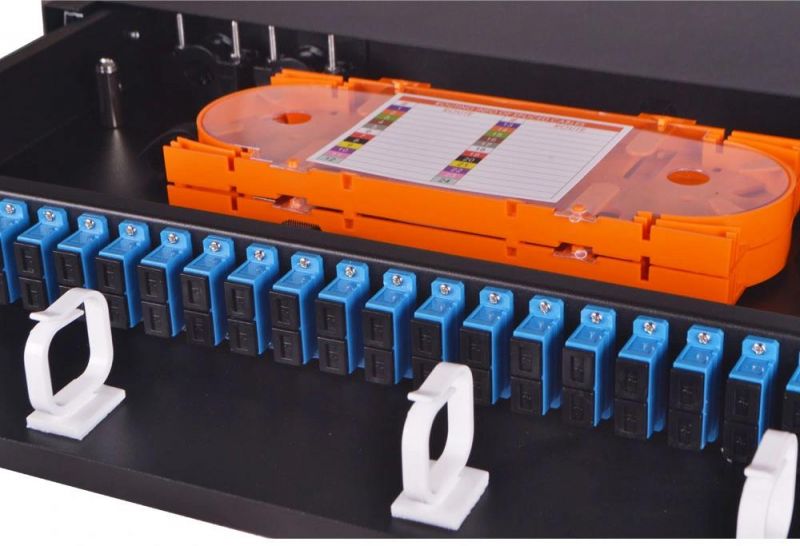

10. High density splice tray contains 24 fiber maximum in one tray
11. Clear plastic cover to protect the fibers.
12.4 fiber saddles built-in for 900um tight buffered fiber winding & storing.
13. Capable of storing up to 3 meters of 900 μ M tight buffered fiber per adapter
14. Snap-in locker design, easy to change adapter panels for various connector patching
15. Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up
16. Accessory kit consists of cable ties, mounting ear screws, and spiral wrap tube
Parameters:
Model | Size(mm) | Max. Core Capacity | splice tray | Weight(kg) |
ODF-A | 480x310x43.5 | 48 LC, 24 SC | 12, 24 | 4.8 |
ODF-B | 480x310x43.5 | 48 LC, 24 SC | 12, 24 | 5 |
ODF-C | 485x320x(60-180) | 192LC, 96SC | 12, 24 | / |
ODF-D | 485x270x(43-240) | 192LC, 96SC | 12 core integrated splice tray | / |
ODF-E | 485x310x43.5 | 72 LC, 36 SC, 24 FC | 12, 24 | 3.5 |
ODF-F | 480x310x43.5 | 72 LC, 36 SC, 24 FC | 12, 24 | 5 |
ODF-G 1U | 480x310x43.5 | 120LC | MPO cassette | / |
ODF-G 4U | 480x310x17.5 | 288LC | MPO cassette, 12, 24 splice tray | / |
