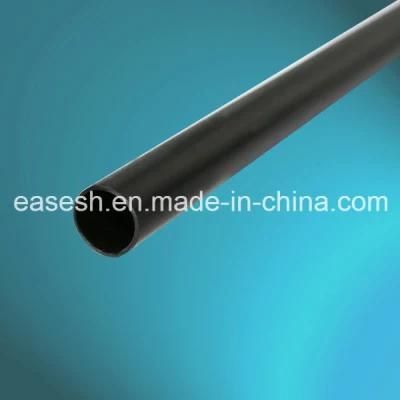

Halogen Free Medium Wall Insulation Heat Shrink Protection Tubing

Ease Cable Termination&Accessories Co., Ltd.
  • Certification：UL, RoHS
  • Application：Insulators, Electrical Winding Insulation
  • Type：Insulation Sleeve
  • Chemistry：Hybrid Insulation
  • Material：Plastic
  • Brand：Es

Base Info

  • Model NO.：HS-MW-CP
  • Thermal Rating：125t
  • Maximum Voltage：600V
  • Transport Package：100m,Roll or Customized
  • Specification：UL
  • Trademark：ES
  • Origin：China
  • HS Code：39173200
  • Production Capacity：5000000, 000 M,Month

Description

SPECIFICATIONS
MATERIAL:
POLYOLEFIN (CROSSLINKED)VOLTAGE:600 V
STANDARD:
UL 224 125°C & RoHSSHRINK TEMP:120°CWORK TEMP:-55°C~110°CWALL TYPE:DUAL, MASTIC~COATEDRATIO:3:1APPLICATIONCORROSION PROTECTING
UL FILE:
E197895
EASE CODE
AS SUPPLIED (mm)AFTER RECOVERY (mm)SHAPESTANDARD LENGTH (m/pc)Inside Dia.Inside Dia.Wall ThicknessHS-MW-30/6-CP3062.5O1.22HS-MW-33/8-CP3382.7O1.22HS-MW-40/12-CP40122.7O1.22HS-MW-55/20-CP55202.7O1.22HS-MW-75/25-CP75253.0O1.22HS-MW-95/30-CP95303.0O1.22

NOTE: BIG SIZES ARE AVAILABLE UPON REQUEST
