Iecex and Atex Certified Explosion-Proof Ex E IP67 Nickel Plated Brass Cable Gland for Armoudred Cable
Yueqing Greenwich Imp & Exp Co., Ltd.- Certification：ISO, CE
- Surface Treatment：Electroplating
- Color：White
- IP Rating：IP66
- Material：Stainless Steel, Brass, Nickel Plated Brass,Stainless Steel
- Type：Straight Head
Base Info
- Work Temperature：Static:-40 ~80
- Application：Oil and Gas, Petrochemical, Marine ,Drilling
- Transport Package：Export Standard
- Specification：M20-M80
- Trademark：GWIEC
- Origin：Zhejiang
- Production Capacity：1000PCS,Day

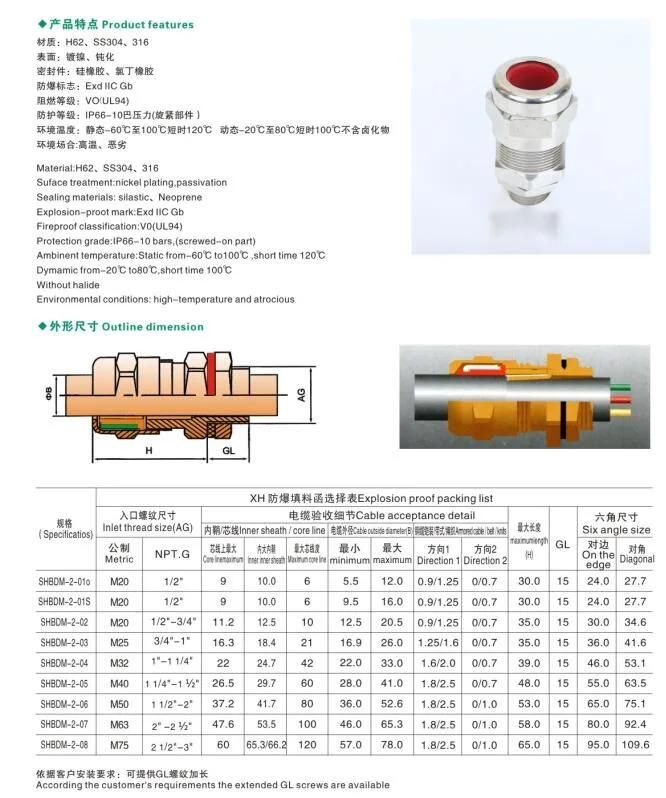

Description
Basic Info.
Work Temperature Static:-40 ~80 Application Oil and Gas, Petrochemical, Marine ,Drilling Transport Package Export Standard Specification M20-M80 Trademark GWIEC Origin Zhejiang Production Capacity 1000PCS/DayProduct Description
Harsh and hazardous environments demand exceptional strength. We supply fully rangs of Indoor and outdoor Explosion proof Hazardous Cable Glands ,for Flameproof and Increase Safety, Industrial,explosion proof,general purpose.
Cable type: Non-armoured cable,
Armoured/braided cable with inner and outer sheath/
Armoured/braided cable with inner lead sheath and outer sheath
Armoured/braided cable with inner (optional) and outer sheath
Sealing/Ingress Protection:
Outer cable sheath seal IP66/67/68 Deluge
Two outer cable sheath seals IP66/67/68 Deluge
Inner(diaphragm) and outer cable sheath seals IP66/67/68 Deluge
Inner and outer cable sheath seals IP66/67/68 (Deluge option)
Inner lead sheath seal/electrical bond and outer cable sheath seal (Deluge option)
Material: Brass stainless steel
Application: Drilling/Downstream oil and gas/Industrial and manufactring/Marine/Midstream oil and gas/mining/Pharmaceutical/power generation/Renewable energy/upstream oil and gas/water and wastewater
Ex-mark: Ex e II C ( V≤2000cm3)
Intended use: Can be used in zone 1 and zone 2
Can be used in zone 21 and zone 22
Ambient temperature use: -40°C≤Ta≤80°C
Degree of protection: IP66
Material: nickel plated brass
