Hot Selling ADSS O - Type Simple Suspension Clamp
Qingdao Powtech Electronics Co., Ltd.- Certification：RoHS, ISO, CE
- Color：White
- Surface Treatment：Galvanised
- Usage：Electrical Appliance
- Material：Al-Clad Steel
- Type：O Type
Base Info
- Model NO.：AQXY
- Span：Less Than 100m
- Suitable Cable：ADSS
- Transport Package：Wooden Case
- Specification：CE, RoHS, SGS, ISO
- Trademark：Powtech
- Origin：China
- HS Code：85447000
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. AQXY Span Less Than 100m Suitable Cable ADSS Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 85447000 Production Capacity 10000PCS/MonthProduct Description

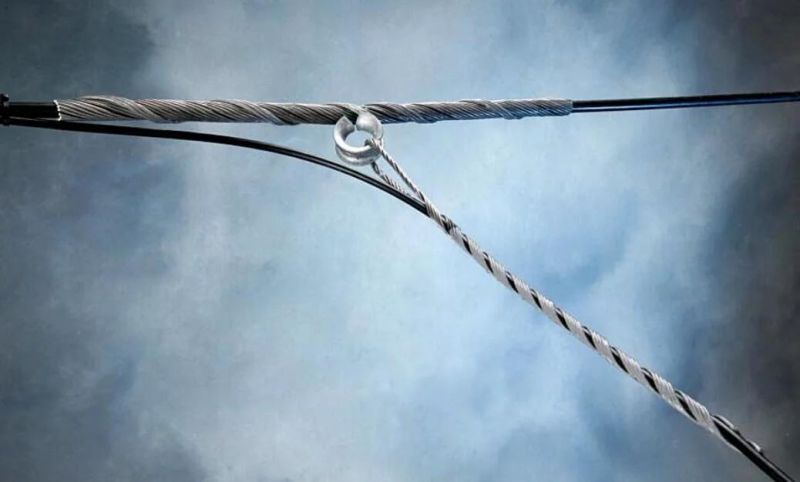

Hot Selling ADSS O - Type Simple Suspension Clamp
The O type suspension clamp are designed to connect ADSS cable to pole/tower in the straight line. They feature in handiness, ease, with certain load capacity to resist moving.
Application:
1.The span should be less than 100m.
2.The poles/towers with corner angle less than 15°
3.It is mainly designed for ADSS cable which are constructed on the same poles with 10kv electric power for the city zones.

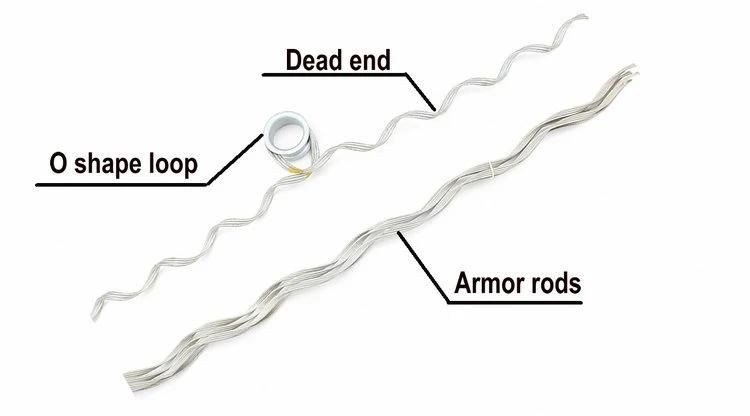

Configuration:
1.O-shaped hanging loop
2.Reinforcing armor rod
3.Dead-end rods:
Technical Data Sheet:
Maximum tensile force:>10kN
Recommended Span length:100m
| Product Model | Cable Diameter(mm) | Dead-end Armor Rod(mm ) | Outer Armor Rod(mm) |
| AQXY-100-** | 9.4-15 | 1000 | 800 |
| AQXY-100-** | 15.1-18.5 | 1300 | 800 |
