• Model NO.：KXK
• Span：Less Than 100m
• Suitable Cable：ADSS
• Transport Package：Wooden Case
• Specification：CE, RoHS, SGS, ISO
• Trademark：Powtech
• Origin：China
• HS Code：85447000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. KXK Span Less Than 100m Suitable Cable ADSS Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 85447000 Production Capacity 10000PCS/Month

Product Description

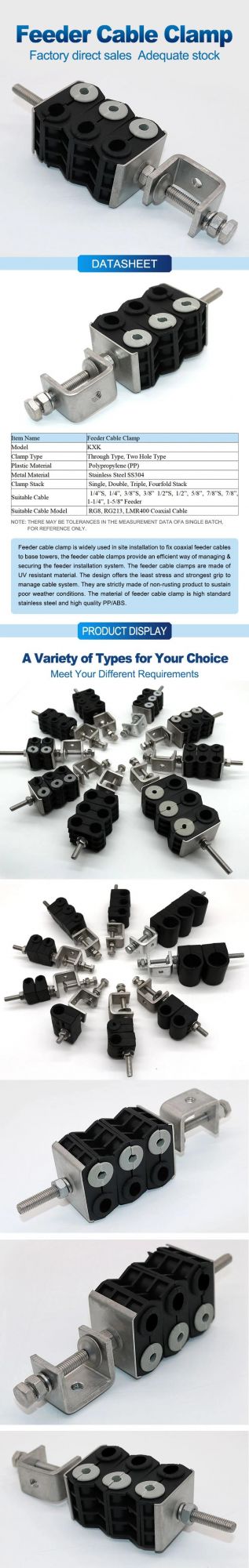

Single / Double / Triple Holes Feeder Clamp Jumper Cable Clamp


Feeder cable clamp is widely used in site installation to fix coaxial feeder cables to base towers, the feeder cable clamps provide an efficient way of managing & securing the feeder installation system. The feeder cable clamps are made of UV resistant material. The design offers the least stress and strongest grip to manage cable system. They are strictly made of non-rusting product to sustain poor weather conditions. The material of feeder cable clamp is high standard stainless steel and high quality PP/ABS.

Features:
1.Size: 1/4"S, 1/4", 3/8"S, 3/8" 1/2"S, 1/2", 5/8", 7/8"S, 7/8", 1-1/4", 1-5/8", or use with grommet rubber for different size cable freely
2.Anti-UV, Anti-corrosive
3.Good mechanical performance
4.Quick and easy to install and operate
5.YD/T109 standard

Application:
Feeder cable clamps for coaxial RF cable are used with following products:
1.Telecom cable
2. Fiber cable
3.Coaxial cable
4. Feeder cable
5.Hybrid cable
6.Corrugated cable
7.Smooth cable
8.Braid cable




Technical parameters

Item Name	Feeder Cable Clamp
Model	KXK
Clamp Type	Through Type, Two Hole Type
Plastic Material	Polypropylene (PP)
Metal Material	Stainless Steel SS304
Clamp Stack	Single, Double, Triple, Fourfold Stack
Suitable Cable	1/4"S, 1/4", 3/8"S, 3/8" 1/2"S, 1/2", 5/8", 7/8"S, 7/8", 1-1/4", 1-5/8" Feeder
Suitable Cable Model	RG8, RG213, LMR400 Coaxial Cable

Stainless Steel Feeder Clamp (Through Type)

Part No.	Description
660301A	1/2"x1 Single-stack
660301B	1/2"x2 Double-stack
660301C	1/2"x3 Triple-stack
660301D	7/8"x1 Single-stack
660301E	7/8"x2 Double-stack
660301F	7/8"x3 Triple-stack
660301G	1 1/4"x1 Single-stack
660301H	1 1/4"x2 Double-stack
660301I	1 1/4"x3 Triple-stack
660301J	1 5/8"x1 Single-stack
660301K	1 5/8"x2 Double-stack
660301L	1 5/8"x3 Triple-stack

Stainless Steel Feeder Clamp (Two Hole Type 1)

Part No.	Description
660303A	1/2"x1 Single-stack
660303B	1/2"x2 Double-stack
660303C	1/2"x3 Triple-stack
660303D	7/8"x1 Single-stack
660303E	7/8"x2 Double-stack
660303F	7/8"x3 Triple-stack
660303G	1 1/4"x1 Single-stack
660303H	1 1/4"x2 Double-stack
660303I	1 1/4"x3 Triple-stack
660303J	1 5/8"x1 Single-stack
660303K	1 5/8"x2 Double-stack
660303L	1 5/8"x3 Triple-stack

Stainless Steel Feeder Clamp (Two Hole Type2)

Part No.	Description
660307A	1/2"x1 Single-stack
660307B	1/2"x2 Double-stack
660307C	1/2"x3 Triple-stack
660307D	7/8"x1 Single-stack
660307E	7/8"x2 Double-stack
660307F	7/8"x3 Triple-stack
660307G	1 1/4"x1 Single-stack
660307H	1 1/4"x2 Double-stack
660307I	1 1/4"x3 Triple-stack
660307J	1 5/8"x1 Single-stack
660307K	1 5/8"x2 Double-stack
660307L	1 5/8"x3 Triple-stack

Stainless Steel Feeder Clamp (Two Hole Type3)

Part No.	Description
660310A	1/2"x1 Single-stack
660310B	1/2"x2 Double-stack
660310C	1/2"x3 Triple-stack
660310D	7/8"x1 Single-stack
660310E	7/8"x2 Double-stack
660310F	7/8"x3 Triple-stack
660310G	1 1/4"x1 Single-stack
660307H	1 1/4"x2 Double-stack
660310I	1 1/4"x3 Triple-stack
660310J	1 5/8"x1 Single-stack
660310K	1 5/8"x2 Double-stack
660310L	1 5/8"x3 Triple-stack
