Latest Arrival Air Vent Cable Gland Vent Cable Gland Breathable Type Air Vent Cable Gland Gland Cable Certified

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE, Ex; IP68
  • Surface Treatment：Electroplating
  • Color：Metalic
  • IP Rating：IP68
  • Material：Brass
  • Advantage：Free Samples; Special Customized

Base Info

  • Model NO.：M8-M100, PG7-PG63
  • Claw：PA
  • Sealing：NBR
  • Size：M12-63
  • Work Temperature：-40~+100ºC,Short Time
  • Transport Package：Polybag+Label Export Carton Box
  • Trademark：Jixiang
  • Origin：Zhejiang; China
  • HS Code：8547901000
  • Production Capacity：50000

Description

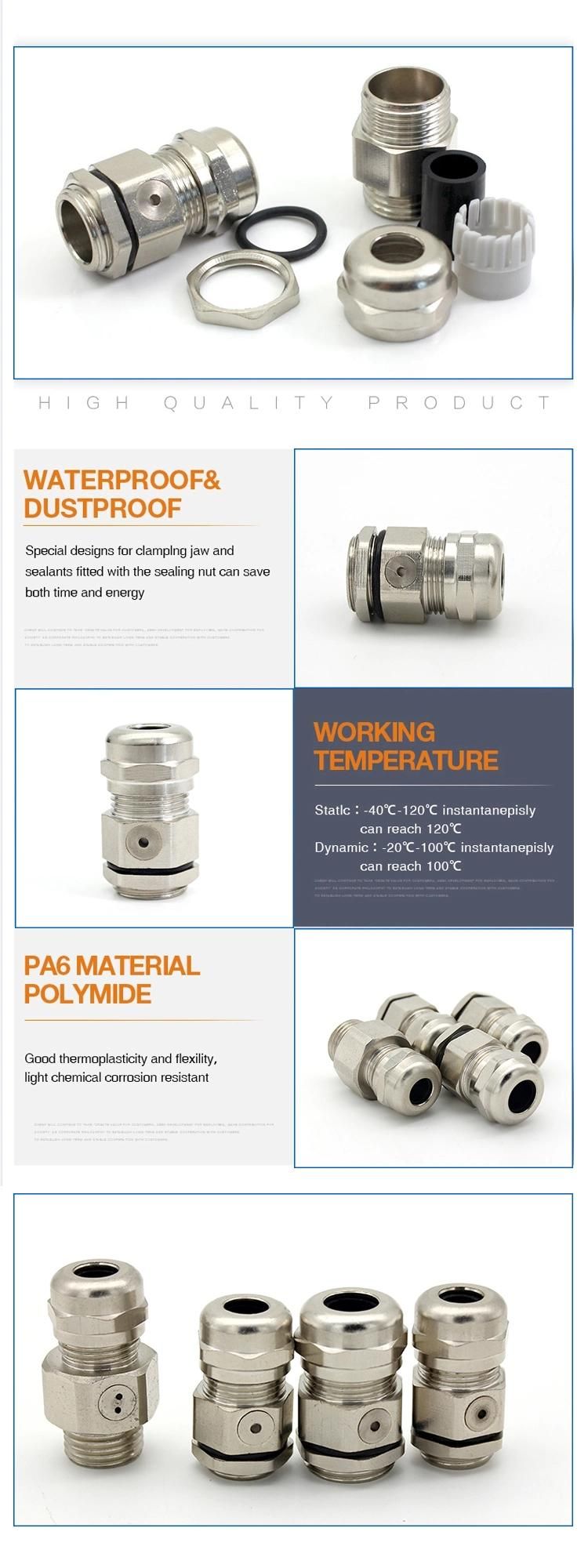

Breathable Cable Gland--- metric thread

Product Code

Thread  AG

Cable range(mm)

Thread Length (mm)

Thread O.D (mm)

Spanner Size (mm)

JX-M12-BR

M12

3-6.5

7

11.9

17

JX-M14-BR

M14

4-8

7

13.9

19

JX-M16-BR

M16

4-8

7

15.9

21

JX-M18-BR

M18

5-10

8

17.9

22

JX-M20-BR

M20

6-12

8

19.9

24

JX-M22-BR

M22

10-14

8

21.9

27

JX-M25-BR

M25

10-16

9

24.9

27

JX-M27-BR

M27

13-18

9

26.9

30

JX-M28-BR

M28

13-18

9

27.9

30

JX-M30-BR

M30

13-18

10

29.9

36

JX-M32-BR

M32

15-22

10

31.9

38

JX-M37-BR

M36

18-25

12

36.9

42

JX-M40-BR

M40

22-30

12

39.9

46
