M12X1.0 Ventilation LED Lighting Waterproof High Airflow Screw in Vent Outdoor Electronic Waterproof Breathable Cable Gland
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, Ex; IP68
- Surface Treatment：Electroplating
- Color：Metalic
- IP Rating：IP68
- Material：Brass
- Type：Brass
Base Info
- Model NO.：M8-M100, PG7-PG63
- Advantage：Free Samples; Special Customized
- Claw：PA
- Sealing：NBR
- Size：M12-63
- Work Temperature：-40~+100ºC,Short Time
- Advantages：Free Sample
- Main Material：Nickel Plated Brass, Nylo
- Brand Name：Jixiang
- Transport Package：Polybag+Label Export Carton Box
- Trademark：Jixiang
- Origin：Zhejiang; China
- HS Code：8547901000
- Production Capacity：50000
Description

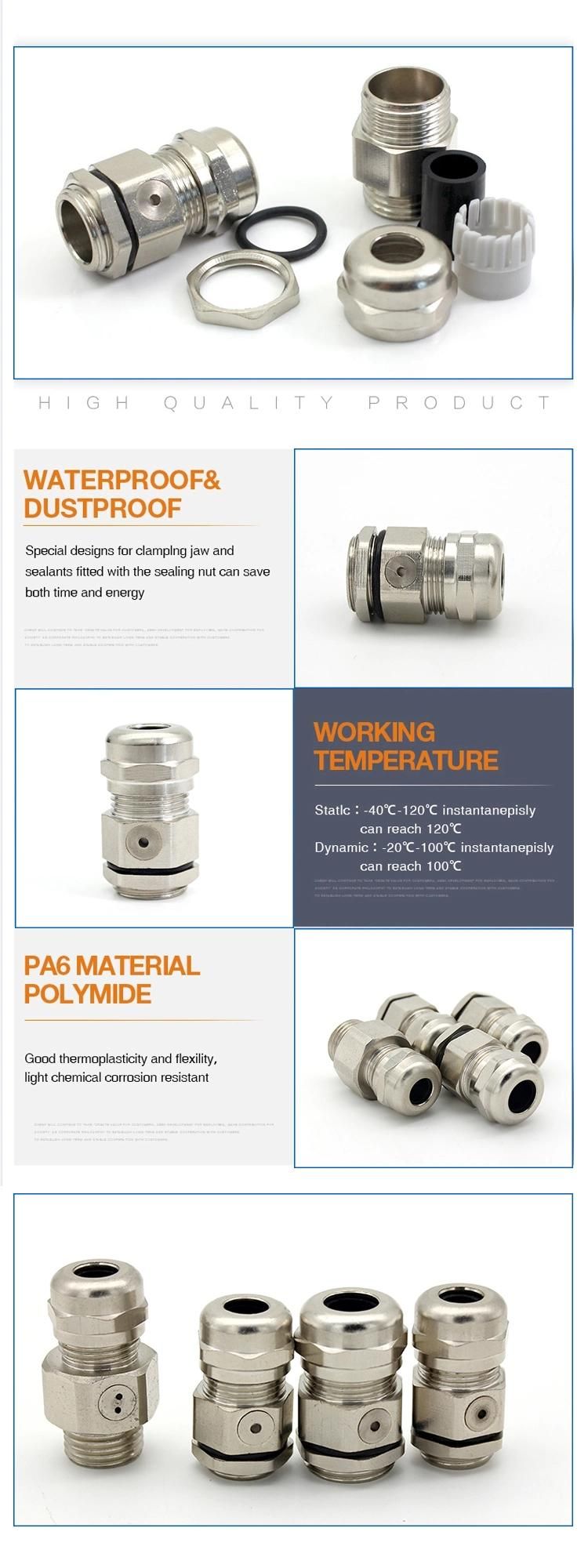

Breathable Cable Gland--- metric thread
Product Code
Thread AG
Cable range(mm)
Thread Length (mm)
Thread O.D (mm)
Spanner Size (mm)
JX-M12-BR
M12
3-6.5
7
11.9
17
JX-M14-BR
M14
4-8
7
13.9
19
JX-M16-BR
M16
4-8
7
15.9
21
JX-M18-BR
M18
5-10
8
17.9
22
JX-M20-BR
M20
6-12
8
19.9
24
JX-M22-BR
M22
10-14
8
21.9
27
JX-M25-BR
M25
10-16
9
24.9
27
JX-M27-BR
M27
13-18
9
26.9
30
JX-M28-BR
M28
13-18
9
27.9
30
JX-M30-BR
M30
13-18
10
29.9
36
JX-M32-BR
M32
15-22
10
31.9
38
JX-M37-BR
M36
18-25
12
36.9
42
JX-M40-BR
M40
22-30
12
39.9
46
