• Model NO.：GDE
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：Ce, RoHS, ISO9001, CCC, UL
• Brand：Optelec
• Transport Package：Wooden Case
• Specification：CE, RoHS, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：7326
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. GDE Material Shape Round Wire Range of Application Flame Retardant Certification Ce, RoHS, ISO9001, CCC, UL Brand Optelec Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 7326 Production Capacity 50000PCS/Month

Product Description

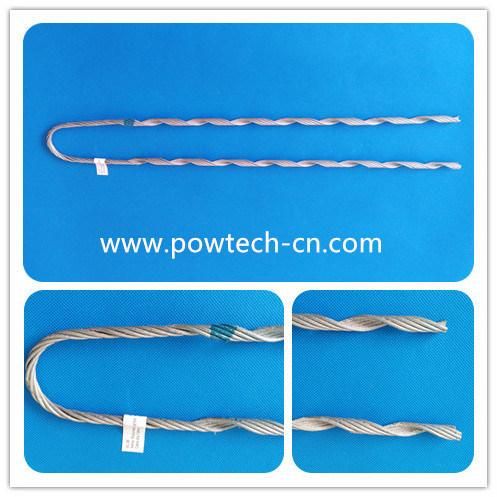

Cable Tension Clamp Preformed Dead End Guy Grip Sets


Description:

Guy-grip dead-ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The Guy-grip dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.

Guy-grip dead-ends are made of the same material as the strand to which they are applied. Guy-grip dead-ends should be used on hardware that is held in a fixed position. The fitting should not be allowed to rotate or spin about the axis of the strand. They should not be used as tools inlcuding come-alongs, pulling-in grips, ect.

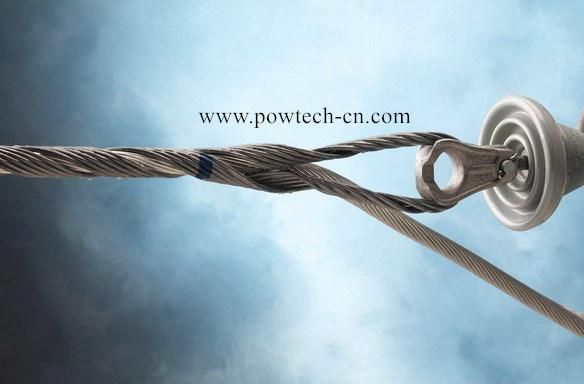

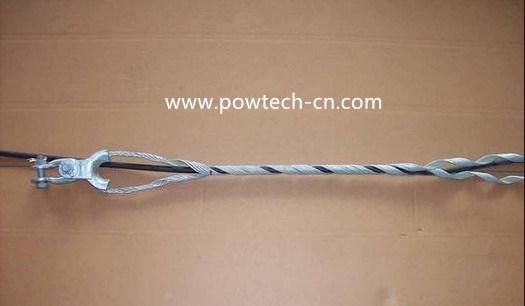

Dead end guy grip for stay wire

Installation Guide:

Cat. No.	Guy Wire (mm)	Length(mm )	Guy Wire (mm 2 )	Weight (kg)	Color Code
GDE-0660	6.60	635	25	0.2	Yellow
GDE-0795	7.65~7.95	711	35	0.3	Black
GDE-9300	8.95~9.30	901	50	0.5	Orange
GDE-1110	10.82~11.10	1016	70	0.8	Green
GDE-1250	12.50	1333	95	1.7	Orange
GDEL-1300	13.00	1333	100	1.7	Yellow
GDEL-1400	14.00	1460	120	2.2	Yellow
