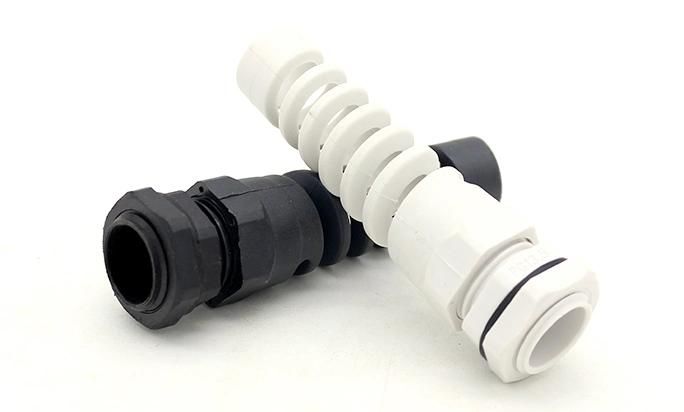

Nylon66 Strain Relief IP68 Cable Sealing Gland Pg7

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：No
  • Color：Black,Light Grey
  • IP Rating：IP68
  • Material：Nylon
  • Type：Straight Head

Base Info

  • Model NO.：M , PG , NPT , G
  • Cable Gland：Waterproof
  • Main Material：Plastic
  • Transport Package：Standard Export Carton
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：8547901000
  • Production Capacity：50000PCS,Month

Description

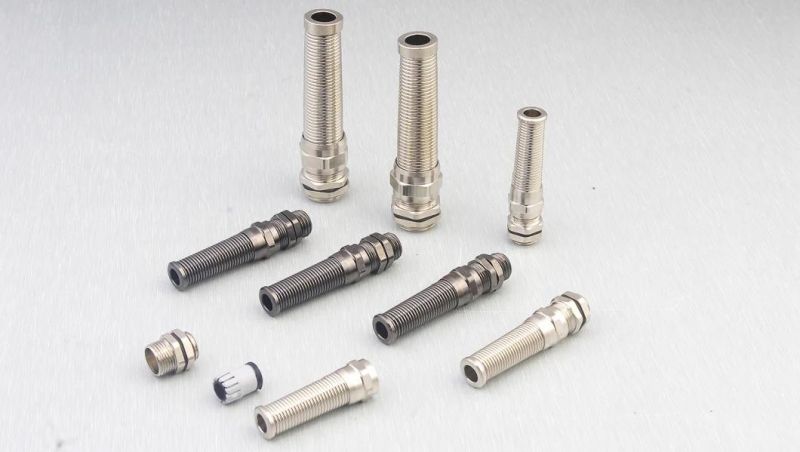

Product Name:Flexible cable glandMain material:Plastic / Nickel Plated BrassStandard size:M12-M27; PG7-PG21Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availableNylon MaterialNylon66 Strain Relief IP68 Cable Sealing Gland Pg7Metal MaterialNylon66 Strain Relief IP68 Cable Sealing Gland Pg7SizesCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)M12x1.53-6.512816M16x1.54-816819M18x1.55-1018822M20x1.56-1220924M22x1.510-14221027M25x1.513-18251033M27x1.513-18271033.........................PG73-6.512.5816PG94-815.2819PG115-1018.6822PG13.56-1220.4924PG1610-1422.51027PG2113-1828.31033

More size information, kindly contact us directly..
We provide customization service !

Nylon66 Strain Relief IP68 Cable Sealing Gland Pg7Locknut packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
Nylon66 Strain Relief IP68 Cable Sealing Gland Pg7Nylon66 Strain Relief IP68 Cable Sealing Gland Pg7                                                                                    Company ShowNylon66 Strain Relief IP68 Cable Sealing Gland Pg7Nylon66 Strain Relief IP68 Cable Sealing Gland Pg7

YUEQING JIXIANG CONNECTOR CO.,LTD

We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research,
production and sales. The main products are metal cable glands and nylon cable glands.
We firmly believe that market is the key to the development of enterprises.
Thus, we always take the high quality as our essential principle.Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000.
It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.Nylon66 Strain Relief IP68 Cable Sealing Gland Pg7Nylon66 Strain Relief IP68 Cable Sealing Gland Pg7

We welcome your inquiry

You can click here to start online customization for the design you want.
