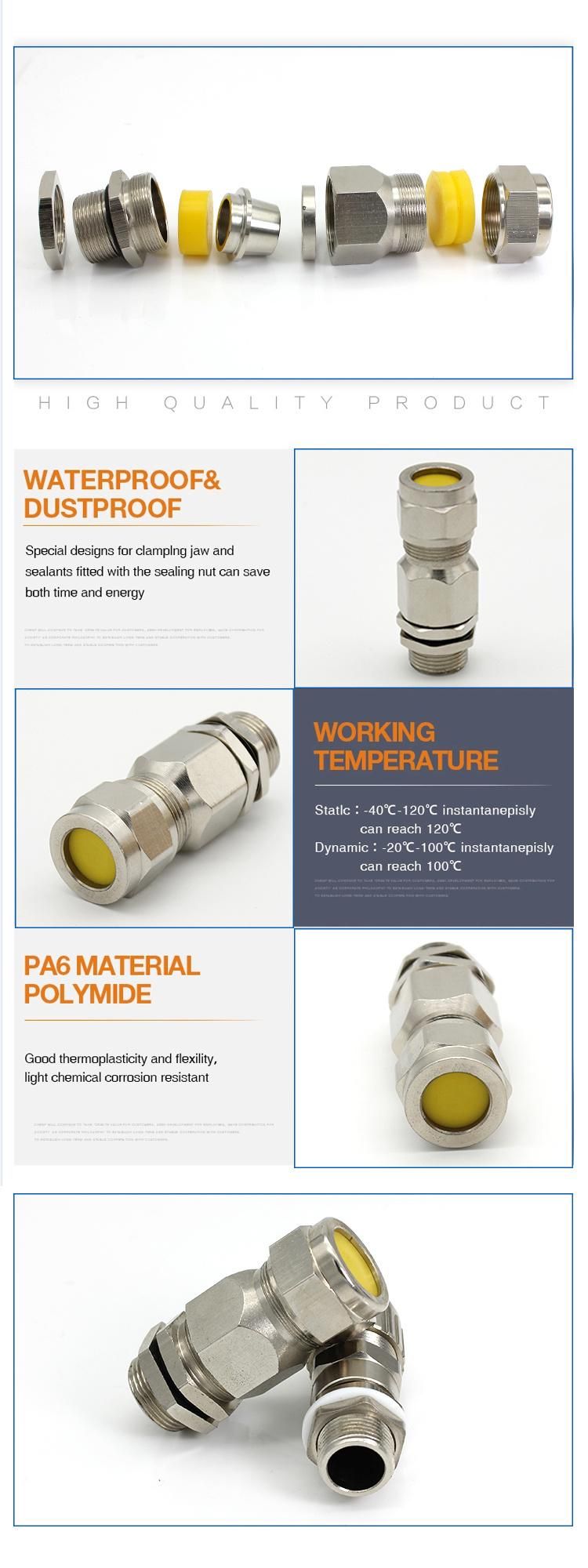

Explosion-Proof Clamp Sealing Joint
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, Ex; IP66
- Surface Treatment：Electroplating
- Color：Metalic
- IP Rating：IP66
- Material：Brass
- Transport Package：Polybag+Label Export Carton Box
Base Info
- Model NO.：Metric Thread
- Trademark：Jixiang
- Origin：Zhejiang; China
- HS Code：8547909000
- Production Capacity：50000PCS,Week
Description
Metric thread(M)
Outer diameter of cable(mm)
SW (mm)
L (mm)
L1 (mm)
A
B
JX-5-EX-M16
4-8
5.5-12
24
80
15
JX-5-EX-M20A
6.5-10.5
9.5-16
27
80
15
JX-5-EX-M20B
10-14.5
12.5-20
30
80
15
JX-5-EX-M25
12.5-19.5
16.9-26
36
88
15
JX-5-EX-M32
19-25.5
22-33
45
92
15
JX-5-EX-M40
25-31
28-41
57
98
15
JX-5-EX-M50
31.5-37
36-52.6
65
122
15
JX-5-EX-M63
42.5-55
46-65.3
81
122
15
JX-5-EX-M75
54.5-64
58-78
100
122
18
JX-5-EX-G1/2A
4-8
5.5-12
24
80
15
JX-5-EX-G1/2B
6.5-10.5
9.5-16
27
80
15
JX-5-EX-G3/4
10-14.5
12.5-20
30
80
15
JX-5-EX-G1
12.5-19.5
16.9-26
36
88
15
JX-5-EX-G11/4
19-25.5
22-33
45
92
15
JX-5-EX-G11/2
25-31
28-41
57
98
15
JX-5-EX-G2
31.5-37
36-52.6
65
122
15
JX-5-EX-G2 1/2
42.5-55
46-65.3
81
122
15
JX-5-EX-G3
54.5-64
58-78
100
122
18
JX-5-EX-NPT1/2A
4-8
5.5-12
24
80
15
JX-5-EX-NPT1/2B
6.5-10.5
9.5-16
27
80
15
JX-5-EX-NPT3/4
10-14.5
12.5-20
30
80
15
JX-5-EX-NPT1
12.5-19.5
16.9-26
36
88
15
JX-5-EX-NPT1 1/4
19-25.5
22-33
45
92
15
JX-5-EX-NPT1 1/2
25-31
28-41
57
98
15
JX-5-EX-NPT2
31.5-37
36-52.6
65
122
15
JX-5-EX-NPT2 1/2
42.5-55
46-65.3
81
122
15
JX-5-EX-NPT3
54.5-64
58-78
100
122
18
