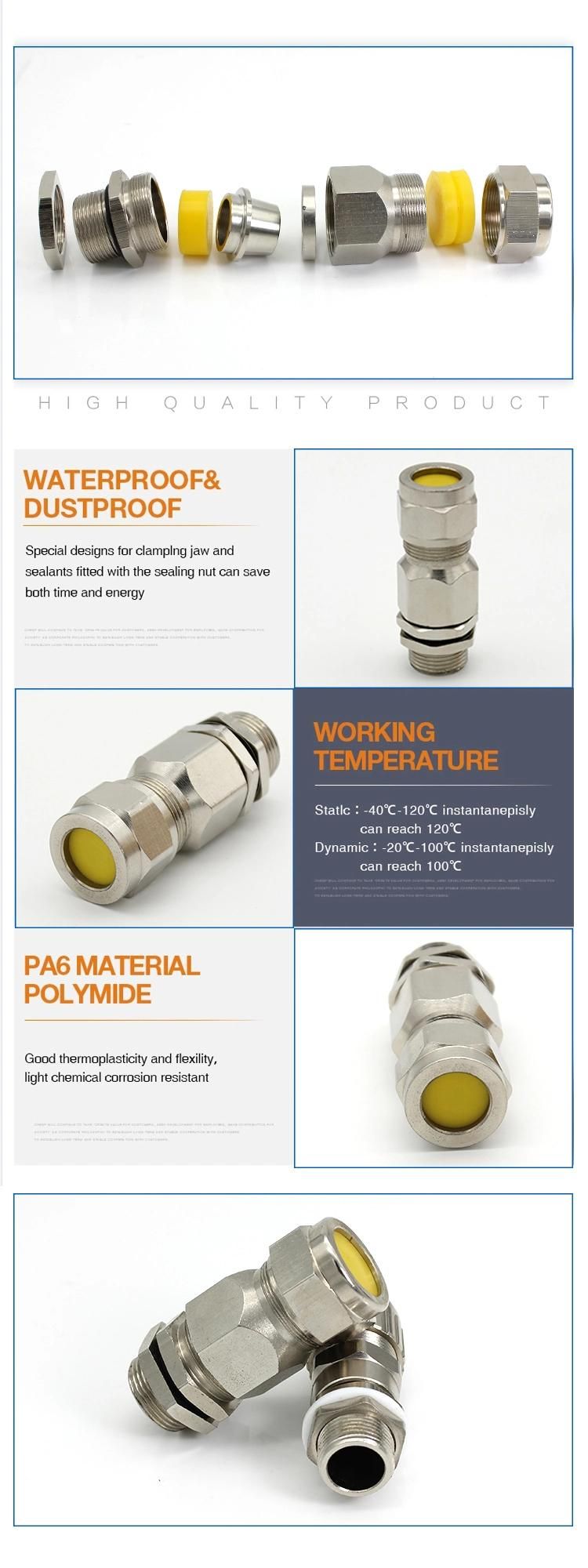

Explosion-Proof Cable Gland M16 Waterproof Metal Glands with Locknut
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, Ex; IP66
- Surface Treatment：Electroplating
- Color：Metalic
- IP Rating：IP66
- Material：Brass
- Transport Package：Polybag+Label Export Carton Box
Base Info
- Model NO.：Metric Thread,PG Thread, NPT G Thread
- Trademark：Jixiang
- Origin：Zhejiang; China
- HS Code：8547909000
- Production Capacity：50000PCS,Week
Description
Code
AG Thread
Cable Outer diameter (B)
Max. Length (H)
Thread Length (mm)
Six Angle Size
Metric
NPT,G
Min
Max
On the edge
JX-1-EX-12
M20*1.5
1/2''
5.5
12.0
30.0
15
24.0
JX-1-EX-16
M20*1.5
1/2''
9.5
16.0
30.0
15
24.0
JX-1-EX-20.5
M20*1.5
1/2''-3/4''
12.5
20.5
35.0
15
30.0
JX-1-EX-26
M25*1.5
3/4''-1''
16.9
26.0
35.0
15
36.0
JX-1-EX-33
M32*1.5
1''-11/4''
22.0
33.0
39.0
15
46.0
JX-1-EX-41
M40*1.5
11/4''-11/2''
28.0
41.0
48.0
15
55.0
JX-1-EX-52.6
M50*1.5
11/2''-2''
36.0
52.6
53.0
15
65.0
JX-1-EX-65.3
M63*1.5
2''-21/2''
46.0
65.3
58.0
15
80.0
JX-1-EX-78
M70*2.0
21/2''-3''
57.0
78.0
65.0
15
90.0
