Armored Ex Cable Gland Cw Cable Gland Korean Type
Yueqing Jixiang Connector Co., Ltd.- Certification：RoHS, ISO, CE, Atex
- Surface Treatment：Electroplating
- Color：Metallic
- IP Rating：IP66
- Material：Brass
- Type：Straight Head
Base Info
- Model NO.：NPT1,2
- Fuction：Protect Wires Safely
- Benefit：Free Samples
- Temperature：-40 to 100 Degree
- Locknut：Brass
- Shroud：PVC
- Customization：Thread Length Can Be Increased

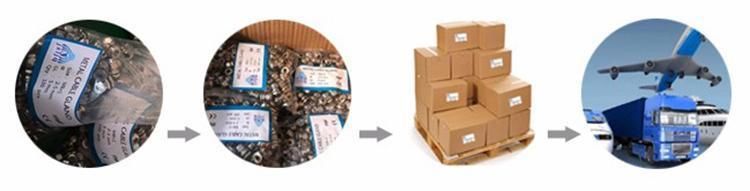

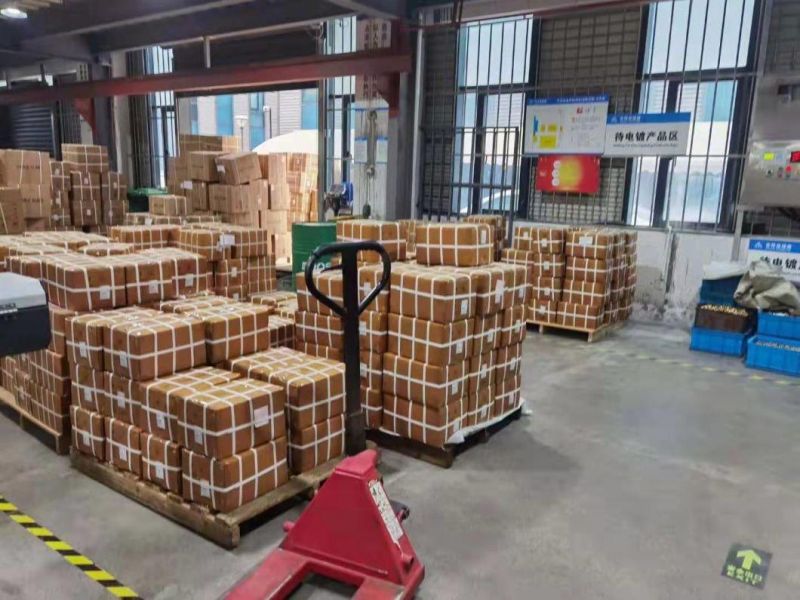

- Transport Package：50 PCS Per Bag
- Specification：m type
- Trademark：JIXIANG
- Origin：Zhengjiang Province, Cn
- HS Code：33039649
- Production Capacity：2000 PCS , Week
Description
Metric, NPT ThreadCode Entry Thread Cable Dia Thread length L(mm) Entry Hole Size (mm) Armor Braid Hexagon
Dimensions "H" Metric NPT Outer A Metric NPT Metric NPT Size Size JX-CW-16A M16/M20 1/2'' 8-13 15 15 17/21 22 0.9/1.25 0.05/0.8 H25*27 JX-CW-16B M16/M20 1/2'' 12-15.1 15 15 17/21 22 0.9/1.25 0.05/0.8 H25*27 JX-CW-20A M20 1/2''/ 3/4'' 13-17.5 15 15/16 21 22/27 0.9/1.25 0.05/0.8 H31*34 JX-CW-20B M20 1/2''/ 3/4'' 16-19.5 15 15/16 21 22/27 0.9/1.25 0.05/0.8 H31*34 JX-CW-25A M25 3/4'' / 1'' 17.5-22 15 16/18 26 27/34 1.25/1.6 0.05/0.8 H36*39 JX-CW-25B M25 3/4'' / 1'' 21-26 15 16/18 26 27/34 1.25/1.6 0.05/0.8 H36*39 JX-CW-32A M32 1'' / 1.1/4'' 22-28 15 18/19 33 34/43 1.6/2.0 0.05/1.2 H45*49 JX-CW-32B M32 1'' / 1.1/4'' 27-32 15 18/19 33 34/43 1.6/2.0 0.05/1.2 H55*59 JX-CW-40A M40 1.1/4'' / 1.1/2'' 30-35 15 19/21 41 43/50 1.6/2.0 0.05/1.2 H55*59 JX-CW-40B M40 1.1/4'' / 1.1/2'' 35.1-40 15 19/21 41 43/50 1.6/2.0 0.05/1.2 H68*73 JX-CW-50A M50 1.1/2'' / 2'' 38-45 15 21/24 51 50/62 1.8/2.5 0.05/1.2 H68*73 JX-CW-50B M50 1.1/2'' / 2'' 43-50 15 21/24 51 50/62 1.8/2.5 0.05/1.2 H82*88 JX-CW63A M63 2'' / 2'' 48-53 15 24/24 64 62/74 1.8/2.5 0.05/1.2 H82*88 JX-CW63B M63 2'' / 2.1/2'' 51-56 15 24/27 64 62/74 1.8/2.5 0.05/1.2 H82*88 JX-CW63C M63 2'' / 2.1/2'' 55-60 15 24/27 64 62/74 1.8/2.5 0.05/1.2 H98*106 JX-CW75A M75 2.1/2'' / 2.1/2'' 56-62 20 27/27 76 74/90 1.8/2.5 0.05/1.2 H98*106 JX-CW75B M75 2.1/2'' / 2.1/2'' 62.1-66 20 27/27 76 74/90 1.8/2.5 0.05/1.2 H98*106 JX-CW75C M75 2.1/2'' / 3'' 66.1-70 20 27/30 76 74/90 1.8/2.5 0.05/1.2 H98*106 JX-CW75D M75 2.1/2'' / 3'' 68-75 20 27/30 76 74/90 1.8/2.5 0.05/1.2 H98*106 JX-CW90A M90 3'' / 3.1/2'' 74-83 25 30/32 91 90/102 1.8/3.0 0.05/1.6 H110*120 JX-CW90B M90 3'' / 3.1/2'' 82-90 25 30/32 91 90/102 1.8/3.0 0.05/1.6 H110*120 JX-CW100A M100 3.1/2'' / 4'' 89-94 25 30 101 102/116 1.8/3.0 0.05/1.6 H120*130 JX-CW100B M100 3.1/2'' / 4'' 93-98 25 30 101 102/116 1.8/3.0 0.05/1.6 H120*130
Dimensions "H"
More size information, kindly contact us directly.. We provide customization service !
