• Model NO.：G1,4-G2-1,2 , NPT1,4-npt2
• Claw：PA
• Transport Package：Standard Export Package
• Specification：36*26*19
• Trademark：Jixiang
• Origin：Zhejiang
• HS Code：8547200000
• Production Capacity：1000000piece,Year

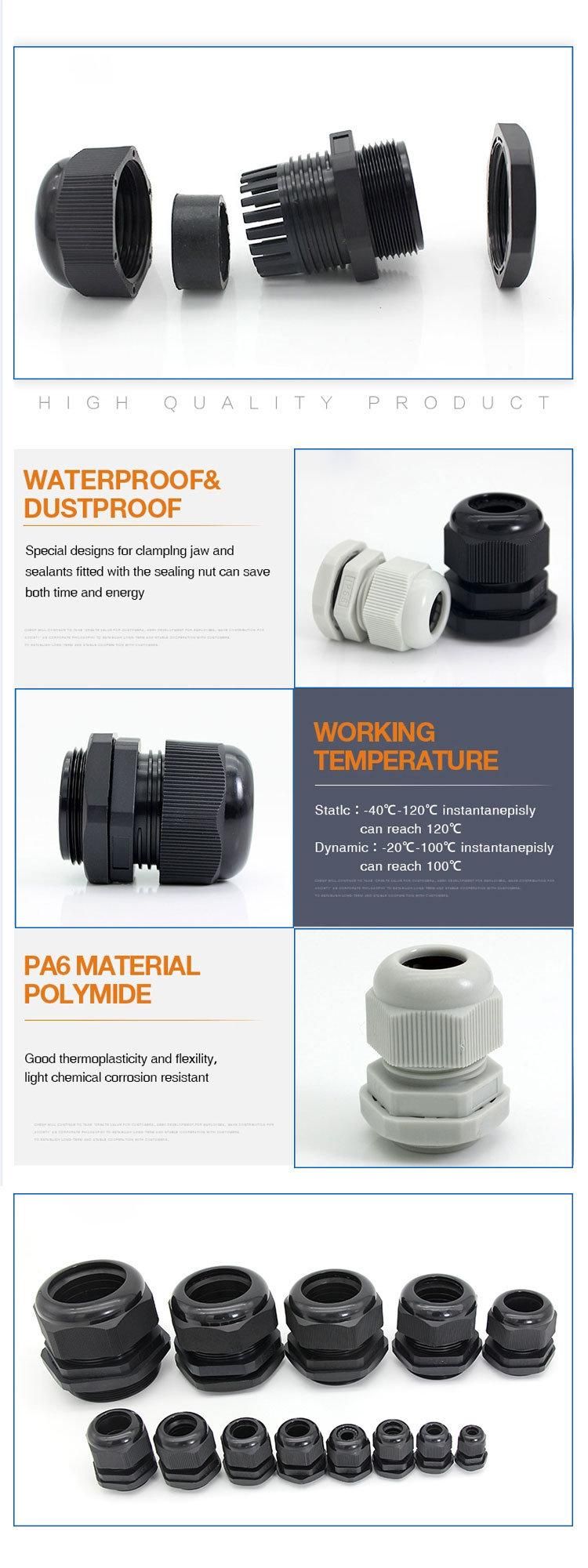

Thread Size: G.NPT ThreadMaterial:UL approved- Nylon PA66 ( Flammability UL94V-2) for A.C.F Parts. See Below Drawing. ( Accept to make flammability UL V-0); EPDM rubber is for B.D parts. (Accept to make supper rubber : resist high temperature rubber, resist strong acid/alcohol,etc). Product Certification:CE certification, ROHS certification and ISO9001.Protection Degree:IP68- 10 BARWorking temperature:-40ºCto 100ºCin static state, or instantaneous heat resistance up to 120ºC; -20ºCto 80ºCin dynamic state, or instantaneous heat resistance up to 100ºC.Characteristics:The claws and seals of excellent design,sealing nut hace a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistance to salt water, weak acid,alcohol,oil,grease and common solvency.Colors:Black(RAL9005),Gray(RAL7035),other colors are available upon requests.More options:Customization is acceptable. Welcome to inquire.



United Structure Nylon Cable Gland-- NPT,G thread

Product Code

Thread  AG

Cable range(mm)

Thread O.D. C1(mm)

Thread length GL(mm)

Spanner Size (mm)

JX-NLG1/4A-UN

G1/4''

3-5.3

13.157

8.5

19/19

JX-NLG1/4B-UN

4-8

13.157

8.5

19/19

JX-NLG3/8A-UN

G3/8''

3-7

16.662

10

22/22

JX-NLG3/8B-UN

5-10

16.662

10

22/22

JX-NLG1/2A-UN

G1/2''



5-9

20.955

10

27/24

JX-NLG1/2B-UN

6-12.5

20.955

10

27/24

JX-NLG3/4A-UN

G3/4''

7-13

26.441

12

36/33

JX-NLG3/4B-UN

12.5-18

26.441

12

36/33

JX-NLG1A-UN

G1''

15-22

33.249

15

46/41

JX-NLG1B-UN

17-25

33.249

15

46/41

JX-NLG1 1/4A-UN

G11/4''

17-25.5

41.91

15

57/52

JX-NLG1 1/4B-UN

30-41

41.91

15

57/52

JX-NLG1 1/2A-UN

G11/2''



25-32

48

15

60/62

JX-NLG1 1/2B-UN

24-32

48

15

60/62

JX-NLG2A-UN

G2''

29-38

60

18

60/62

JX-NLG2B-UN

39-45.5

60

18

60/62

JX-NLNPT1/4A-UN

NPT1/4''



3-5.3

13.157

8.5

19/19

JX-NLNPT1/4B-UN

4-8

13.157

8.5

19/19

JX-NLNPT3/8A-UN

NPT3/8''

3-7

16.662

10

22/22

JX-NLNPT3/8B-UN

5-10

16.662

10

22/22

JX-NLNPT1/2A-UN

NPT1/2''



5-9

20.955

10

24/24

JX-NLNPT1/2B-UN

6-12.5

20.955

10

24/24

JX-NLNPT3/4A-UN

NPT3/4''

7-13

26.441

15

33/33

JX-NLNPT3/4B-UN

12.5-18

26.441

15

33/33

JX-NLNPT1A-UN

NPT1''



15-22

33.249

15

41/41

JX-NLNPT1B-UN

17-25

33.249

15

41/41

JX-NLNPT1 1/4A-UN

NPT11/4''

17-25.5

41.91

15

52/52

JX-NLNPT1 1/4B-UN

24-32

41.91

15

52/52
