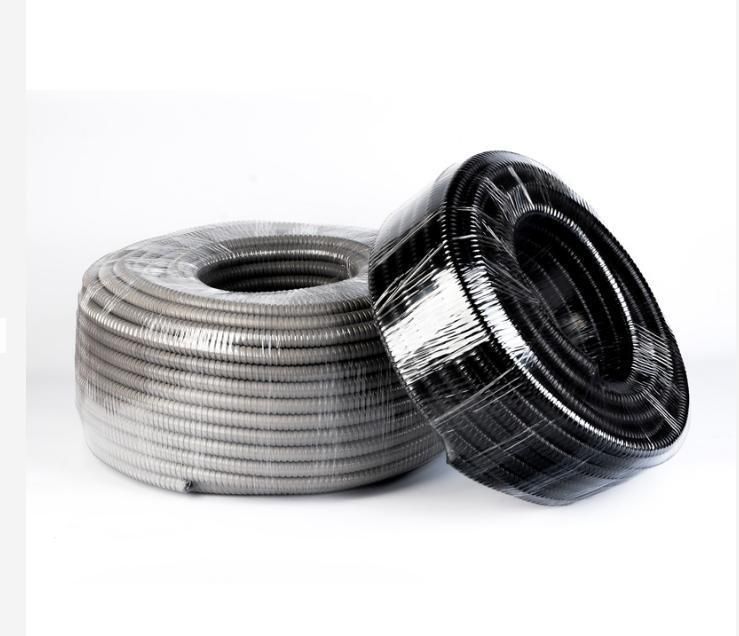

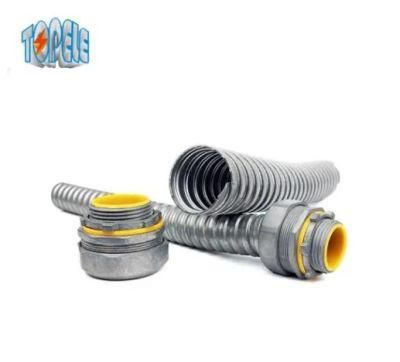

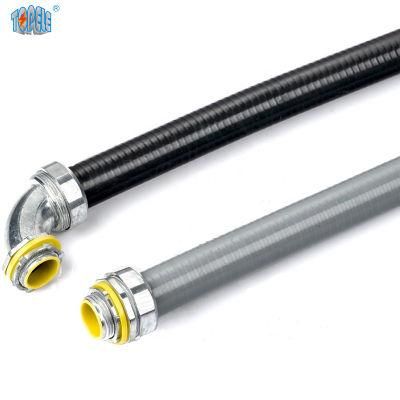

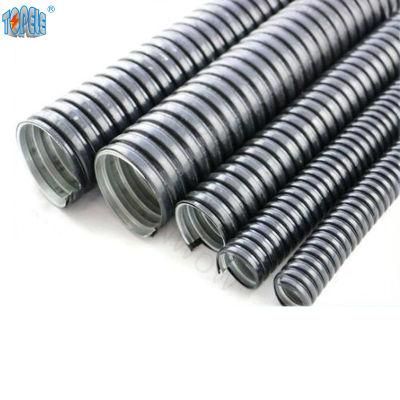

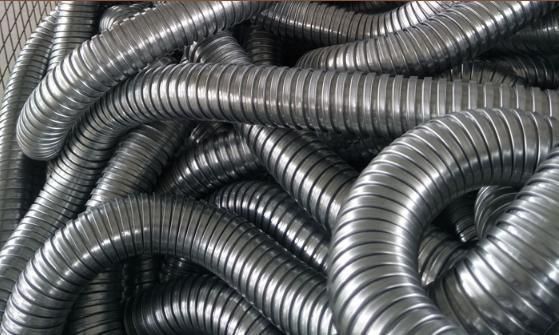

PVC Coated Flexible Galvanized Steel Corrugated Metal Conduit for Network Cables
TOPELE ENTERPRISE CO., LTD.- Color：Grey
- IP Rating：IP68
- Surface Treatment：Galvanised
- Application：Electrical Wiring
- Material：Carbon Steel
- Certification：UL
Base Info
- Model NO.：PVC COATED FLEXIBLE CONDUIT
- Length：50mm or as Customers′ Requirements
- Inside Diameter：12.3-102.60
- Transport Package：Packed in Bundles with Woven Bag
- Specification：3,8"-4"
- Trademark：TOPELE
- Origin：Hangzhou, China
- HS Code：72169100
Description
TOPELE#SIZE Inside Diameter Outside Diameter Min.Bend Meters Min(mm) Max(mm) Min(mm) Max(mm) GFC01 3/8" 12.3 12.80 15.70 16.20 33 50 GFC02 1/2" 15.8 16.30 19.20 19.70 38 50 GFC03 3/4" 20.70 21.20 24.50 25.10 45 50 GFC04 1" 26.00 26.60 30.40 31.00 55 50 GFC05 1-1/4" 34.70 35.40 39.60 40.30 62 30 GFC06 1-1/2" 40.00 40.60 45.20 45.80 90 30 GFC07 2" 51.30 51.90 56.50 57.10 110 20 GFC08 2-1/2" 63.00 63.60 70.20 70.80 130 10 GFC09 3" 78.00 78.70 85.20 85.90 160 10 GFC10 4" 101.60 102.60 108.50 109.50 210 10
Packing & Shipping
Flexible conduit are packed in bundles with woven bag, we also can put customers' sticker on pipes,woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. For regular packing information, please check the Table .
