• Model NO.：FTTX-PT-J16
• Port Number：<8
• Usage：Fiber
• Type：Terminal Box
• Box Type：Wall-Mounted Type or Pole Mounted
• Fiber Tray Capacity：16
• Size(mm)：292*218*83
• No. of Ports：2 Input Ports and 16 Output Ports
• Transport Package：Paper Box
• Specification：size
• Trademark：Softel
• Origin：China
• HS Code：85176229
• Production Capacity：1000 Set Per Week
• Package size per unit product：30.00cm * 22.00cm * 9.00cm
• Gross weight per unit product：1.400kg

Basic Info.

Model NO. FTTX-PT-J16 Port Number <8 Usage Fiber Type Terminal Box Box Type Wall-Mounted Type or Pole Mounted Fiber Tray Capacity 16 Size(mm) 292*218*83 No. of Ports 2 Input Ports and 16 Output Ports Transport Package Paper Box Specification size Trademark Softel Origin China HS Code 85176229 Production Capacity 1000 Set Per Week

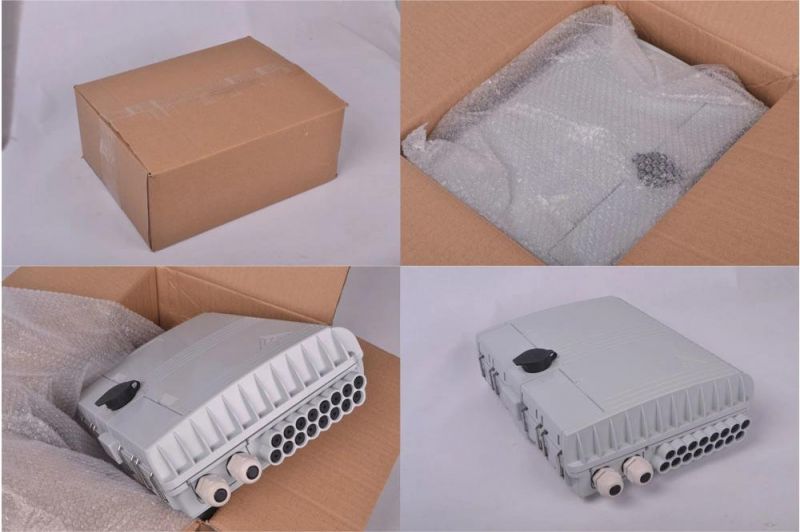

Packaging & Delivery

Package size per unit product 30.00cm * 22.00cm * 9.00cm Gross weight per unit product 1.400kg

Product Description

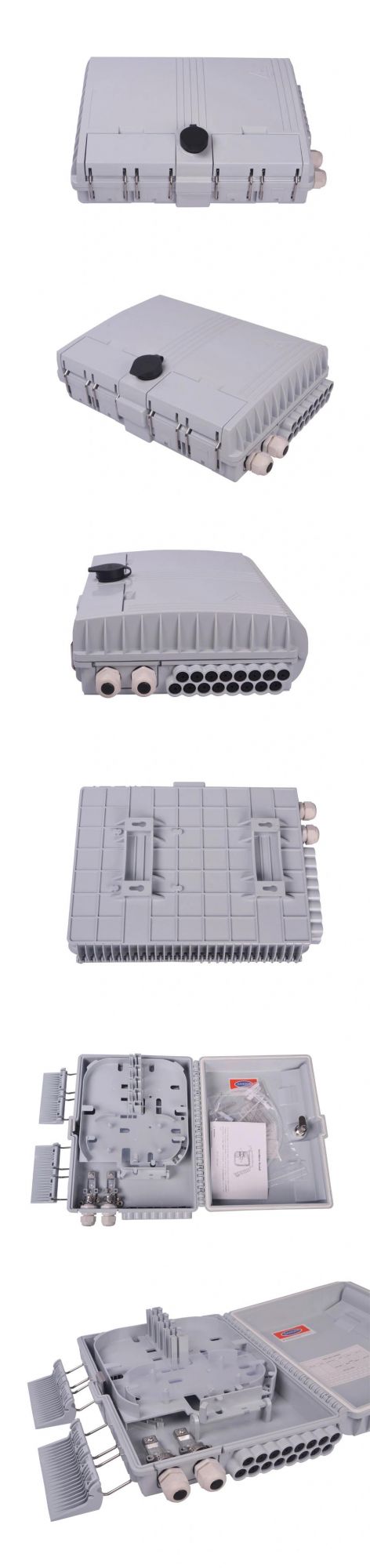

                     FTTH 16 core fiber optic terminal box



Description:

FTTX-PT- J16  fiber access termination box is able to hold up 16 subscribers. It is used as a termination point for the feeder cable to connect to drop cable in FTTX network system. It intergrates fiber splicing, splitting, distridution, storage and cable connection in one solid protection box

Features:

Interwater-proof design with IP 66 protection level

Intergrated with splice cassette and cable management rods

Manage fibers in a reasonable fiber radius condition

Easy to maintain and extend the capacity

Fiber bend radius control more than 40mm

Suitable for the fusion splice or mechanical splice

1*16 splitter can be installed as an option.

Efficient cable management

16 ports cable entrance for drop cable

Specifications:

Model	FTTX-PT-J16
Box material	PC+ABS
Fiber capacity	16
Size(mm)	292x 218 x 83
Single Weight(kg)	1.4kg
Installtion size  D*E(mm)	154*82
