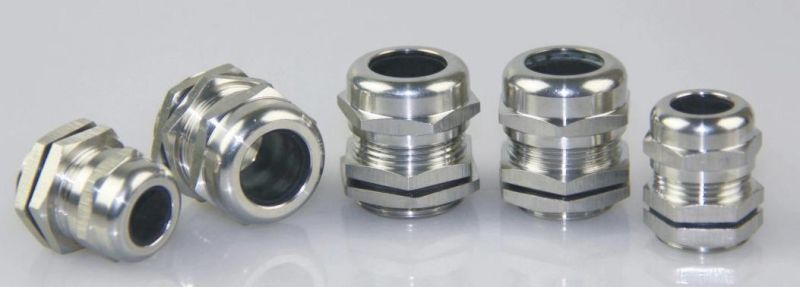

SS304 M10 Stainless Steel Cable Glands

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, ISO, CE
  • Surface Treatment：Electroplating
  • Color：Metallic
  • IP Rating：IP68
  • Material：Stainless Steel
  • Type：Straight Head

Base Info

  • Model NO.：M10
  • Fuction：Protect Wires Safely
  • Benefit：Free Samples
  • Temperature：-40 to 100 Degree
  • Claw：PA
  • Sealing Ring：NBR
  • Sealing Rubber：NBR
  • Transport Package：100,50 PCS Per Bag
  • Specification：Metric type
  • Trademark：JIXIANG
  • Origin：Zhengjiang Province, Cn
  • HS Code：33039649
  • Production Capacity：30000 PCS , Week

Description

Product Name:Waterproof cable glandMain material:SS304 / SS316Standard size:M8-M120; PG7-PG63; NPT1/4-NPT3; G1/4 -G3Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availableSS304 M10 Stainless Steel Cable GlandsSizesCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)M8x12-58512M10x13-6.510714M12x1.53-6.512714M14x1.54-814717M16x1.54-816818M18x1.55-1018820M20x1.56-1220822cM24x1.510-1424924/27M28x1.513-1828930M32x1.515-22321035.........................M100x270-8010015110PG73-6.512.5714PG94-815.2818PG115-1018.6820/21PG13.56-1220.4822PG1610-1422.5924PG2113-1828.3930/32.........................PG6342-52721578NPT1/43-6.513.6714NPT3/84-817818NPT1/26-1221.2822NPT3/413-1826.5930NPT118-2533.21140.........................NPT365-7088.61598G1/43-6.513.1714G3/84-816.6818G1/26-1220.9822G3/413-1826.4930G118-2533.21140.........................G365-7087.81594

More size information, kindly contact us directly.. We provide customization service !
