• Model NO.：PG7-PG36
• Certificate：CE RoHS
• Thread：Pg Metric NPT G
• Claw：PA
• Working Temperature: Static：-40~100
• Factory Report：ISO90001
• Seal Material：NBR
• Advantages：Fast Delivery
• Transport Package：Standard Export Carton
• Trademark：JXLJQ
• Origin：China Mainland
• HS Code：8547901000
• Production Capacity：1000000piece,Year

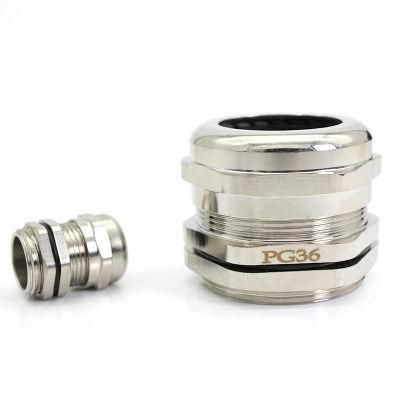

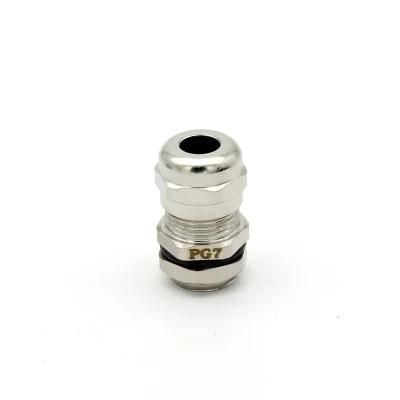

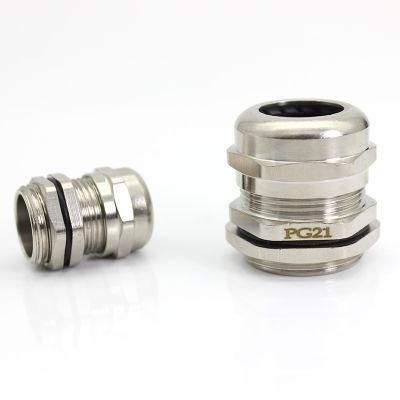

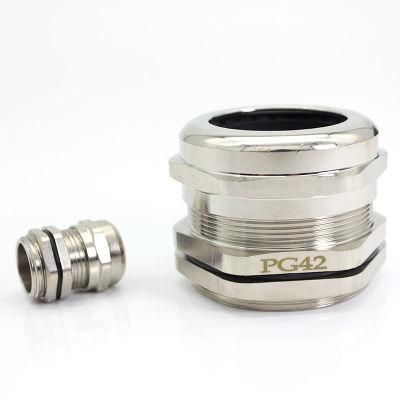

PG cable gland explosion proof type cable accessories

Material

 Made of nickel-plated brass

Standard Thread

 PG Thread

Claw

 PA

Sealing & Sealing Ring

 Made of NBR

Approvals

 CE, ROHS, REACH, ISO9001

Protection Degree

 IP68

Temperature Resistance

 Static state: -40ºC to 100ºC, short time to 120ºC; dynamic state:   -20ºC to  800ºC, short time to 100ºC



Function

 Standard thread type is used for the equipment which has inner thread or for  the thin board. Short thread type is used for the thin board. Long thread type  is used for the thick board.





Usage

 Waterproof brass cable gland is the product of form a complete set of the  cable, connector cable can be lock, the other end can access devices on the  box body, also can choose thread access according to the import and export  for internal thread electric devices.

Notes

 Customization is available.

  Model Cable range(mm) Thread O.D. AG(MM) Thread lenghth H(mm) Spanner size(mm)   PG7          3-6.5            12.5                 7             14   PG9           4-8            15.2                 8             17  PG11          5-10            18.6                 8             20 PG13.5          6-12            20.4                 8             22  PG16         10-14            22.5                 9             24  PG19         10-14             25                 9          24/27  PG21         13-18            28.3                 9             30  PG25         15-22             32                10             35  PG29         18-25             37                11             40  PG36         25-33             47                12             50  PG42         32-38             54                13             57  PG48         37-44           59.3                14             65  PG63         42-52             72                15             77
