• Model NO.：PG29
• Cable Range：18-25mm
• Body Material：Nylon
• Basket：NBR
• Working Tempearture：-40~100 Static , -20~80 Dynamic
• Transport Package：According to The Standard Export
• Specification：PG16
• Trademark：UTL
• Origin：China
• HS Code：8536909000
• Production Capacity：20000PCS,Day

Basic Info.

Model NO. PG29 Cable Range 18-25mm Body Material Nylon Basket NBR Working Tempearture -40~100 Static / -20~80 Dynamic Transport Package According to The Standard Export Specification PG16 Trademark UTL Origin China HS Code 8536909000 Production Capacity 20000PCS/Day

Product Description

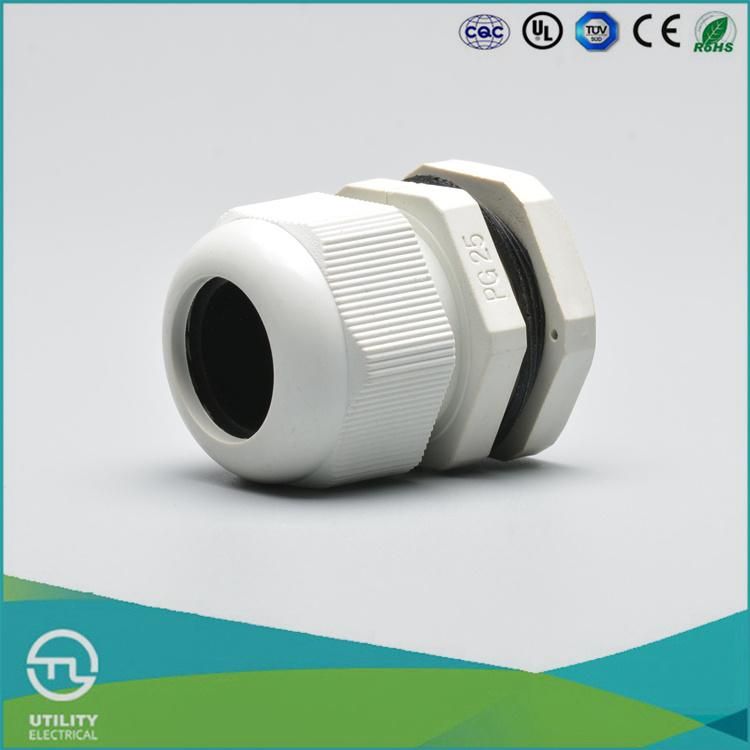

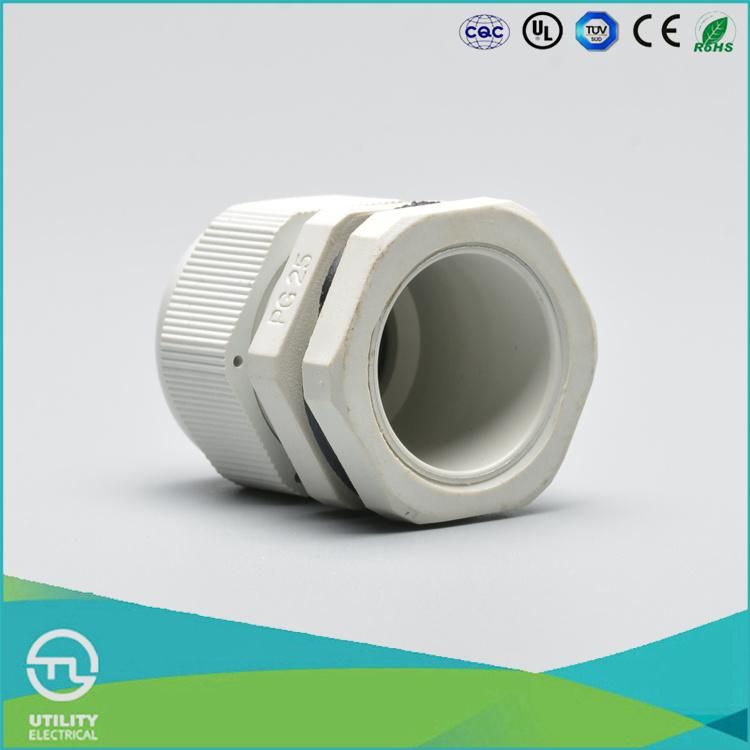

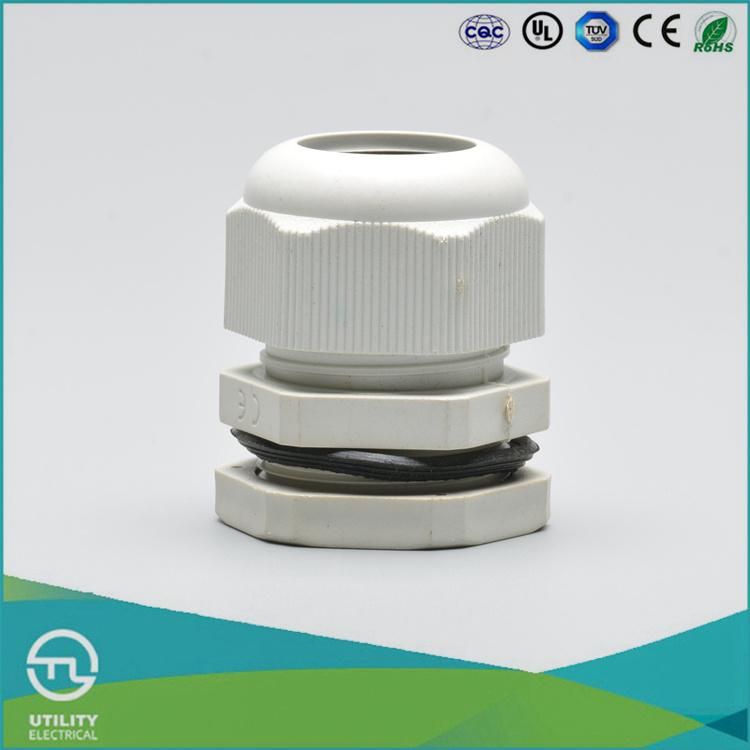

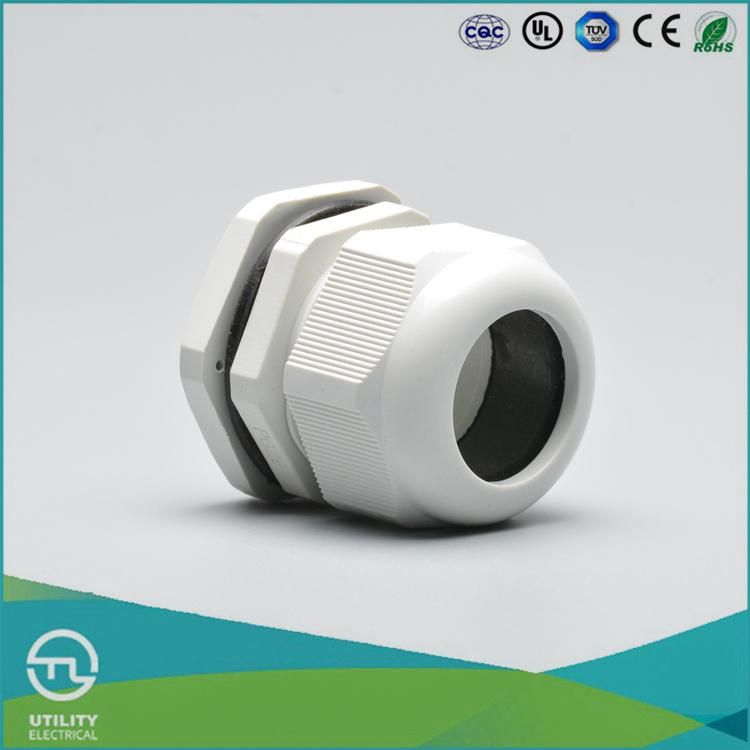

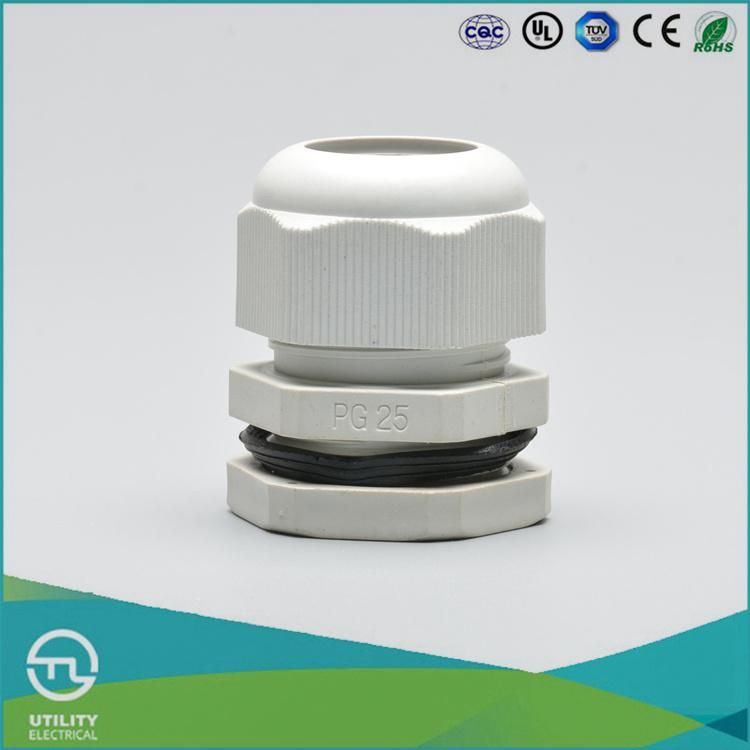

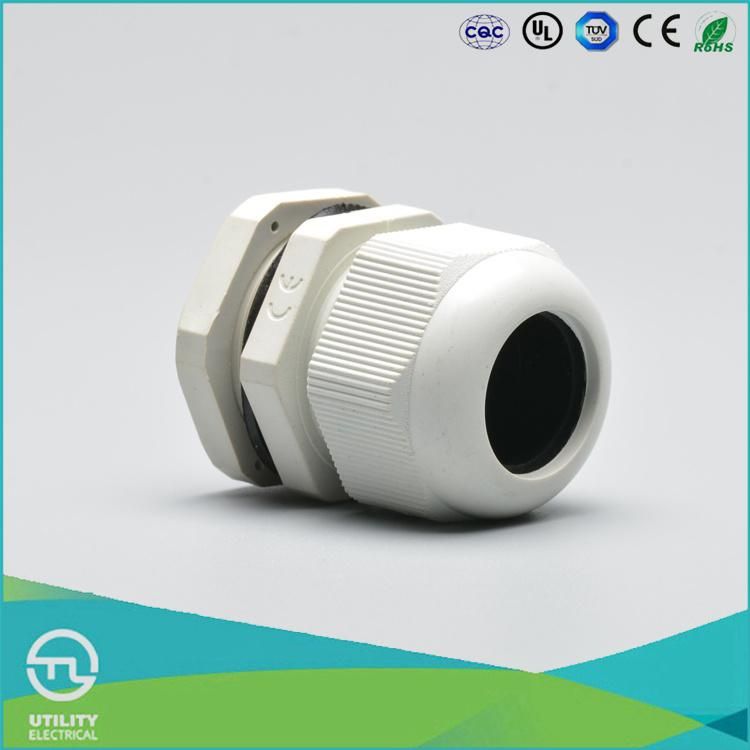

UTL high quality IP68 Waterproof Plastic Cable Gland








Parameter

Brand Name	UTL
Cable Range	16-21mm
Body Material	Nylon
Basket	NBR
Working Tempearture	-40~100 static  / -20~80 dynamic

PG and M type

Model	Model	Cable Range
PG7	M12*1.5	3-6.5mm
PG9	M16*1.5	4-8mm
PG11	M18*1.5	5-10mm
PG13.5	M20*1.5	6-12mm
PG16	M22*1.5	10-14mm
PG19	M24*1.5	12-15mm
	M25*1.5
PG21	M27*1.5	13-18mm
PG25	M30*1.5	16-21mm
PG24	M32*1.5
PG29	M36*1.5	18-25mm
PG36	M40*1.5	22-32mm
PG42	M50*1.5	32-38mm
PG48	M63*1.5	37-44mm
PG63		42-50mm

NPT type

Model No	Cable Range (mm)
NPT 1/4	3-6.5
NPT 3/8	4-8
NPT 1/2	6-12
NPT 3/4	13-18
NPT 1	18-25
NPT 1 1/4	18-25
NPT 1 1/2	22-32
NPT 2	37-44

BSP type

Model No	Cable Range (mm)
BSP 1/4	3-6
BSP 3/8	5-10
BSP 1/2	6-12
BSP 3/4	13-18
BSP 1	18-25
BSP 1 1/4	22-32
BSP 1 1/2	32-38
BSP 2	37-44



Service

• We produce:Terminal blocks , cold connectors , crimping machine , push button , indicator light , cable gland , waterproof box
•  We can supply you all these electric components toghther, saving your time serching

Company Information

UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .

   The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.

UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .   The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.




Work Shop
UTILITY are Cengcengbaguan accordance with the appropriate standards by the professional staff to produce marketable, used worldwide industrial automation products as their responsibility to actively follow the introduction, learn technology, science and technology innovation internationally famous brand products, forge ahead.

    "UTILITY" service drew our customers appreciated."Takeoff UTILITY, proud UTILITY man",who is the UTILITY with advanced management,strong technical strength, perfect process technology,first-class testing equipment and excellent mold processing technology to produce the premise of higher quality products,with excellent sales team,well sales network and professional services,open up the market to win a new chapter today.



Certificate

UTILITY painstaking research of the IEC, UL, CSA, GB, CE, CCC and other international and domestic standards for terminals, and in accordance with these standards preparing their own more stringent corporate standards, from the development, mold design, raw material procurement, production, plastic parts molding products, metal parts, to finished product assembly and quality testing, packaging, shipping, etc.
