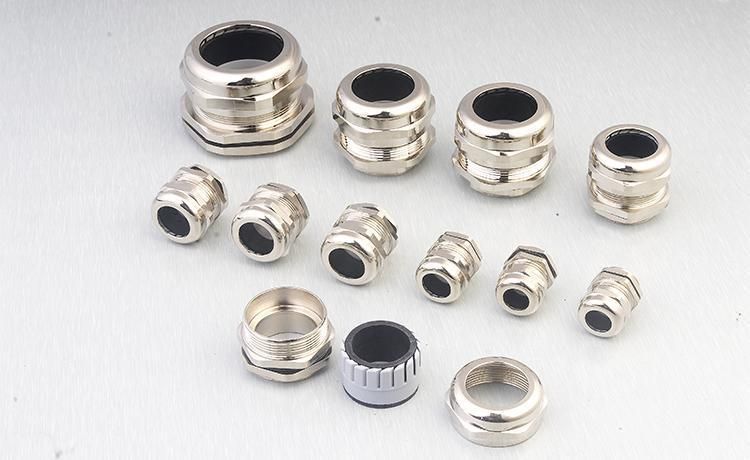

Nickel Plated Brass Waterproof Cable Gland

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：Electroplating
  • Color：Metallic Color
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：Metric , PG , G , NPT
  • Cable Gland：Waterproof
  • Main Material：Nickel-Plated Brass
  • Claw：Nylon (PA66)
  • Seal & O Ring：Rubber
  • Thread Length：Standard & Customization
  • Other Size：Customization
  • Transport Package：Standard Export Carton
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：8547901000
  • Production Capacity：50000PCS,Month

Description

Product Name:Waterproof cable glandMain material:Nickel-plated brassStandard size:M8-M120; PG7-PG63; NPT1/4-NPT3; G1/4 -G3Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is available
Nickel Plated Brass Waterproof Cable GlandSizesCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)M8x12-58512M10x13-6.510714M12x1.53-6.512714M14x1.54-814717M16x1.54-816818M18x1.55-1018820M20x1.56-1220822cM24x1.510-1424924/27M28x1.513-1828930M32x1.515-22321035.........................M100x270-8010015110PG73-6.512.5714PG94-815.2818PG115-1018.6820/21PG13.56-1220.4822PG1610-1422.5924PG2113-1828.3930/32.........................PG6342-52721578NPT1/43-6.513.6714NPT3/84-817818NPT1/26-1221.2822NPT3/413-1826.5930NPT118-2533.21140.........................NPT365-7088.61598G1/43-6.513.1714G3/84-816.6818G1/26-1220.9822G3/413-1826.4930G118-2533.21140.........................G365-7087.81594

More size information, kindly contact us directly.. We provide customization service !
