New Type ADSS Fiber Cable Suspension Clamp
Qingdao Powtech Electronics Co., Ltd.- Installation:Through Stainless Steel Strap
- Type:Insulated
- Conductor Type:Stranded
- Application:Overhead, Underground
- Conductor Material:Aluminum
- Insulation Material:PE
Base Info
- Model NO.:AQX
- Material Shape:Round Wire
- Range of Application:Cold-Resistant
- Certification:Ce, RoHS, ISO9001, CCC
- Transport Package:Wooden Case
- Specification:CE, RoHS
- Trademark:Powtech
- Origin:China
- HS Code:76109090
- Production Capacity:10000PCS,Month
Description
Basic Info.
Model NO. AQX Material Shape Round Wire Range of Application Cold-Resistant Certification Ce, RoHS, ISO9001, CCC Transport Package Wooden Case Specification CE, RoHS Trademark Powtech Origin China HS Code 76109090 Production Capacity 10000PCS/MonthProduct Description
New Type ADSS Fiber Cable Suspension ClampDescription:
The ADSS suspension clamp is used to connect the ADSS cables on the straight poles/towers.
ADSS suspension features
(1)ADSS suspension clamp has greater interface with ADSS cables. Stress is distributed equally without stress focus. ADSS suspension clamp can protect optical cables very well and can improve the intensity of cable line installation point.
(2)ADSS suspension clamp has higher supporting capability of dynamic stress. The ADSS suspension clamp can supply enough grip strength (10%RTS)in order to ensure the safety of ADSS cables under imbalanced load for long time.
(3)The gentle rubber clamp pieces improve self-damping and reduce abrasion.
(4)The smooth shape of the ends improve the discharging voltage and reduce the loss of electric power.
(5)The superior aluminum alloy materials have higher comprehensive mechanical performance and corrosion resisting capability, which extends the lifetime usage.
ADSS suspension clamp standard compliance:
DL/T767-2003 preformed helical fittings for ADSS
ADSS suspension clamp data sheet:
(1)Choose ADSS suspension clamp model according to the parameters(such as operating span, diameter, rated tensile strength) of the ADSS cables.
(2)Installation: Straight pole or tower
(3)RTS: 20KN
(4) Span length: 0~200m

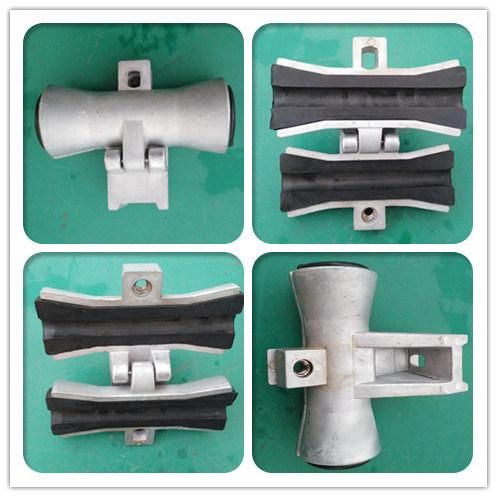

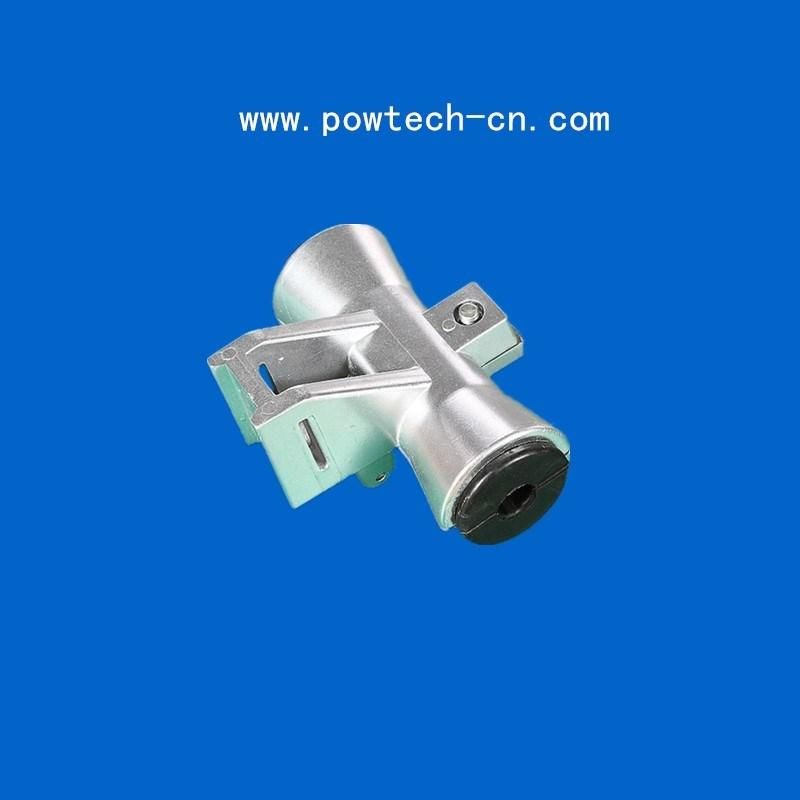

Detailed Images:
Technical Specifications:
Product Model | Cable Diameter (mm) | Armor Rods (mm) |
AQXM 100-12 | 9.0-12 | 0 |
AQXM 100-14 | 12-14 | 0 |
AQXM 100-16 | 14-16 | 0 |
AQXM 100-18 | 16-18 | 0 |

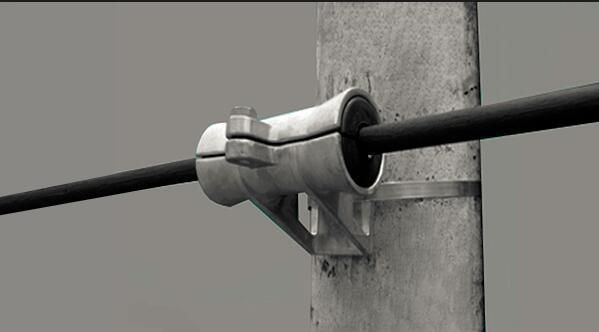

Installation:

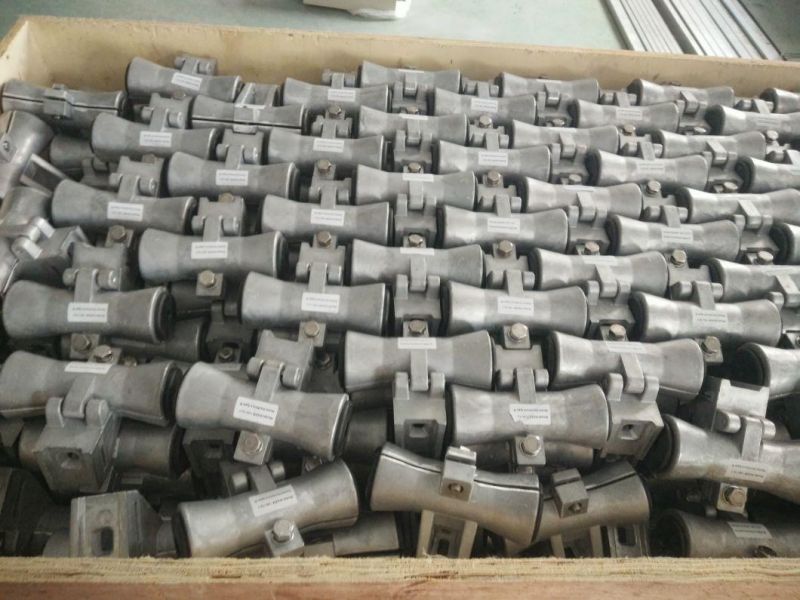

Production Line:
Certificate:
Advantages:
Reliability
Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.
Why Choose Us?
1.Strict quality control system
2.Factory direct-sales,Lower purchasing cost
3.Professional,efficient after-sales service,Time and manpower saving
4.Experienced workers team,Advanced technicians,Sophisticated equipment
5.Small trial order/OEM product/artwork is acceptable
6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated
FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.
Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.
Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.
Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.
Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
