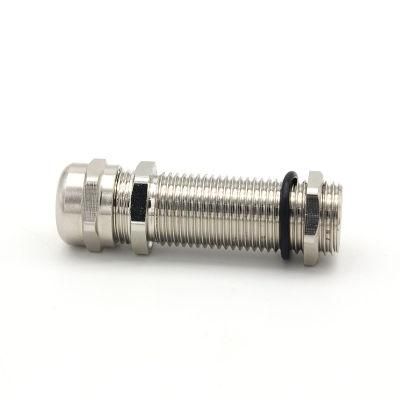

Waterproof IP68 Long Thread Brass Metal Cable Gland M14 *1.5
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, TUV
- Surface Treatment：Electroplating
- Color：Metallic Color
- IP Rating：IP68
- Material：Nickel Plated Brass
- Type：Straight Head
Base Info
- Model NO.：M8-M100
- Factory Report：ISO90001
- Thread Type：Metric
- Claw：PA
- Seal Material：NBR
- Working Temperature：-40~100, Short Time to 120
- Transport Package：Standard Export Carton
- Specification：Customization
- Trademark：JXLJQ
- Origin：China Mainland
- HS Code：8547901000
- Production Capacity：3000000PCS,Month
Description
Longer Thread Type Waterproof Brass Cable GlandThread Size Cable Range Thread O.D Thread Length Joint Length Spanner Size M8*1 2-5 8 8 16 12 M10*1 3-6.5 10 10 19 14 M12*1.5 3-6.5 12 10 19 14 M14*1.5 4-8 14 12 19 17 M16*1.5 4-8 16 12 20 18 M18*1.5 5-10 18 12 21 20 M20*1.5 6-12 20 12 22 22 M22*1.5 10-14 22 12 23 24 M24*1.5 10-14 24 12 25 24/27 M25*1.5 10-14 25 12 25 24/27 M25*1.5 13-18 25 12 27 30/27 M27*1.5 13-18 27 12 27 30 M28*1.5 13-18 28 12 27 30 M30*1.5 13-18 30 14 29 30/32 M32*1.5 15-22 32 14 29 35 M33*1.5 15-22 33 14 29 35 M36*1.5 18-25 36 14 31 40 M37*1.5 18-25 37 14 31 40 M40*1.5 18-25 40 15 31 40/45 M40*1.5 22-30 40 15 35 45 M42*1.5 22-30 42 15 35 45 M47*1.5 25-33 47 15 37 50 M48*1.5 25-33 48 15 37 50/52 M50*1.5 32-38 50 15 37 57/55 M54*1.5 32-38 54 15 38 57 M60*1.5 37-44 60 16 38 64 M63*1.5 37-44 63 16 38 64/68 M64*2 37-44 64 16 38 64/68 M72*2 42-52 72 18 42 78 M75*2 42-52 75 18 42 78/80 M80*2 62-50 80 20 45 86/88 M88*2 70-60 88 20 45 98 M100*2 80-70 100 22 53 110
