• Model NO.：ODF-D
• Model：Sliding Fod-C
• Application：Hfc, Data Network, FTTX
• Capacity：12-144fiber
• Material：Steel
• Delivery：7 Working Days
• Brand：Softel or OEM
• Size：19 Inch Rack
• Transport Package：Paper Box
• Specification：A Class
• Trademark：Softel
• Origin：China
• HS Code：85176229
• Production Capacity：1000 Set Per Week

Basic Info.

Model NO. ODF-D Model Sliding Fod-C Application Hfc, Data Network, FTTX Capacity 12-144fiber Material Steel Delivery 7 Working Days Brand Softel or OEM Size 19 Inch Rack Transport Package Paper Box Specification A Class Trademark Softel Origin China HS Code 85176229 Production Capacity 1000 Set Per Week

Product Description

Hot Sale 12-144 Core FTTH Fiber Optic Distribution Frame ODF
Descriptions:

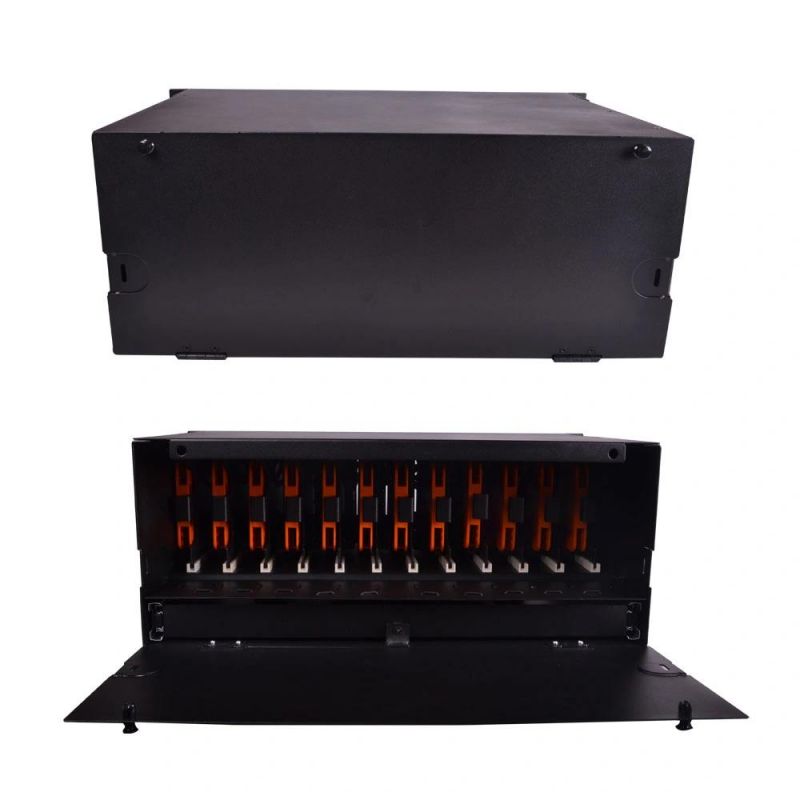

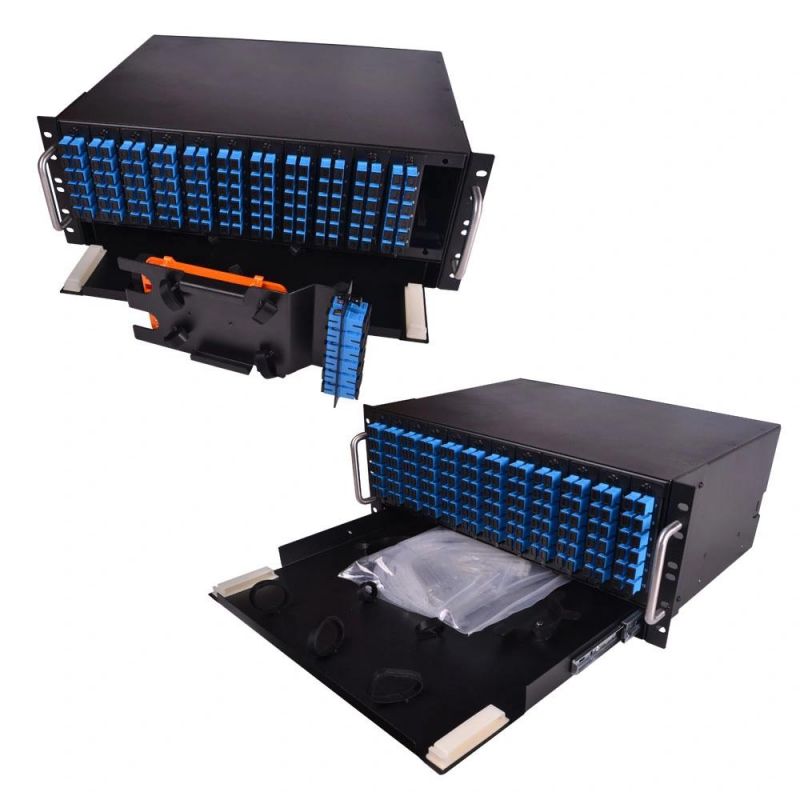

The device, SLIDING-FOD-C, is designed as a drawer that could be pulled out and pushed in easily for convenient operation; 19" standard mounting design is suitable for installing into rack or frame. It is made of metal and could splice and distribute fiber; It neither needs to take the whole box down nor needs to take down the top cover for operation and maintenance.

19" standard mounting with static electric plastic sprayed, nice appearance;
Can be used for ribbon & bunch fiber cables;
Could install FC, SC, ST or FC (duplex) adapter;
Flexible adapter panel is used, making the box more universal for different types of adapters and greatly increase the exchangeability;

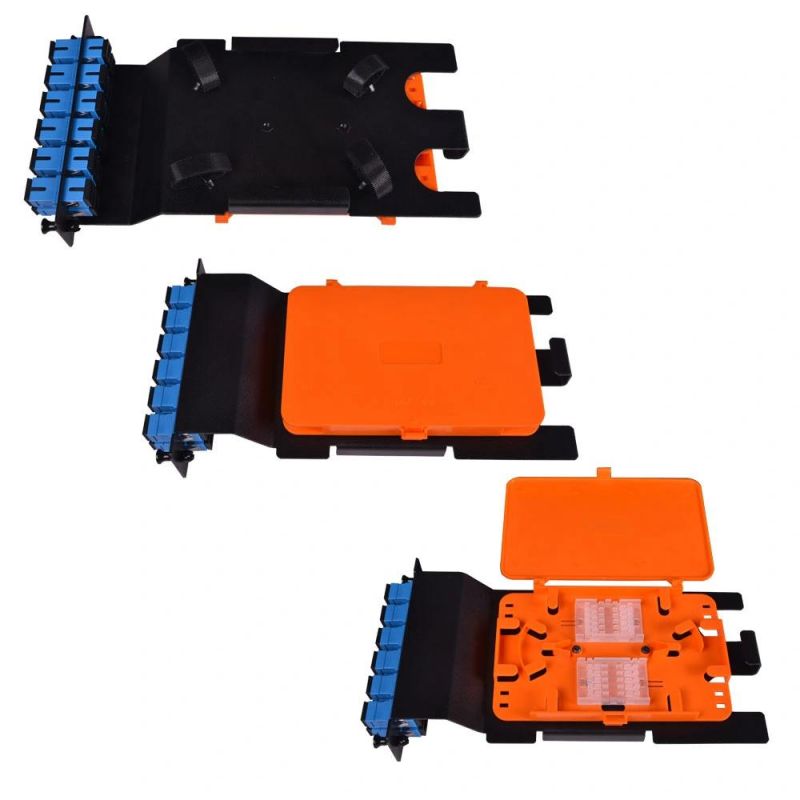

Clear fiber route, pigtails could be coiled and stored on the tray;
Symmetrical side panels, the unique design of inlaid structure for fibers, which makes the inlet of fibers more flexible and convenient;
The depth of installation could be adjusted, and installation and maintenance will be flexible, convenient and universal
Steel core fixed device could be provided according to users' requirement
Its capacity is up to 96 fibers


Specification

Type Dimension Height(U) Capacity(F) Remarks

Sliding-C 24 486× 348× 70 1.6 24 09H4-C1 splice tray
Sliding-C 48 486× 348× 110 2.5 48 09H4-C1 splice tray
Sliding-C 72 486× 348× 150 3.4 72 09H4-C1 splice tray
Sliding-C 96 486× 348× 190 4.3 96 09H4-C1 splice tray






Specifications

Model Size(mm) Max. Core Capacity Splice   T ray Weight(kg) ODF-D-12C 486×270×44.5 24  LC,  12  SC,  12  ST or  12  FC 12   ODF-D-24C 486×270×67 48 LC, 24 SC, 24 ST or 24 FC 12   ODF-D-48C 486×270×128 96  LC,  48  SC,  48  ST or  48  FC 12   ODF-D-72C 486×270×182 144 LC, 72 SC, 72 ST or 72 FC 12   ODF-D-96C 486×270×240 192 LC, 96 SC, 96 ST or 96 FC 12
