ADSS Fitting Universal Pole Bracket with China Factory
Qingdao Powtech Electronics Co., Ltd.- Name：ADSS Fitting Universal Pole Bracket
- Transport Package：Cartons
- Specification：CE, RoHS, SGS, ISO
- Trademark：POWTECH
- Origin：China
Base Info
- Model NO.：UPB
- HS Code：85044020
- Production Capacity：10000PCS,Month
Description
Application:

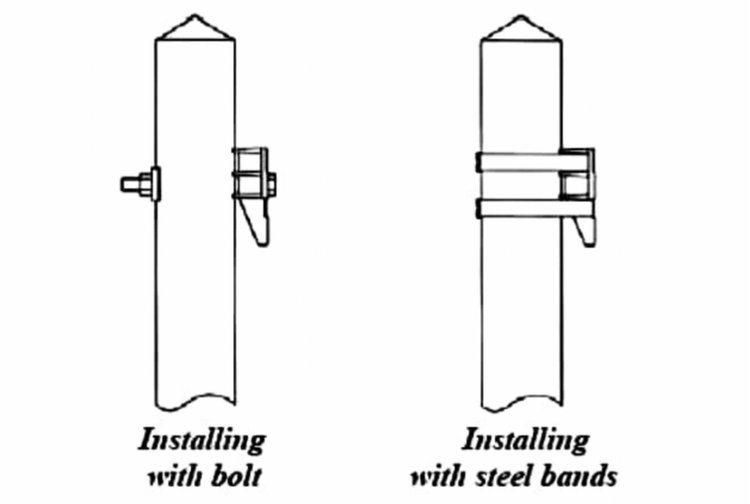

Installation:
With steel bands
The UPB bracket can be installed on any type of pole - drilled or undrilled - with two 20x0.7 mm stainless steel bands SB207 plus two buckles B20 (check our pole banding products). Usually allow two bands of one meter each per bracket.
With bolts
If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16 mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness). Check our bolts.
