• Model NO.：NL
• Length：635mm
• Cable Dia.：6.6mm
• Transport Package：Wooden Cartons
• Specification：RoHS, CE, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：76109090
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. NL Length 635mm Cable Dia. 6.6mm Transport Package Wooden Cartons Specification RoHS, CE, SGS, ISO Trademark OPTELEC Origin China HS Code 76109090 Production Capacity 1000PCS/Day

Product Description

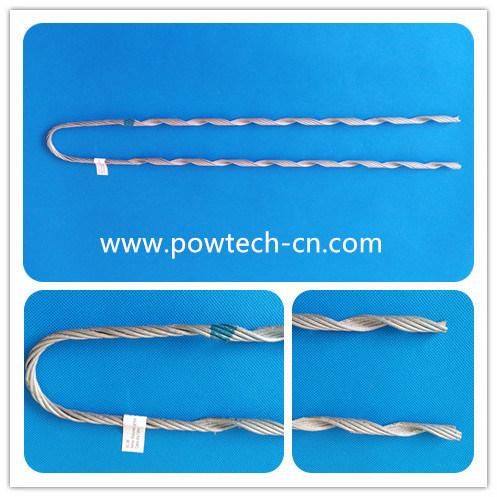

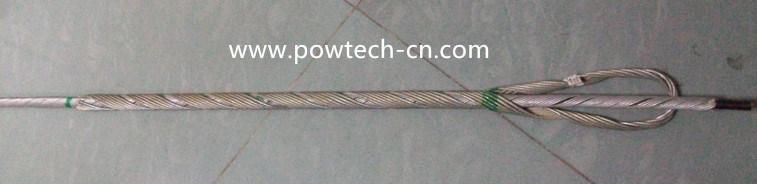

The preformed dead-ends for ADSS cable/ ADSS cable fittings


Product features:
1.materials:aluminium clad steel
2.bigger strength of tension
3.ISO9001 certificated
4.top quality ,best price
5.professional technical service

Usage:
The preformed dead-ends component are used to protect conductors so as to reduce vibration.

The distribution-grip dead-ends can improve self-damping and reduces abrasion. The galvanized steel materials make it have spendid mechanical performance and corrosion resistance.

The distribution-grip dead-end is easy to install and one person can finish installation without any tools.
   if you are interested in the distribution-grip deads component for ADSS or OPGW optical cables in our lines,you can feel free to get in touch with us asap.our website:powtech.en.made-in-china.com
 you can send us



Model	Guy Wire (mm)	Length (mm)	Guy Wire (mm2)	Weight (kg)	Color code
NL-25/G	6.6	635	25	0.2	Yellow
NL-35/G	7.65~7.95	711	35	0.3	Black
NL-50/G	8.95~9.30	901	50	0.5	Orange
NL-70/G	10.82~11.10	1016	70	0.8	Green
NL-95/G	12.5	1333	95	1.7	Orange
NL-100/G	13.0	1333	100	1.7	Yellow
NL-120/G	14.0	1460	120	2.2	Yellow

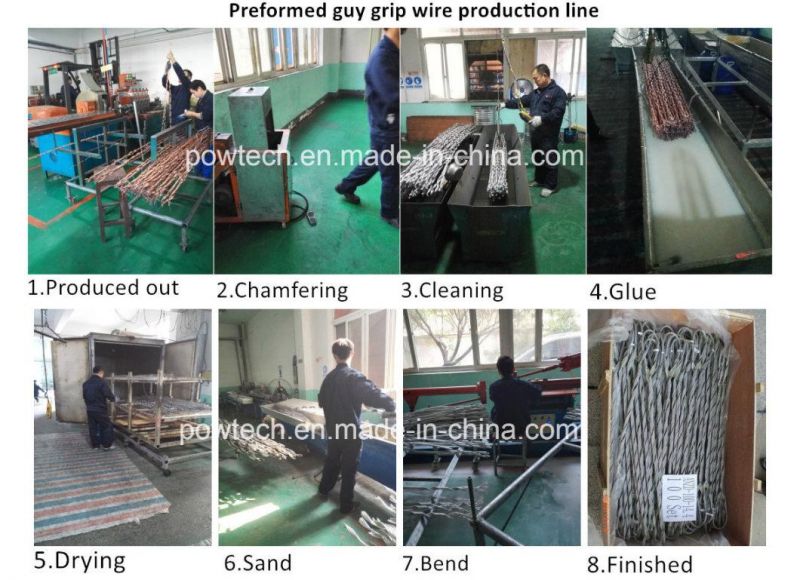

Production process:


Certificates:
