China Malleable Iron Insulated Grounding Bushing for IMC/Rigid Conduit

TOPELE ENTERPRISE CO., LTD.
  • Color：Silver
  • IP Rating：IP66
  • Surface Treatment：Galvanised
  • Application：Used with Locknut to Terminate Threaded Conduit
  • Material：Malleable Iron
  • Certification：ISO

Base Info

  • Model NO.：IGB
  • Type：Insulated and with Lug
  • Thread：NPT
  • Transport Package：Carton Box + Packing Belt
  • Trademark：TOPELE
  • Origin：China
  • HS Code：8547901000
  • Production Capacity：100000 PCS Per Month

Description

Product :Grounding Conduit BushingMaterial:Malleable IronFinish:GalvanizedType:Insulated and with lugThread:NPTSize:1/2" to 4"Usage:Use to provide a means of grounding Rigid or IMC Conduit,Lug provided for bonding jumper to a neutral bus bar

Specifications:
 China Malleable Iron Insulated Grounding Bushing for IMC/Rigid ConduitItem No.Trade SizeDin A(Inch)Dim B(Inch)IGB-501/2''1.2600.787IGB-753/4''1.4810.986IGB-1001''1.8001.262IGB-1251-1/4''2.4051.595IGB-1501-1/2''2.5001.832IGB-2002''3.0282.325IGB-2502-1/2''3.6002.778IGB-3003''4.1623.466IGB-3503-1/2''4.7483.898IGB-4004''5.2984.450
TOPELE Malleable Iron Insulated Grounding Bushingis designed to ground wires in threaded IMC conduit or Rigid Metal Conduit and terminate those steel conduits to a box or enclosure. The insulated throat provides a protection for wires or cables when pulling. The insulating liner material is rated at 150 degree Celsius.The insulated throat grounding bushing in malleable iron construction ensures an excellent mechanical protection. This ground bushing is suitable for indoor and outdoor applications.

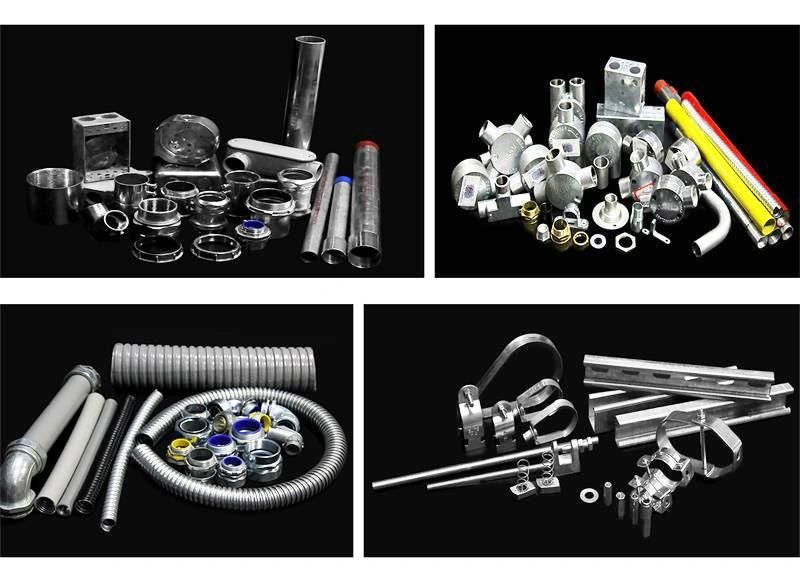

A Range Of Products:
