Waterproof Nylon Cable Gland Pg, M Type PA66
Wenzhou Zhechi Electric Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Surface Treatment：Polishing
- Color：Black,Gray,Other Color Available Upon Request
- IP Rating：IP68
- Material：Nylon
- Type：Straight Head
Base Info
- Model NO.：PG13.5
- MOQ：1000PCS
- Fire Proof Level：UL94V-2
- Cable Range：6-12.5mm
- Thread O.D：20.4
- Feature：Seal Part Hold Cable Firmly
- Thread Length：15mm
- Transport Package：Common Packing: Inner Plastic Bag + Export Carto
- Specification：PG9, PG11, M8*1.25
- Trademark：ZC
- Origin：China
- HS Code：39174000
- Production Capacity：500000PCS,Year
Description
Thread:
PG,Metric,G,and NPT thread
Materials:
ULapproved Nylon PA66(Flammability UL 94V-2) for A.C.E parts,(Accept to make flammability UL 94V-0); EPDM rubber for B.D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).
Protection degree:
IP68
Working temperature:
-40ºC to 100ºC
Features:

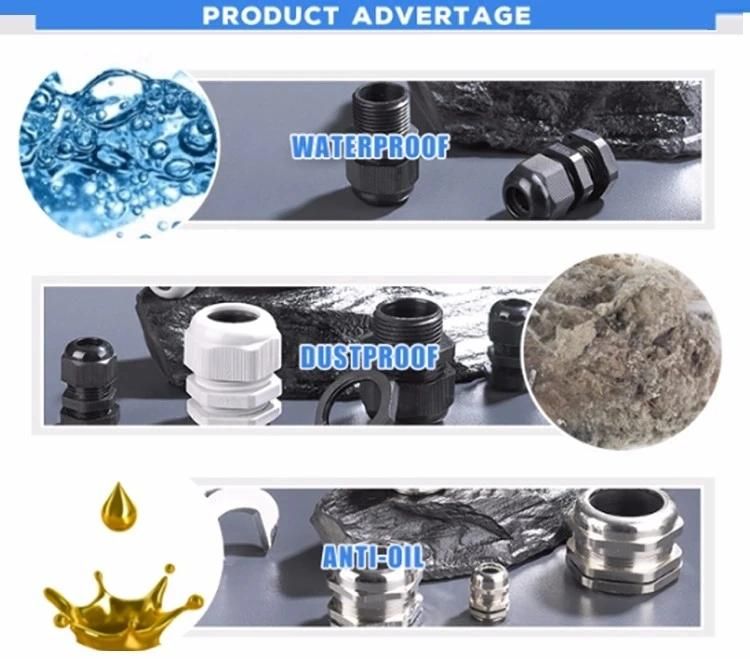

The claws and seals of excellent design, sealing nut have a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water,weak acid, alcohol, oil, grease and common solvency.
Colours:
Black(RAL9005),Gray(RAL7035),other color available upon request

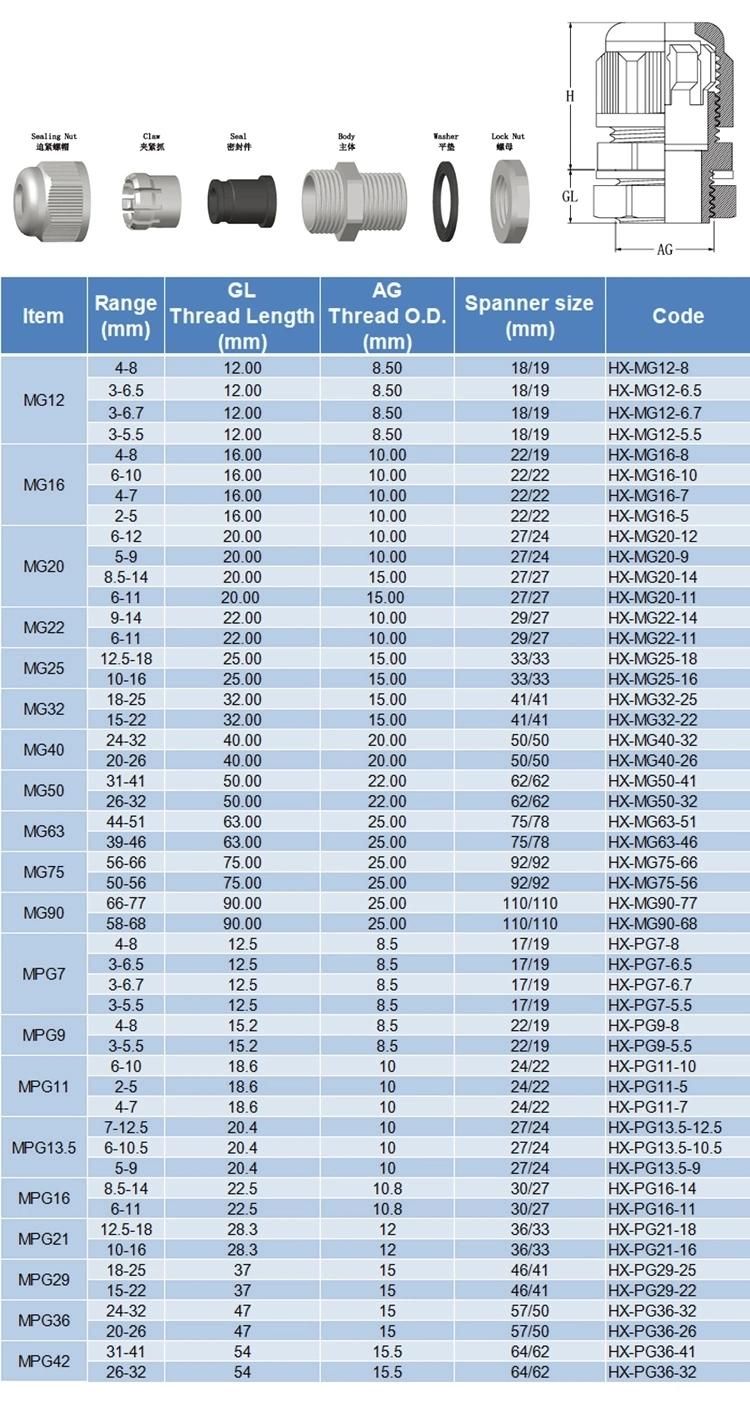

Specification:
