FTTH Network Fast Assembly Connectors Sc APC Quick Connectors
Qingdao Powtech Electronics Co., Ltd.- Name：Fast Connector
- Length：6.1cm
- Color：Blue and Green
- Transport Package：Export Packing
- Specification：CE, ISO9001
- Trademark：POWTECH
Base Info
- Model NO.：FC
- Origin：China
- HS Code：85044020
- Production Capacity：10000PCS,Month
Description
Must meet the standard
TIA/EIA 604-3
Operating Wavelength
1260nm-1650nm Insertion
Lost by insertion
£/0.2dB/ < Max. < 0.5dB
Lost by Return
> 60dB
Operating Temperature
-40 a +80
Resistance
1000 reconnection / ± 0.1dB
Tension
(3Kg loading)
250um & 900um (0.75kg/ £0.3dB load)
Cable pull
1.6 mm £ 0.20dB @ 40N
2.0 mm £ 0.20dB @ 80 N
Moisture Resistance
< 2.0dB @ +60C @ 95%
Radius of the end of the splint (mm)
5 ~ 12
Fiber cutting
Less than 100
Fiber extrusion
Less than 100
Displacement
Less than 50
Feature:
1.quickly assembly connetor
2.high return loss,low insert
3.cost effective portable
4.install quickly
5.reliable and superior optical performance
Application:
1.Patch panels
2.Distribution frames
3.Maintenance or emergency restoration of fiber networks
4.FTTH Outlets
5.Connection at the desk for LAN environments

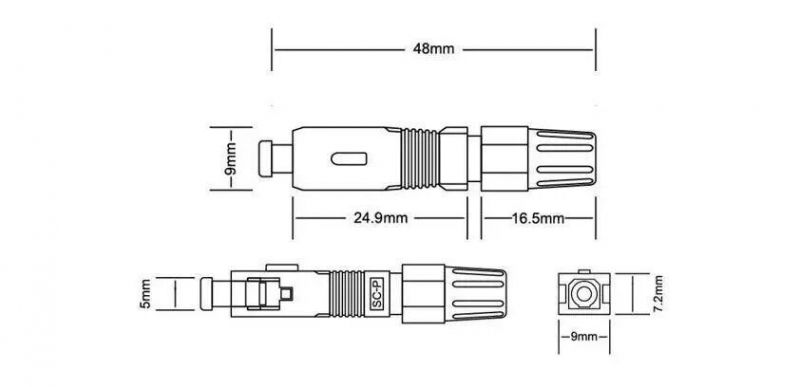

Structure diagram:

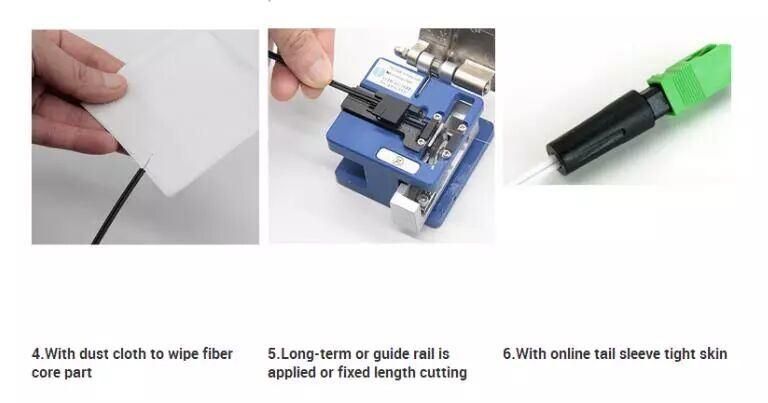

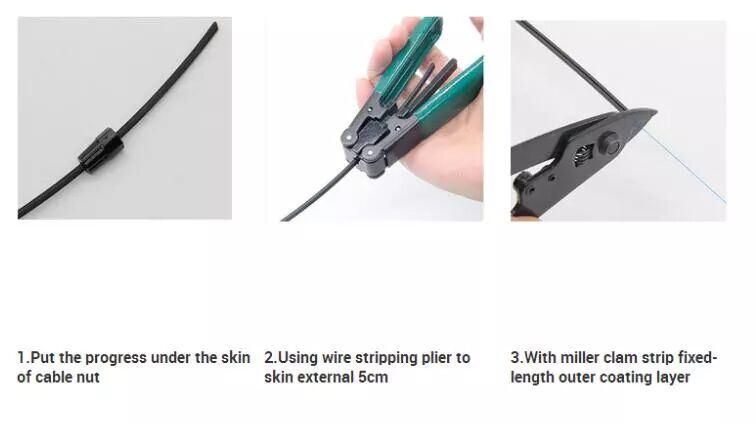

Installation:
