QS1500 Automotive Wiring Harness Soft Double-Wall Heat Shrinkable Tube

Union Polymer Material Co., Ltd.

Certification：RoHS, ISO
Color：Black
IP Rating：IP68
Usage：Electric Wire
Material：PE
Type：Heat Shrinkable

Base Info

Model NO.：A1-QS1500
Transport Package：Carton
Specification：4mm-18.3mm
Trademark：UPM
Origin：China
HS Code：3917390000

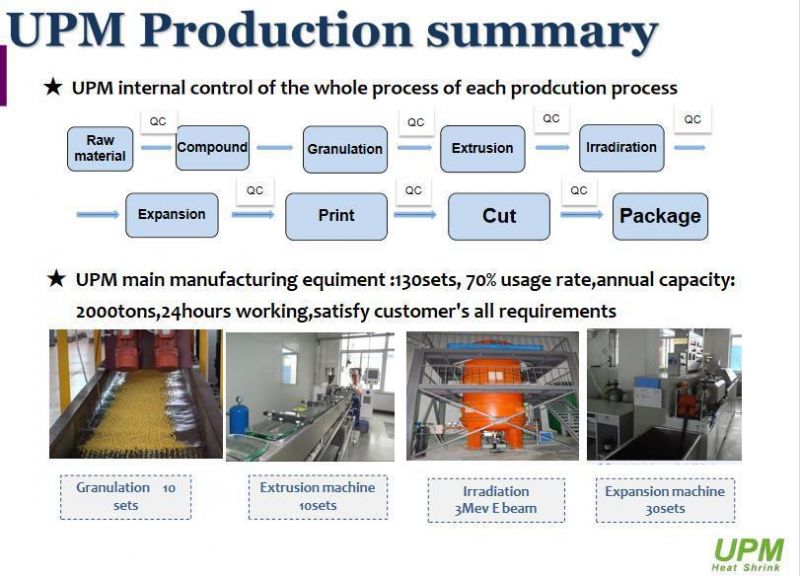

Production Capacity：2000tons

Description

After shrink(mm)A1-QS1500Diameter(Min.)Diameter(Max.)Wall thickness(Reference)Adhesive W.T.(reference)66.0 1.25 1.20 0.56 88.0 1.65 1.60 0.76 1111.5 2.40 2.00 1.02 1414.0 3.00 2.20 1.15 1818.0 4.45 2.40 1.37 2828.0 7.60 3.50 1.57 Cross Reference Tyco-Raychem: QS1500 QS1500 Automotive Wiring Harness Soft Double-Wall Heat Shrinkable Tube

QS1500 Automotive Wiring Harness Soft Double-Wall Heat Shrinkable Tube
