1 / 4 " Preformed Guy Dead Grip Ends for Power Fittings with Cheap Price
Qingdao Powtech Electronics Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Color：White
- Fire Rating：High
- Size：Customized
- Material：Aluminium Clad Steel
- Type：Self-Locking Cable Tie
Base Info
- Model NO.：NL- 25 , G
- Name：1 , 4 " Preformed Guy Dead Grip Ends for Power Fit
- Transport Package：50PCS,Carton
- Specification：CE, RoHS, SGS, ISO
- Trademark：Powtech
- Origin：China
- HS Code：73269000
- Production Capacity：1000PCS,Day
Description
Basic Info.
Model NO. NL- 25 / G Name 1 / 4 " Preformed Guy Dead Grip Ends for Power Fit Transport Package 50PCS/Carton Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 73269000 Production Capacity 1000PCS/DayProduct Description
1 / 4 " Preformed Guy dead grip ends for power fittings with cheap price
Description:
The guy-grip dead end clamp for conductor can be applied to bear strain on overhead bared or
insulated covered conductors in transmission & distribution lines. It's the substitutes of the traditional dead end clamps such as bolted type, compression type and wedge type.

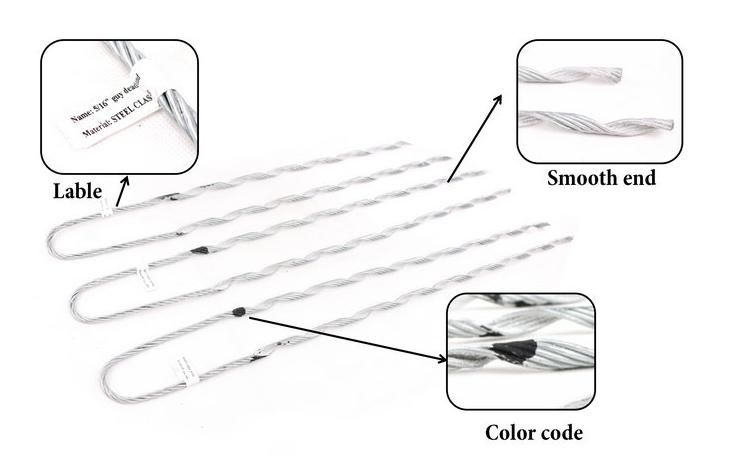

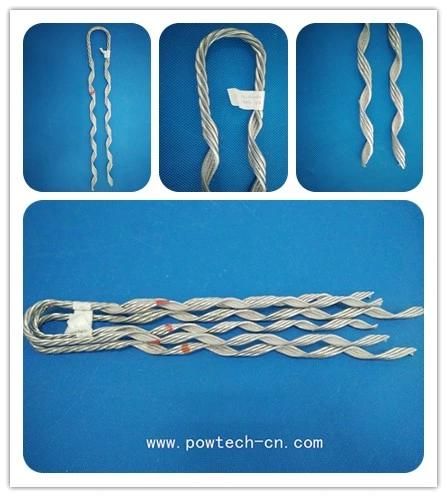

Detailed Images:
Technical data sheet:
Cat. No. | Guy Wire (mm) | Applicable conductor size (Guy strand, mm2) | Length(mm ) | Weight (kg) | Color Code |
NL-25/G | 6.60 | 25 | 635 | 0.2 | Yellow |
NL-35/G | 7.65~7.95 | 35 | 711 | 0.3 | Black |
NL-50/G | 8.95~9.30 | 50 | 901 | 0.5 | Orange |
NL-70/G | 10.82~11.10 | 70 | 1016 | 0.8 | Green |
NL-95/G | 12.50 | 95 | 1333 | 1.7 | Orange |
NL-100/G | 13.00 | 100 | 1333 | 1.7 | Blue |
NL-120/G | 14.00 | 120 | 1460 | 2.2 | Yellow |
