New Design Suspension Clamp for ADSS Cable
Qingdao Powtech Electronics Co., Ltd.- Certification：RoHS, ISO, CE
- Color：Sliver
- Surface Treatment：Galvanised
- Usage：Electrical Appliance
- Material：Aluminum Alloy
- Name：Suspension Clamp for ADSS Cable
Base Info
- Model NO.：AQXM
- Transport Package：Wooden Packing
- Specification：CE
- Trademark：Powtech
- Origin：China
- HS Code：73089000
- Production Capacity：10000PCS,Month
Description
Technical data sheet:
Breaking force:40kN
Recommended Span Length:200m
Model | Cable diameter | Armor Rods (mm) | Weight(kg) |
AQXM-200-12.0 | 11.0~12.0 | 0 | 1.1 |
Remarks:New type suspension clamp for ADSS cable 200m span are sold as an assembly,including a housing,a Rubber Insert and an Anchor Shackle.
Applications:

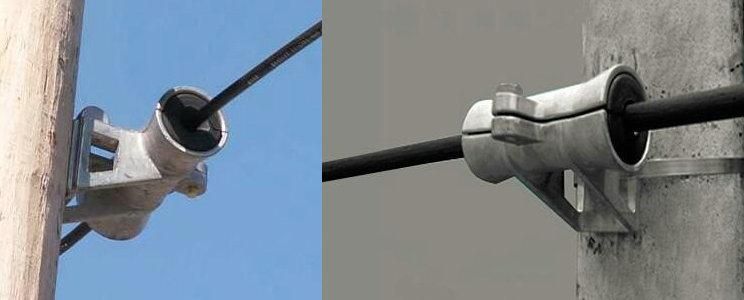

The suspension sets is designed to gently, but firmly support ADSS cable. The AQXM suspension setfeatures the following: band mount design, hinged keeper, single-bolt clamping, and stackability for multi-cable installations.
