• Model NO.：1,2", 7,8", 1 1,4", 1 5,8"
• Stacks：Single, Double, Triple, Fourfold Stack
• Transport Package：PVC Bag, Carton
• Specification：QC
• Trademark：TOTAL
• Origin：CHINA
• Production Capacity：1000000PCS,Month

Part No.Description660301A1/2"x1 Single-stack660301B1/2"x2 Double-stack660301C1/2"x3 Triple-stack660301D7/8"x1 Single-stack660301E7/8"x2 Double-stack660301F7/8"x3 Triple-stack660301G1 1/4"x1 Single-stack660301H1 1/4"x2 Double-stack660301I1 1/4"x3 Triple-stack660301J1 5/8"x1 Single-stack660301K1 5/8"x2 Double-stack660301L1 5/8"x3 Triple-stack

Stainless Steel Feeder Clamp (Two Hole Type)Part No.Description660303A1/2"x1 Single-stack660303B1/2"x2 Double-stack660303C1/2"x3 Triple-stack660303D7/8"x1 Single-stack660303E7/8"x2 Double-stack660303F7/8"x3 Triple-stack660303G1 1/4"x1 Single-stack660303H1 1/4"x2 Double-stack660303I1 1/4"x3 Triple-stack660303J1 5/8"x1 Single-stack660303K1 5/8"x2 Double-stack660303L1 5/8"x3 Triple-stack

Stainless Steel Feeder Clamp (Two Hole Type2)Part No.Description660307A1/2"x1 Single-stack660307B1/2"x2 Double-stack660307C1/2"x3 Triple-stack660307D7/8"x1 Single-stack660307E7/8"x2 Double-stack660307F7/8"x3 Triple-stack660307G1 1/4"x1 Single-stack660307H1 1/4"x2 Double-stack660307I1 1/4"x3 Triple-stack660307J1 5/8"x1 Single-stack660307K1 5/8"x2 Double-stack660307L1 5/8"x3 Triple-stack

Stainless Steel Feeder Clamp (Two Hole Type3)Part No.Description660310A1/2"x1 Single-stack660310B1/2"x2 Double-stack660310C1/2"x3 Triple-stack660310D7/8"x1 Single-stack660310E7/8"x2 Double-stack660310F7/8"x3 Triple-stack660310G1 1/4"x1 Single-stack660307H1 1/4"x2 Double-stack660310I1 1/4"x3 Triple-stack660310J1 5/8"x1 Single-stack660310K1 5/8"x2 Double-stack660310L1 5/8"x3 Triple-stack

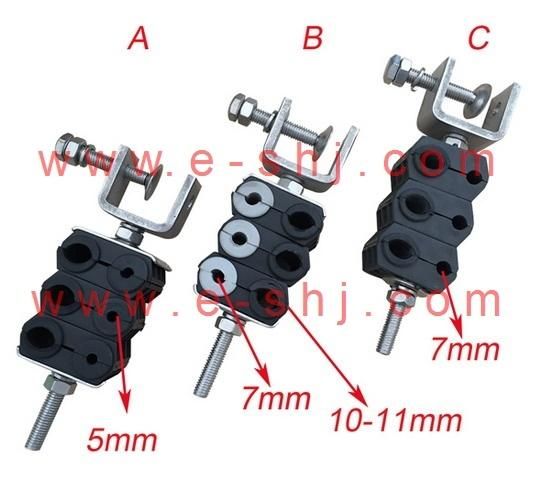

Fiber sheath type cable clampPart No.Description660309C304N1Single-stack660309C304N2Double-stack660309C304N3Triple-stack

Optical fiber and power cable clampPart No.Description660307C304N1Single-stack660307C304N2Double-stack660307C304N3Triple-stack

Optical fiber and power cable clampPart No.Description660301C304N1Single-stack660301C304N2Double-stack660301C304N3Triple-stack

Stainless Steel Feeder Clamp (Anchor Ear Type)Part No.Description660304A1/2"x1 Single-stack660304B7/8"x1 Single-stack660304C1 1/4"x1 Single-stack660304D1 5/8"x1 Single-stack660304E1/2"x2 Double-stack660304F7/8"x2 Double-stack660304G1 1/4"x2 Double-stack660304H1 5/8"x2 Double-stack

Microwave Feeder ClampPart No.Description660305ABT-60660305BBT-60X660305CBT-80660305DBT-80X660305EBT-34

Plastic Feeder ClampPart No.Description660306A1/2" ΦD=13.5MM660306B1/2" ΦD=16.5MM660306C7/8" ΦD=24.5MM660306D7/8" ΦD=27.5MM

Feeder Clamp (Hook Type)Part No.Description660308A1/2"x1 Single-stack660308B1/2"x2 Double-stack660308C1/2"x3 Triple-stack660308D7/8"x1 Single-stack660308E7/8"x2 Double-stack660308F7/8"x3 Triple-stack660308G1 1/4"x1 Single-stack660308H1 1/4"x2 Double-stack660308I1 1/4"x3 Triple-stack660308J1 5/8"x1 Single-stack660308K1 5/8"x2 Double-stack660308L1 5/8"x3 Triple-stack
Stackable Snap In Hangers
Stackable Snap In Hangers with 3/4" through hole, it can be used for 1/2", 7/8", 1-1/4" and 1-5/8" coaxial cable.
Material: Spring steelPart No.DescriptionT4760541/2"T4764147/8"T4764151-1/4"T4760551-5/8"

Standoff Adapter
Standoff Adapter with three 3/4" through hole
Material: stainless steel 304Part No.DescriptionT660309A3/4"

Snap In Standoff brackets
Snap In Standoff brackets with 3/4" through hole, fitting assemblies: washer ,screw and locknut
Material: Stainless steel 304Part No.DescriptionT660309B3/4"


Snap In Standoff brackets
Standoff Adapter with three 3/8" through hole
Material: stainless steel 304Part No.DescriptionT660309C3/8"

Rubber Grommets
Standoff Adapter with 3/8", 1/2" or 5/8" through hole
Material: RubberPart No.DescriptionT4652511/2"T4652523/8"T4652535/8"

Hose Clamp
American type hose clamp
Band Width: 1/2" & 9/16", 12.7mm & 14.2mm
Band Thickness: 0.6mm, 0.7mm
Screw: 5/16" hex head, slotted screw ,200/300/400series stainless steel: 430, 201, 301, 304
Band: 200/300 series stainless steel (430, 201, 301, 304)
Housing: 200/300 series stainless steel (430, 201, 301, 304)Part No.Dia Max (Inch)Dia Min - Dia Max (mm)6605029K1/411-206605030K7/813-236605031K1"15-256605032K1-1/1614-276605033K1-1/418-326605034K1-3/823-356605035K1-1/221-386605036K1-5/819-426605037K1-3/419-446605038K1-7/820-476605039K232-516605040K2-1/438-576605041K2-5/1638-596605042K2-1/240-646605043K2-3/446-706605044K2-7/851-736605045K357-766605046K3-1/467-836605047K3-1/265-896605048K3-3/472-956605049K478-1016605050K4-1/484-1086605051K4-5/1692-1106605052K4-1/291-1146605053K4-3/4105-1216605054K5105-1276605055K5-1/2118-1406605056K6130-1526605057K6-1/2141-1656605058K7156-1786605060K8165-203

Outdoor Grounding Kits( Without Glue Type/ Framework type)
The cable length: 0.6m, 0.8m, 1m, or you can tell us the length you need and we do according to your request.Part No.Description660401Aoutdoor grounding kit for 1/4" cable660401Boutdoor grounding kit for 1/2" cable660401Coutdoor grounding kit for 7/8" cable660401Doutdoor grounding kit for 1 1/4" cable660401Eoutdoor grounding kit for 1 5/8"cable

Outdoor Grounding Kits( Spring type/ Ring Buckle Type)
For this one, you can choose if ordering rubber mastic tape and electrical tape.
The cable length: 0.6m, 0.8m, 1m, or you can tell us the length you need and we do according to your request.Part No.Description660402Aoutdoor grounding kit for 1/4" cable660402Boutdoor grounding kit for 1/2" cable660402Coutdoor grounding kit for 7/8" cable660402Doutdoor grounding kit for 1 1/4" cable660402Eoutdoor grounding kit for 1 5/8"cable

Outdoor Grounding Kits( Copper Strap type)
For this one, you can choose if ordering rubber mastic tape and electrical tape.
The cable length: 0.6m, 0.8m, 1m, or you can tell us the length you need and we do according to your request.Part No.Description660403Aoutdoor grounding kit for 1/4" cable660403Boutdoor grounding kit for 1/2" cable660403Coutdoor grounding kit for 7/8" cable660403Doutdoor grounding kit for 1 1/4" cable660403Eoutdoor grounding kit for 1 5/8"cable

Indoor Grounding kitPart No.Description660405Aindoor grounding kit for 7/8" cable660405Bindoor grounding kit for 1 1/4" cable660405Cindoor grounding kit for 1 5/8"cable

Hoisting gripPart No.Description660406AHoisting grip  for 7/8" cable660406BHoisting grip for 1 1/4" cable660406CHoisting grip for 1 5/8" cable

Specification General:
Components:
Clamp ----  Copper & Stainless Steel
Connection ---- Copper
Grounding Cable ----0.6~0.8m grounding cable
Bolt, nut ---- Stainless Steel
Clip ---- Stainless Steel
Electrical Speification:
Current ---- 8/20μS≥70KA
Voltage ---- 50Hz 30KV
 Resistance ---- ≤4Ω
Mechanical Specification:
Stainless Steel ---- velvet , no burr, crack and indention.
Rubber ---- Clear Surface, no dilapidation and bubble.
Grounding Cable ---- even insulation, no crack or aging.
Screw, blot, nut ---- Clear, no crack and rust mark.
Clip ---- Stainless steel.
Remark:Easy installation and good appearance

Copper Grounding Bar Part No.Description660601Acopper grounding bar 4×40×125mm660601Bcopper grounding bar 4×40×400mm660601Ccopper grounding bar 4×40×100mm660601Dcopper grounding bar 6×60×300mm660601Ecopper grounding bar 6×80×400mm660601Fcopper grounding bar 6×100×400mm660601Gcopper grounding bar 8×60×300mm660601Hcopper grounding bar 8×80×300mm660601Icopper grounding bar 8×80×300mm660601Jcopper grounding bar 8×100×400mm

Indoor Grounding AccessoriesPart No.Description660602grounding bar
13×17×175mm

CompntentsNo.DescriptionQtyRemark660603AInsulation cushion4rigid PVC660603BHexagonal bolt815/Stainless Steel M10*15660603CLock washer4Stainless Steel M10660603DCopper1Copper Coated with Nickel660603Esupport2Stainless Steel
