144 Cores 4u Rack Mount Fiber Optic Patch Panel
HNK Optic Equipment Co., LIMITED- Connector：Sc, LC, FC, St
- Port Number：144 Cores
- 4u Size：4u(H) X 19”(W) X 350mm(D)
- Material：1.2mm Cold Rolled Steel
- Material Coating：Powder
- Fiber Cores：144 Cores (4u)
Base Info
- Model NO.：RPP-HP
- Transport Package：Foam Board,Bag +Carton
- Specification：RoHS
- Trademark：HNK or OEM
- Origin：Shenzhen, China
- HS Code：85371090
- Production Capacity：1000PCS,Month
Description
AdaptorSize(H×W×D )mm 4U(H) x 19"(W) x 350mm(D) Multimode Insertion Loss 0.2dB Maximum Material 1.2mm Cold Rolled Steel Singlemode Insertion Loss 0.2dB Maximum Material Coating Powder Mating durability >500 Mating Cycles Humidity 0-90%, non-condensing Multimode Adaptor Wavelength 850 to 1300nm Operating Temperature -10°C to 60°C Singlemode Adaptor Wavelength 1310 to 1550nm Storage Temperature -40°C to 85°C ROHS Compliant Yes

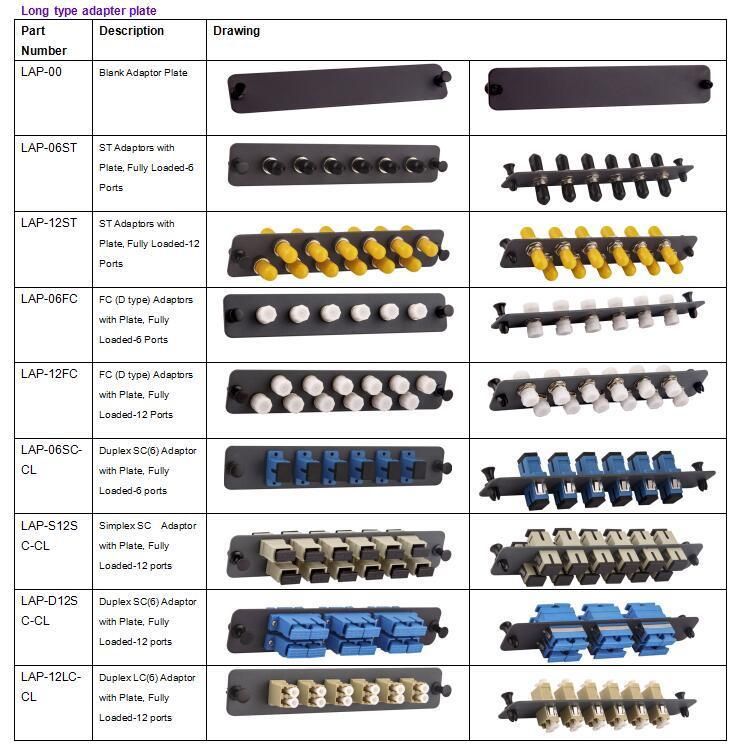

Plate list:
XX patch panel Type WPP=wall mount patch panel, RPP=rack mount patch panel AA Product ID HP BB Port Capacity 012=12 Ports, 018=18 Ports, 024=24 Ports, 036=36 Ports C configuration E=only patch pane, L=With Adapter Panels,
F=With Adapter Panels and Pigtails D Connector Type FP,SP,SA,LP E Fiber Type OM1=62.5/125 OM1, OM2=50/125 OM2, OM3=50/125 OM3,
OM4=50/125 OM4, G652D=9/125 G652D, G657A=9/125 G657A F Fiber Length 05=0.5M, 10=1M, 20=2M
Connector Type CodeCode Connector Code Connector Code Connector Code Connector FP FC/PC FA FC/APC LP LC/PC LA LC/APC SP SC/PC SA SC/APC TP ST/PC TA ST/APC MU MU DN DIN MT MTRJ E2 E2000
Ordering SamplePart Number Description RPP-HP-E 4U RPP-HP Type Rack Mount Patch Panel without adaptor plate and pigtail. RPP-HP-72FSPG652D15 4U 72 Fibers RPP-HP Type Rack Mount Patch Panel With Simplex
SC/PC SM Adapter and 1.5M Singlemode G652D SC/PC Pigtail.
