24 Fibers Distribution ODF Wall Mount Patch Panel (WPP-NW)
HNK Optic Equipment Co., LIMITED- Certification:RoHS
- Connector:Sc,LC,Fd,St
- Port Number:24

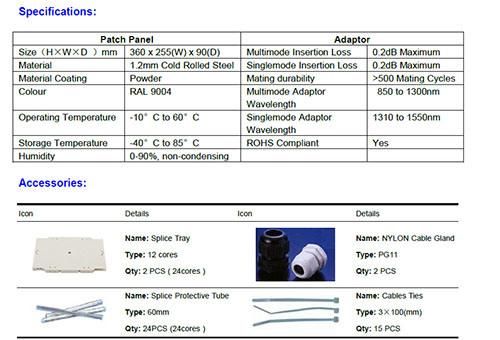

- Size(mm):360(W) X 255(H) X 90(D)
- Material Coating:Powder
- Material:1.2mm Cold Rolled Steel
Base Info
- Model NO.:WPP-NW
- Fiber Cores:24 Cores
- Wiring Devices:ODF
- Transport Package:Foam Board,Bag +Carton
- Specification:RoHS
- Trademark:HNK or OEM
- Origin:Shenzhen, China
- HS Code:85389000
- Production Capacity:1000PCS,Month
Description
Basic Info.
Model NO. WPP-NW Fiber Cores 24 Cores Wiring Devices ODF Transport Package Foam Board/Bag +Carton Specification RoHS Trademark HNK or OEM Origin Shenzhen, China HS Code 85389000 Production Capacity 1000PCS/MonthProduct Description
The OTB-01B24 Fiber Wall Mount Box is design to provide a wall-mounted, secure, fiber cable terminal for use in small fiber networks. The wall box contains provisions for splicing and terminating. They featurea unique design and many builtin features such as numerous cable tie points within the panels, ability
to accept hasp-style locks, and acceptance of cable clamps at each corner. The wall-mount box is
available with 12 or 24 positions (termination/splice).
The OTB01B24 Fiber Wall Mount Box can terminate up to 24 fibers for ST,SC or FC connectors or 48 fibers
with LC connectors.
Certification and Compliance:
. TIA/EIA 568.C, ISO/IEC 11801, ENS50173, IEC60304, IEC61754, EN297-1
. CEA/EIA-310-E (Cabinets, Racks, Panels and Associated Equipment standard.)
. ANSI/TIA/EIA-606-A (Administration Standard for Telecommunications Infrastructure. )
. GR-449-CORE (Generic Requirements and Design Consideration for Fiber Distributing Frames. )
. UL 94 (Tests for Flammability of Plastic Material for Parts in Devices and Appliances. )
. RoHS (Directive on Restriction of Hazardous Substances. )
Features:
. Providing protective connections for optical fibers and distribution pigtails.
. Insulating fiber metal components from fiber-end shells and conveniently leading out grounding wires.
. Providing spaces for placing fiber terminals and redundant fibers, thus making installation more convenient.

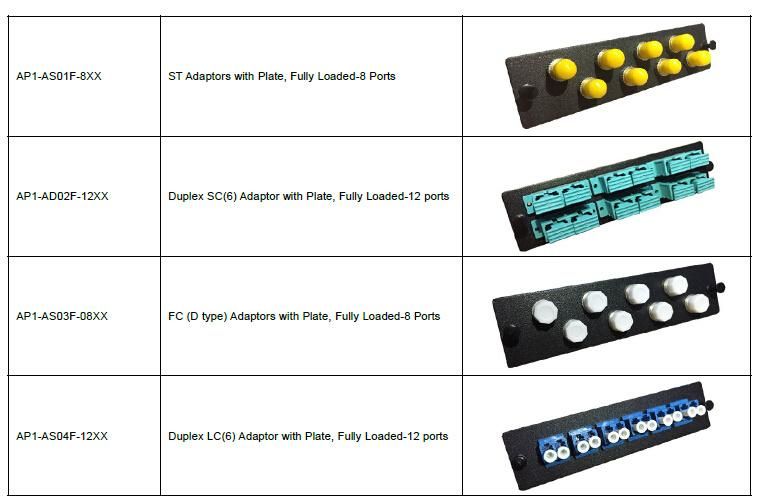

. 6-port ,8-port or 12-port adapter panel , FC, SC, ST, Double LC connector are available.
