Galvanized Steel Wire Mesh Basket Cable Tray
Yangzhong HaiTeng Fluorine Plastic Product Factory- Certification：CCC, CE
- Hole：Without Hole
- Feature：Antimagnetic, Easy Installation, Light Weight, Dustproof, Corrosion Resistance, Flexbile Maintance
- Surface Treatment：Electro Zinc Plating,HDG,Powder Coating
- Material：Stainless Steel, Aluminum Alloy, Galvanized Sheet
- Type：Tray
Base Info
- Model NO.：Cable Tray
- Powder Coating：>= 70 U
- Electro Zinc Thickness：>= 5 U
- Length：3000mm
- Widh：50-600mm
- Height：30-200mm
- Max Loading：50-200kgs
- Transport Package：Standard Export Packing
- Specification：Customized
- Trademark：HAITENG
- Origin：Yangzhong China
- HS Code：73089000
- Production Capacity：100000PCS,Year
Description

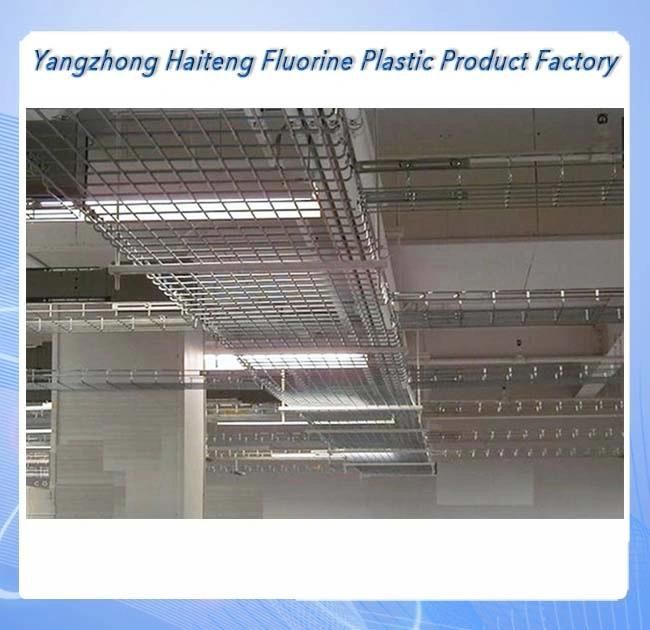

wire mesh cable tray
length
3000mm
width
500-600mm
height
30-200mm
diameter of the steel wire
3.5mm-6mm
surface treatment
Electro zinc plating for indoor usage
Powder coating for indoor usage (the color is optional)
Hot Dipped Galvanizing for outdoor usage and corrosive environment
Acid Washing or Electrolytic Polishing for stainless products.

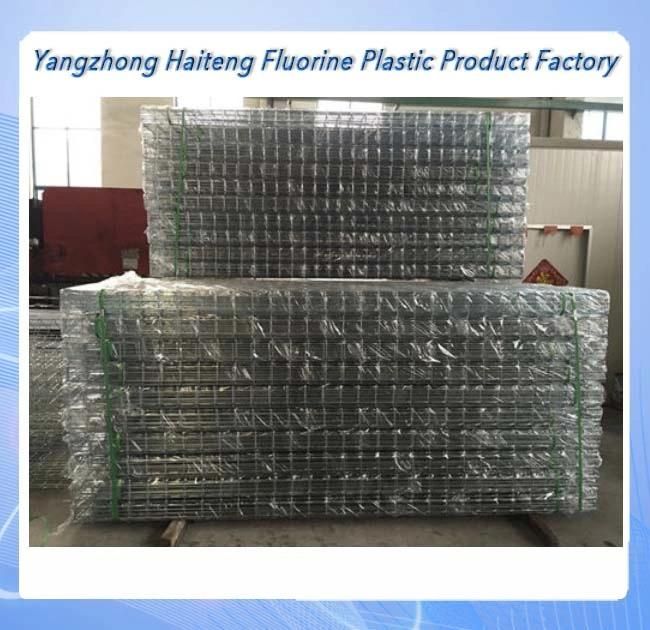

package
1.Double layers bubble film wrapped
2. bubble film wrapped thick cardboard.
3.Cartons for accessories of the wire mesh cable tray.
color
any customer point color
max loading
depends on the wire diameter and size of wire basket tray 50kg to 200kg
DETAILS
(1)Material of metal cable tray :
Middle carbon steel (Q235 in Chinese standard)
SS201,SS202,SS304, SS316 & SS316L
(2)Surface Finish for hdg metal slotted cable tray :
-Electro zinc plating for indoor usage
-Powder coating for indoor usage (the color is optional)
-Hot Dipped Galvanizing for outdoor usage and corrosive environment
-Acid Washing or Electrolytic Polishing for stainless products.
(3)Dimensions for m hdg metal slotted cable tray :
-Height: 30mm, 50mm, 100mm, 150mm,200mm or customize
-Widths: 50~800mm
-Length: 3000 mm
-Diameters of wires: 4mm,5mm,6mm.
