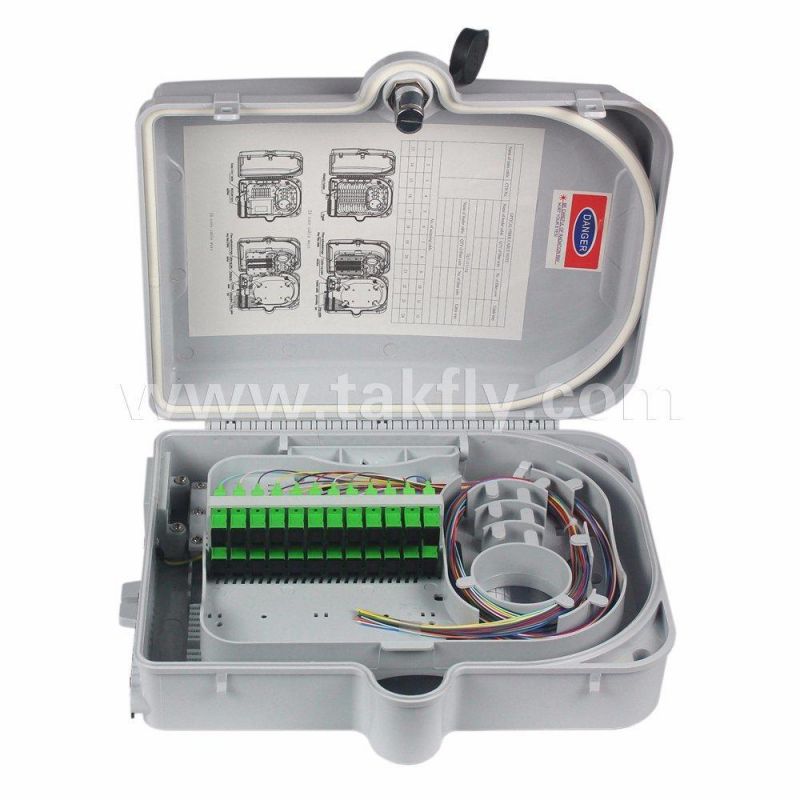

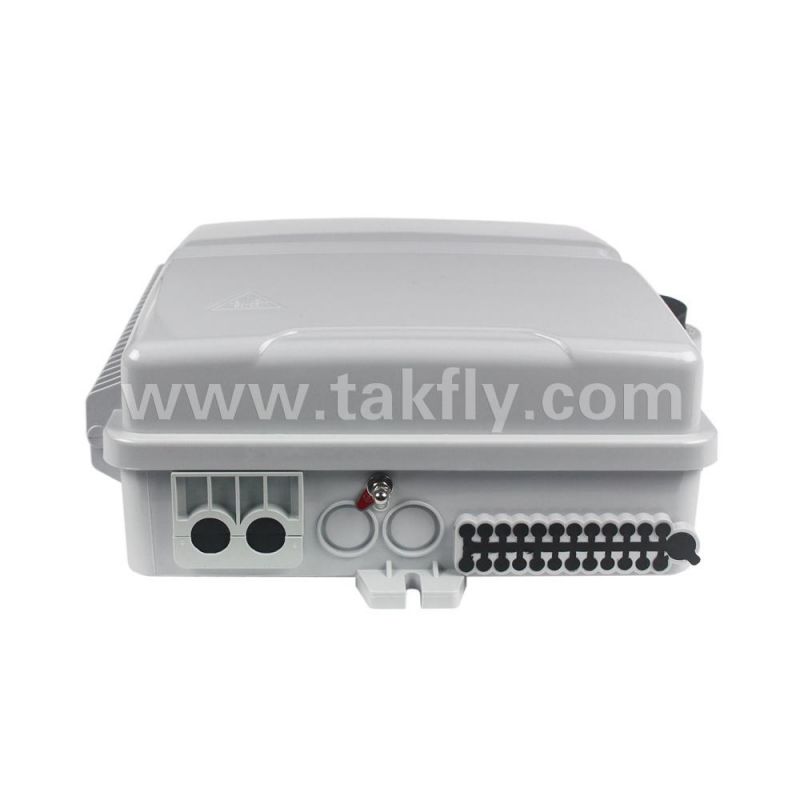

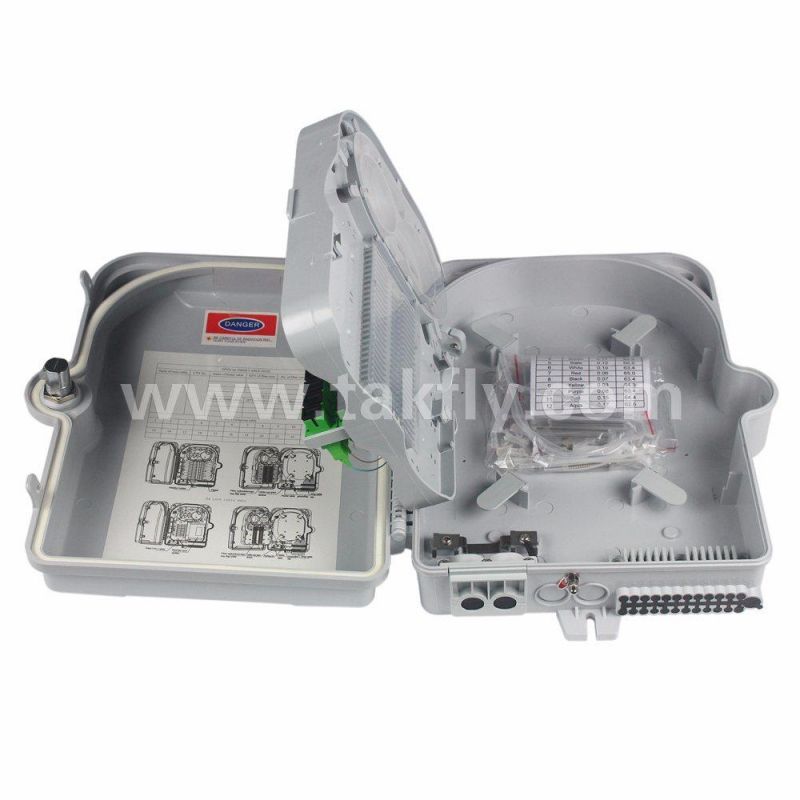

IP54 ABS+PC Material 24 Core Fiber Optic Terminal Box
Takfly Communications Co., Ltd.- Certification：RoHS, ISO, CE, FCC
- Cable：CAT5e
- Connector：RJ45
- Port Number：16~48
- Usage：Audio, Fiber
- Type：MDF
Base Info
- Model NO.：FTKS-1805-24A1
- Item Name：24 Core Fiber Optic Terminal Box
- Work Temperature：From Under 40 Degree to 85 Degree
- Atmospheric Pressure：From 70kpa to 106kpa
- Insert Loss：Less Than 0.2dB
- Upc Return Loss：More Than 50dB
- APC Return Loss：More Than 60dB
- Insert and Pull out Life：More Than 1000 Times
- Dimension：320*240*100mm
- Installation Dimension：190*298
- Material：PC+ABS
- Transport Package：Plastic Bag+Standard Carton
- Specification：320*240*100
- Trademark：TAKFLY,OEM
- Origin：Shenzhen, China
- Production Capacity：500, 0000
Description
Max CapacityInstallation Size(Pic 2) A*B*C(mm) Splitter Splice A*B(mm) FTKS-1805-24A1 Distribution Box 320*240*100 24 24 190*298
5.Installation
1.Wall-mounted installation
Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box to match up the holes and use bolt to fasten.
2.Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole .
6.Accessories
1. Users' Manual*1;
2. Key*1;
3. Accessories Bag * 1;
4. Easy pole ring*2,M6*20mm Bolt*2(Option);
7.Application
1.Telecommunication subscriber loop;
2.FTTH/FTTX/LAN/WAN

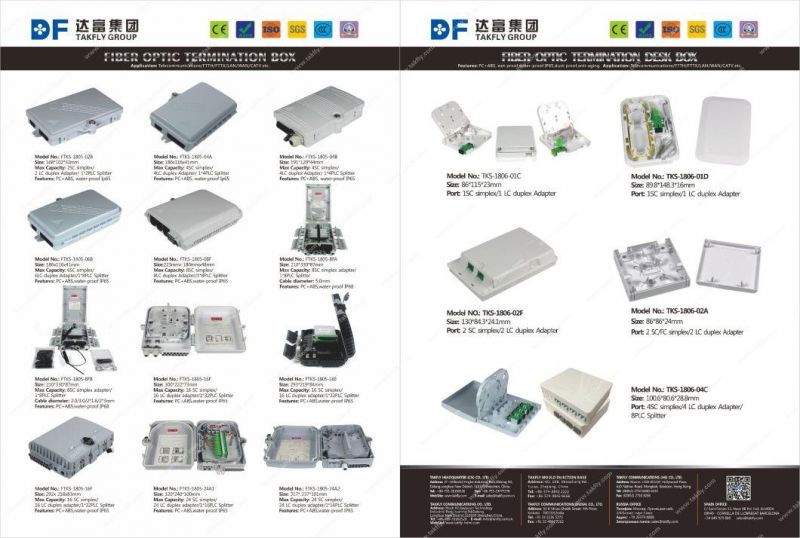

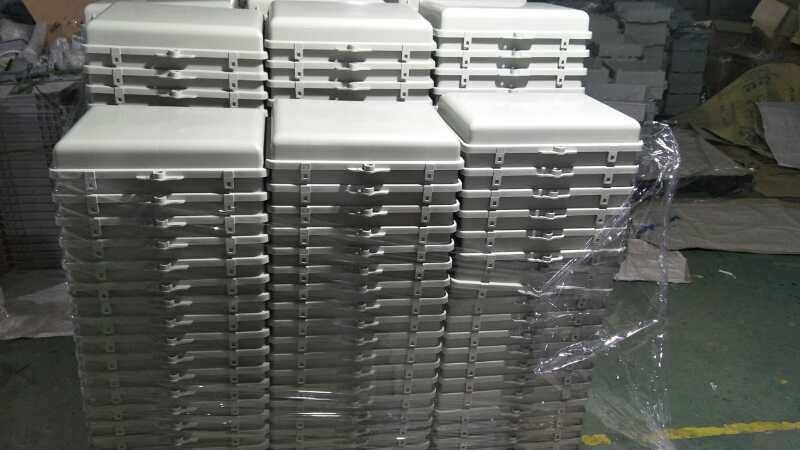

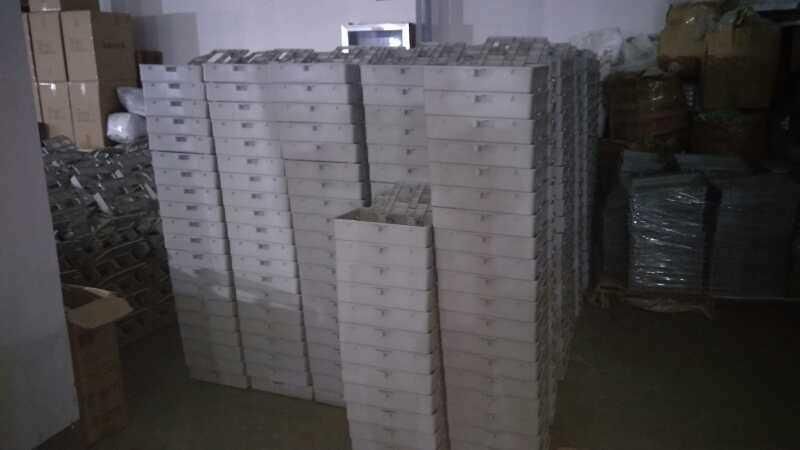

8.Item images and certifications:
9.Company Information
Takfly, established in 2000, has been manufacturing and exporting fiber cable, adapter, attenuator, connector, coupler, splitter, termination box, ODF, fiber instruments, media conceiver, switch, optical module, CWDM/DWDM, etc. Takfly's products have passed the management verification: ISO14001: 2004. and goods have passed RoHS, CE, FCC, REACH, EN50575, ISO9001, etc.
So far, Our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project. In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange and Ericsson. All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price item.
10.Why choose Takfly?
Service
1.Customer's logo: Acceptable;
2.General inspection on fixing before packing;
3.Third party inspection: Acceptable;
Quality Control
All products must go through five checks before manufacturing process;
1.Material incoming inspection before production;
2.Full check after every individual process finished;
3.Full check after production half-done;
4.Full check before packing;
5.Spots check after production packed before shipping;
Advantage
1.15 years experience in manufacturing fiber optic products;
2.Availability of R & D with more than 10 engineers;
3.Available of design and making mold with special molding house;
4.High quality, attractive price and fast delivery(2-7days);
5.OEM, ODM customer designs are also welcomed;
6.More than 200 workers;
7.Excellent service;
Delivery
1.Packing: Plastic bag& carton, Neutral packing or as your required;
2.Sample time: 1-3 days after confirm;
3.Order lead time: 2-7working days depend on quantity and products;
4.Shipping port: Shenzhen China or HK;
5.Shipping term: EXW or FOB;
Shipping
1.Once confirmed the order, and payment sent after finishing goods;
2.Goods will be sent within 7 days with the fast, reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc;
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility;
4.Please do not bid if you disagree with the shipping and handling charge;
Pls kindly note we not only wanna to seek an opportunity to work with you, but also regard you as our friend. All inquiries from your side will be warmly welcomed here. You can call at 0086 13537892205 to reach me.
