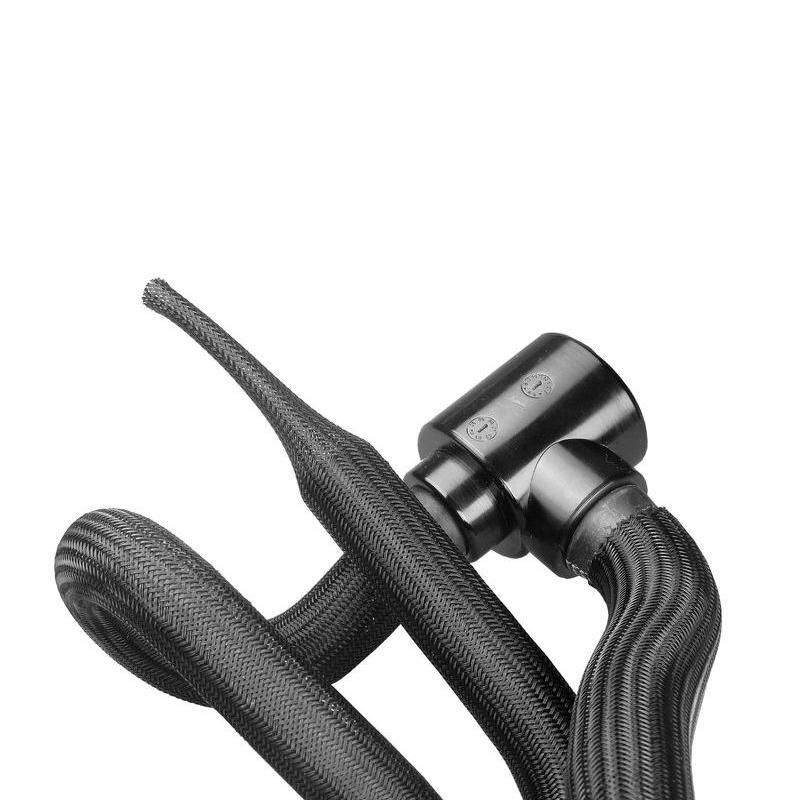

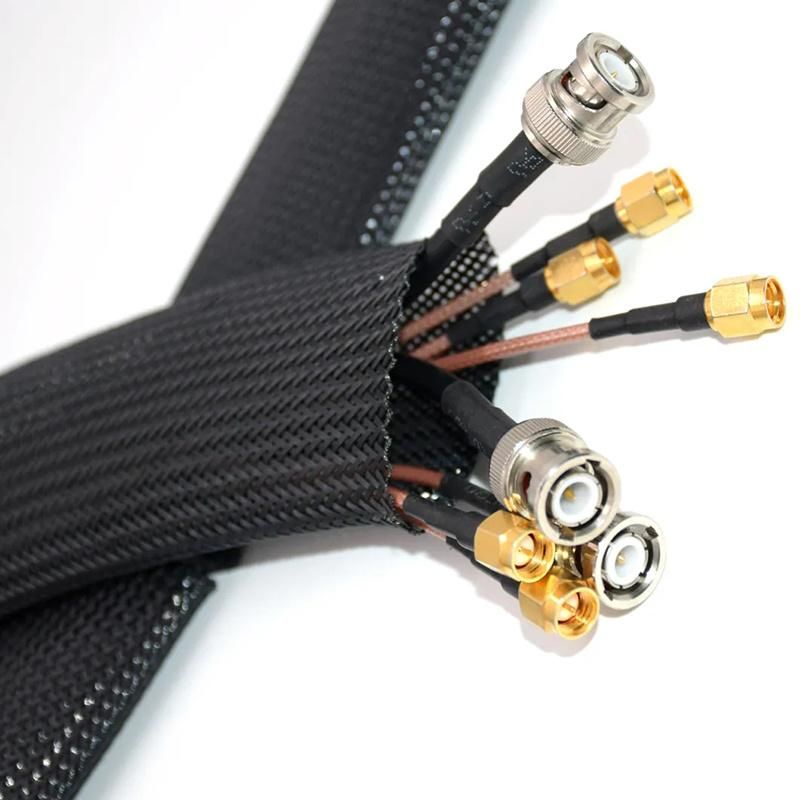

PPS Expandable Braided Wire Cable Loom Sleeving for Automotive Railways Aerospace Telecom
Xiamen QX Trade Co., Ltd.- Certification：CSA, UL, RoHS, ISO, CE
- Color：Black
- IP Rating：IP50
- Usage：Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable
- Material：PP
- Type：Pet Braided Sleeving
Base Info
- Model NO.：BS-PPS003
- Application：Insulators, Electrical Winding Insulation,
- Operating Range：-70°c±200°c
- Melt Point：285±10°c
- Flammability：UL 94V-0
- Standard Colour：Black
- Certificate：RoHS
- Cutting Tool：Hot Knife
- Size：3mm(1,8")~76mm(3′′)
- Available Color：64 Colors Available, Accorcing to Our Color Guide
- Sample Lead Time：as Usual 3-7 Working Days
- Production Lead Time：7~12days
- Transport Package：1000m500m, 350m, 300m, 250m, 200m, 150m, 100m,Rol.
- Specification：3mm-76mm Flat Width
- Trademark：EKO
- Origin：Fujian, China
- HS Code：4602900000
- Production Capacity：3000000 M,Month
Description
Expanded Range(mm) Packing (L) Flat width(mm) Min(I) Max.(O) M/spool BS-PPS003 3 1 6 1000 BS-PPS006 6 3 9 500 BS-PPS008 8 5 16 350 BS-PPS010 10 7 19 350 BS-PPS012 12 8 24 300 BS-PPS016 15 10 27 250 BS-PPS019 20 14 30 200 BS-PPS025 25 18 35 200 BS-PPS032 30 20 50 150 BS-PPS038 40 30 60 100 BS-PPS045 45 35 75 100 BS-PPS050 50 40 80 100 BS-PPS064 64 45 105 100 BS-PPS076 76 64 120 100
Product feacture
1. Economical & Quick and Easy To Install
2. Resists Gasoline, Chemicals & Cleaning Solvents
3. Expands Up to 150% of Initial Diameter
4. Cut Cleanly & Abrasion Resistant
5. Systematic Color Coding in Complex Cable and Wire Schemes
5. Continuous Operating Temperature of -70°C to 200°C
6. Melt Temperature of 285+(-)10°C
7. Halogen Free, UL, ROHS, REACH, CSA Approval.
Application
It is used mainly in the following fields:automotive,railways,aerospace,telecom and lilitary where are required high characteristics for flame-retardancy and high temperature resistance
